Why the size of the const char *arr is greater then const char arr[]?-CodePudding

I am using the xc32 compiler for the microchip pic32 microcontroller.

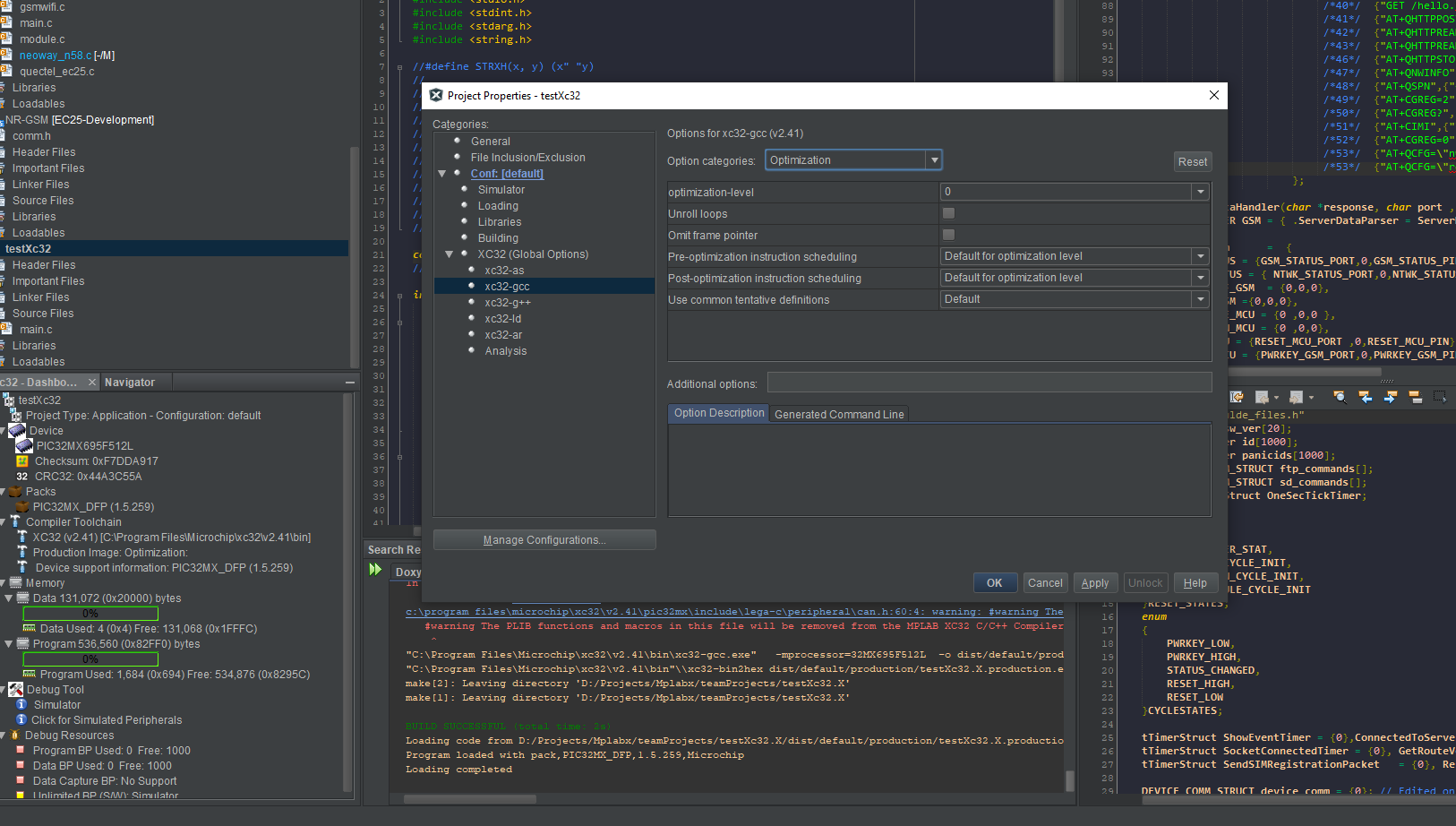

The program memory size (for the startup, vectors and etc..) is 1656 bytes.

#include <plib.h>
#include <stdio.h>
#include <stdint.h>
#include <stdarg.h>
#include <string.h>

//if I use const char array[] for string literal then the size of the program memory increased
//equal to the string length(only 12 bytes)

//const char array[] = "Hello World"; //program mem size(1668 0x684) bytes

//but in this case size increased 28 bytes
//const char *array = "Hello World";  //program mem size(1684 0x694) bytes



int main {

    while(1);
}

for optimization purposes:

which one is good(for both speed and size)?

#define STRLIT "HELLO WORLD"
const char *strlit = "HELLO WORLD";
const char arr[] = "HELLO WORLD"

CodePudding user response：

Generally, memory on a MCU is stored like this: What resides in the different memory types of a microcontroller? This means:

The string literal "HELLO WORLD" itself is very likely stored in a .rodata flash ROM section.
When you do const char array[] = "Hello World"; at file scope, the array variable should be allocated in .rodata. So there is no need to allocate the string literal or that would mean redundant allocation.
When you do const char *array then you declare a pointer and it it is not allocated in flash, but in the .data section of RAM. So this will mean RAM and flash consumption both. Please note that this pointer is read/write - you can assign it somewhere else but you can't change the pointed-at contents.

To allocate the pointer in flash ROM, you need to do const char* const array.

As for why you get "28 bytes" of something, I don't know. I haven't used this part but a brief research here claims that it might have Von Neumann characteristics, from the C programmers point of view, even though the core is Harvard. Not sure what that boils down to, but this matters since Harvard architectures might need to execute some support overhead code to access flash ROM data, which in turn leads to slightly larger executable size. You need to disassemble if you want to know the specifics.

CodePudding user response：

There are differences between your 3 options:

#define STRLIT "HELLO WORLD" defines a preprocessor token: no code or data is generated in the executable, yet every instance of STRLIT in the code will be replaced with the string literal at compile time, which may generate more data or not.
const char arr[] = "HELLO WORLD" defines a named array of char of size 12 bytes, initialized and null terminated. It takes 12 bytes in the executable read-only data segment, which may increase the size of the executable by 12 bytes or more depending on alignment constraints in the executable format.
const char *strlit = "HELLO WORLD"; defined both a string literal (a constant array of size 12 bytes) and a modifiable pointer strlit initialized to point to the string literal. This should at least use 4 bytes more in the executable (the size of a pointer on your 32-bit target system), but may increase the size of the executable by more than 4 bytes again depending on alignment constraints in the executable format.

Note also that depending on compiler options, there might be debugging data present in the executable file.

CodePudding user response：

Define a pointer to a character constant. Here, ptr is a constant that points to a char* type, so you cannot use ptr to modify the pointed content. In other words, the value of *ptr is const and cannot be modified. But the declaration of ptr doesn't mean that the value it points to is actually a constant, it just means that the value is constant to ptr. The experiment is as follows: ptr points to str, but str is not const. The value of str can be modified directly through the str variable, but it cannot be modified through the ptr pointer.

Original link: https://blog.csdn.net/silentob/article/details/76994618

So,it may cause some align problem.Because const data (const char array[] is obsluly a const)is stored in .ro_data segment.but pointer with value(const char *array is a varible pointer) will be stored in .data segment.

Disable optimize.Upload target asm files.
