ggplot2: Projecting points or distribution on a non-orthogonal (eg, -45 degree) axis-CodePudding

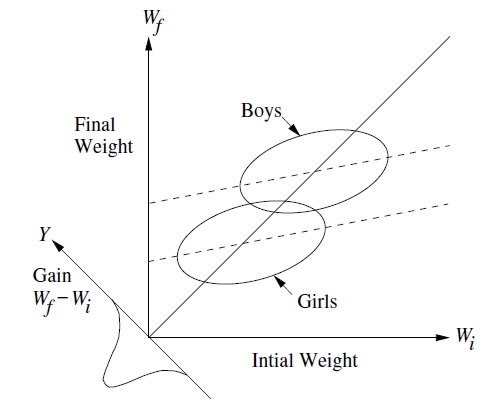

The figure below is a conceptual diagram used by Michael Clark,

My question is framed in this context and using ggplot2 but it is broader in terms of geometry & graphing.

I would like to reproduce figures like this, but using actual data. I need to know:

how to draw a new axis at the origin, with a -45 degree angle, corresponding to values of y-x
how to draw little normal distributions or density diagrams, or other representations of the values y-x projected onto this axis.

My minimal base example uses ggplot2,

library(ggplot2)
set.seed(1234)
N <- 200
group   <- rep(c(0, 1), each = N/2)
initial <- .75*group   rnorm(N, sd=.25)
final   <- .4*initial   .5*group   rnorm(N, sd=.1)
change  <- final - initial
df <- data.frame(id = factor(1:N),
                group = factor(group,
                               labels = c('Female', 'Male')),
                initial,
                final,
                change)
#head(df)

#' plot, with regression lines and data ellipses
ggplot(df, aes(x = initial, y = final, color = group))
    geom_point()
    geom_smooth(method = "lm", formula  =  y~x)
  stat_ellipse(size = 1.2)
  geom_abline(slope  =  1, color = "black", size = 1.2)
  coord_fixed(xlim = c(-.6, 1.2), ylim = c(-.6, 1.2))
  theme_bw()
  theme(legend.position = c(.15, .85))

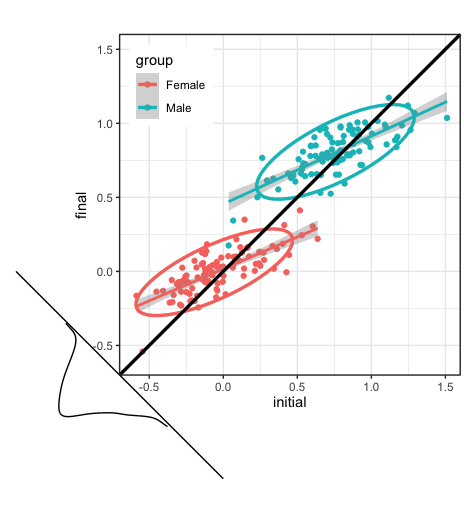

This gives the following graph:

In geometry, the coordinates of the -45 degree rotated axes of distributions I want to portray are (y-x), (x y) in the original space of the plot. But how can I draw these with ggplot2 or other software?

An accepted solution can be vague about how the distribution of (y-x) is represented, but should solve the problem of how to display this on a (y-x) axis.

CodePudding user response：

Fun question! I haven't encountered it yet, but there might be a package to help do this automatically. Here's a manual approach using two hacks:

the "clip" parameter of the coord_* functions, to allow us to add annotations outside the plot area.
building a density plot, extracting its coordinates, and then rotating and translating those.

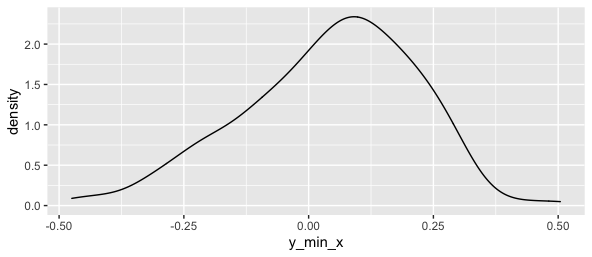

First, we can make a density plot of the change from initial to final, seeing a left skewed distribution:

(my_hist <- df %>%
  mutate(y_min_x = final - initial) %>%
  ggplot(aes(y_min_x))
  geom_density())

Now we can extract the guts of that plot, and transform the coordinates to where we want them to appear in the combined plot:

a <- ggplot_build(my_hist)
rot = pi * 3/4
diag_hist <- tibble(
  x = a[["data"]][[1]][["x"]],
  y = a[["data"]][[1]][["y"]]
) %>%
  # squish
  mutate(y = y*0.2) %>%
  # rotate 135 deg CCW
  mutate(xy = x*cos(rot) - y*sin(rot),
         dens = x*sin(rot)   y*cos(rot)) %>%
  # slide
  mutate(xy = xy - 0.7,  #  magic number based on plot range below
         dens = dens - 0.7)

And here's a combination with the original plot:

ggplot(df, aes(x = initial, y = final, color = group))
  geom_point()
  geom_smooth(method = "lm", formula  =  y~x)
  stat_ellipse(size = 1.2)
  geom_abline(slope  =  1, color = "black", size = 1.2)
  coord_fixed(clip = "off",
              xlim = c(-0.7,1.6),
              ylim = c(-0.7,1.6),
              expand = expansion(0))
  annotate("segment", x = -1.4, xend = 0, y = 0, yend = -1.4)
  annotate("path", x = diag_hist$xy, y = diag_hist$dens)
  theme_bw()
  theme(legend.position = c(.15, .85),
        plot.margin = unit(c(.1,.1,2,2), "cm"))
