I'm plotting the energy distribution of lightning in the Med sea, and I'm plotting my data with imshow and binned_statistic_2d.

I successfully plotted the mean of the lightning energy, but for a reason, I can't understand the imshow plot is looking weird in the sum plot(colors unwanted areas with purple, see left plot in the image).

This is the code I'm using-

 plot_3vars_sum = binned_statistic_2d(longs, lats, energies, statistic= 'sum', bins=[467, 175])
plot_3vars_mean = binned_statistic_2d(longs, lats, energies, statistic=np.mean, bins=[467, 175])
ax0.plot(long_points_med, lat_points_med)
ax1.plot(long_points_med, lat_points_med)
imshow_sum = ax0.imshow(plot_3vars_sum.statistic.T, origin='lower', extent=[min(longs), max(longs), min(lats), max(lats)])
imshow_mean = ax1.imshow(plot_3vars_mean.statistic.T, origin='lower', extent=[min(longs), max(longs), min(lats), max(lats)])
ax0.set_ylim(ymin=28, ymax= 47)
ax1.set_ylim(ymin=28, ymax= 47)
ax0.set_xlim(xmin=-7, xmax=37)
ax1.set_xlim(xmin=-7, xmax=37)
imshow_sum.set_clim(1, 100000)
imshow_mean.set_clim(1, 10000)
cb0 = fig.colorbar(imshow_sum, ax=ax0, shrink=0.6)
cb1 = fig.colorbar(imshow_mean, ax=ax1, shrink=0.6)
plt.title(f'This is {month} in 2009-10')
plt.show()

longs, lats, and energies are simply lists of floats.

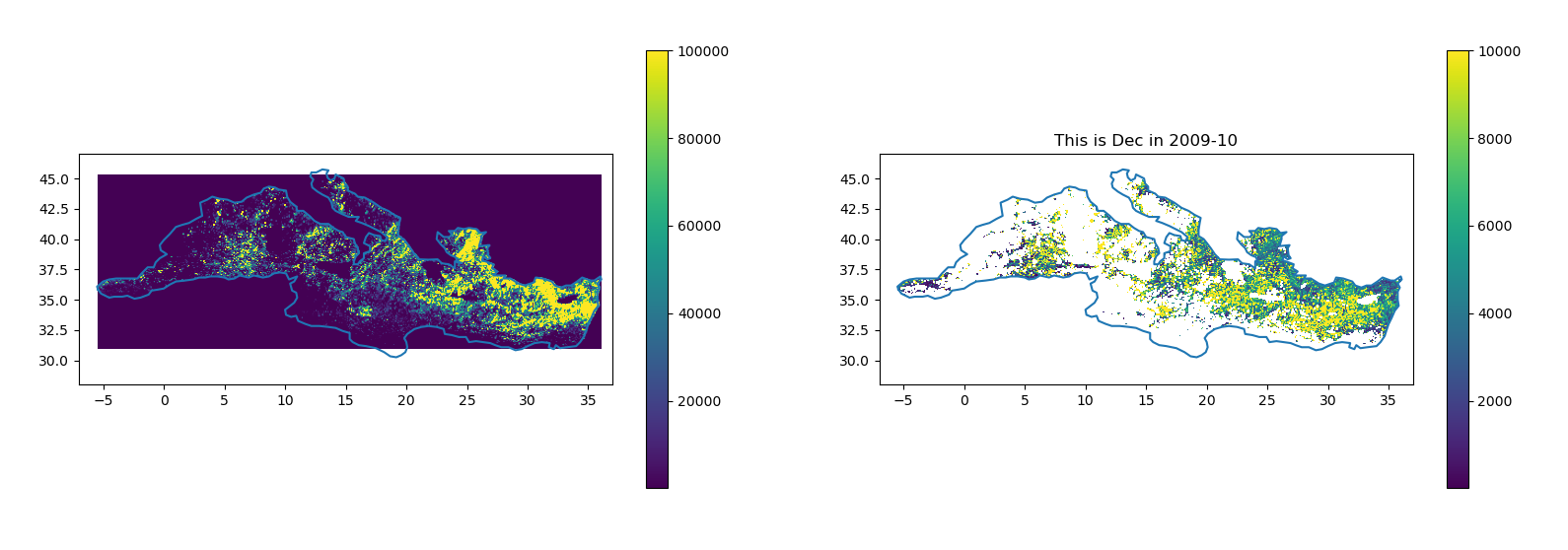

The image I'm getting is-

I tried ignoring nans and setting the color bar limits to above 1, but nothing works... Can I get some help, please? I'm stuck.

Thanks in advance

CodePudding user response：

The reason for this behaviour is that when using mean, some of the bins contain "NaN" values while the result of "Sum" contains 0s. I'll try and find a way to make 0 into nan in the sum. question closed I guess? :-)
