I was wanting to make an animated ggplot of daily values for countries over the course of a year. I was able to do that thanks to some helpful questions/answers

library(tidyverse)
library(ggplot2)
library(gganimate)
library(gifski)
library(png)

# Generate some fake data
n=365
df <- data.frame(country_name = rep(c("Country_1","Country_2","Country_3","Country_4","Country_5"), n, replace=FALSE),
                 date = rep(seq.Date(as.Date("2021-01-01"), as.Date("2021-12-31"), "day"),each=5), # each is number of countries
                 incidents=sample(1:100, size = 25, replace=TRUE
                 ))

# Make cumulative number of events
df = df %>%
  group_by(country_name) %>%
  arrange(date) %>%
  mutate(cumulative_incidents = cumsum(incidents)) %>%
  ungroup()

# create integer rankings (I thought the *1 would make things smoother)
df = df %>%
  group_by(date) %>%
  mutate(rank = min_rank(-cumulative_incidents *1),
         Value_rel = cumulative_incidents/cumulative_incidents[rank==1],
         Value_lbl = paste0(" ",round(cumulative_incidents/1e9))) %>%
  ungroup()

# make the static plot

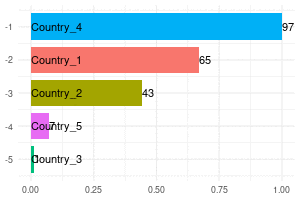

my_plot = ggplot(df, aes(-rank,Value_rel, fill = country_name))
  geom_col(width = 0.8, position="identity")
  coord_flip()
  geom_text(aes(-rank,y=0,label = country_name,hjust=0))
  geom_text(aes(-rank,y=Value_rel,label = cumulative_incidents, hjust=0))
  theme_minimal()
  theme(legend.position = "none",axis.title = element_blank())
  # animate along Year
  transition_states(date,4,1)

# animate the plot
animate(my_plot, 100, fps = 25, duration = 20, width = 800, height = 600)

CodePudding user response：

The temporal resolution of your data is very high, you have 365 timepoints, but only 500 frames in your animation. These smooth switches therefore happen within 500 / 365 = ~1.4 frames and aren't visible.

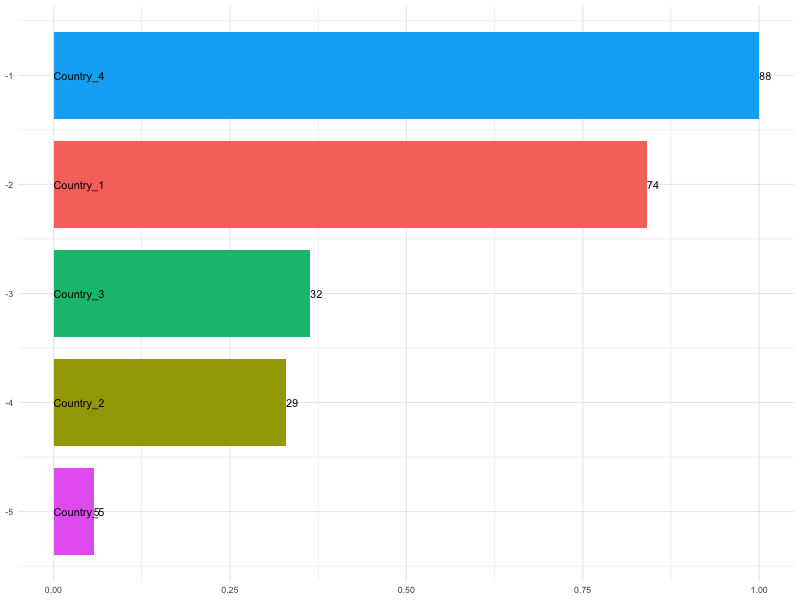

Either make your animation much longer, reduce the time resolution of the data, or manually code in transitions. For example, here's what happens if we give data only once a month:

df2 <- filter(df, date %in% seq(min(date), max(date), 'week'))
my_plot <- ggplot(df2, aes(-rank,Value_rel, fill = country_name))
  geom_col(width = 0.8, position="identity")
  coord_flip()
  geom_text(aes(-rank,y=0,label = country_name,hjust=0))
  geom_text(aes(-rank,y=Value_rel,label = cumulative_incidents, hjust=0))
  theme_minimal()
  theme(legend.position = "none",axis.title = element_blank())
  # animate along Year
  transition_states(date, transition_length = 10, state_length = 1)
animate(my_plot, fps = 25, duration = 20, width = 800, height = 600)
