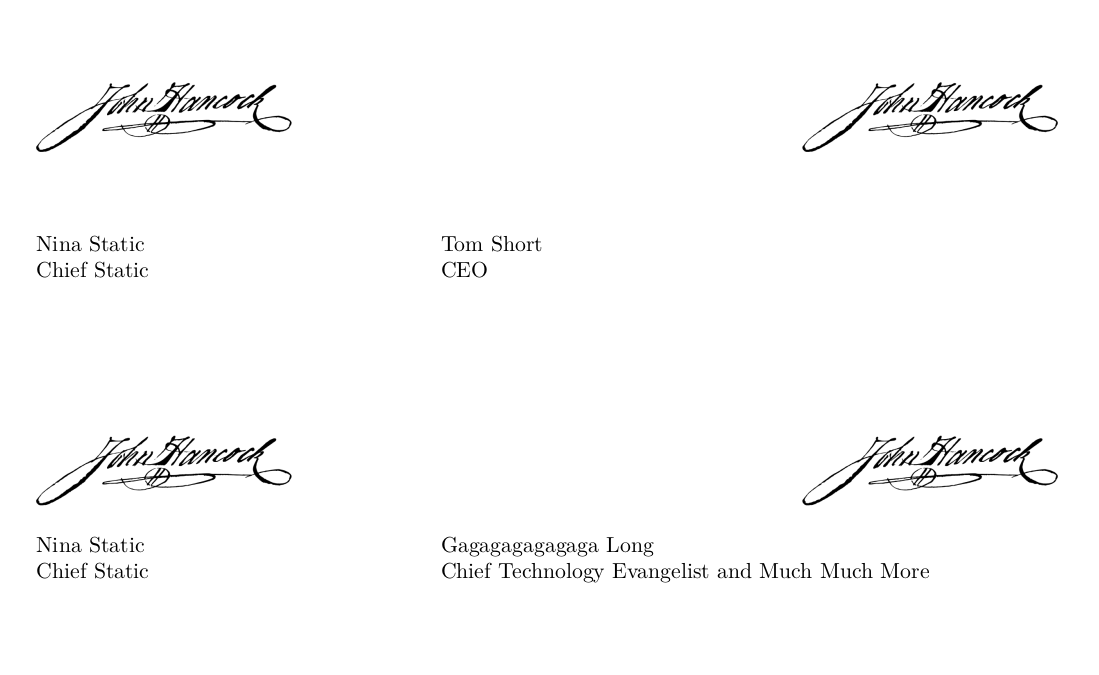

I am using rmarkdown to generate formal letters that include 2 signature positions. I would like the names and positions to be at the left and right margin of the document but with left aligned. The names and positions are of different lengths so \hfill and \hspace{110pt} does not do the job. Above the name the signature should be centre aligned. I am using a table to do this like

    ---
title: ""
output: pdf_document
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = TRUE)

df<-data.frame(name=c("Tom Short", "Gagagagagagaga Long"), position=c("CEO", "Chief Technology Evangelist and Much Much More"))

```


\
\


![](JohnHancocksSignature.png){width=25%} \hfill ![](JohnHancocksSignature.png){width=25%}

\
\begingroup
\noindent
\begin{tabular}{@{}lll@{}}
Nina Static & \hspace{110pt} & `r df$name[1]` \\
Chief Static & \hspace{110pt} & `r  df$position[1]`\\
\end{tabular}
\endgroup

\
\
\
\
\
\
![](JohnHancocksSignature.png){width=25%} \hfill ![](JohnHancocksSignature.png){width=25%}


\begingroup
\noindent
\begin{tabular}{@{}lll@{}}
Nina Static & \hspace{110pt} & `r df$name[2]` \\
Chief Static & \hspace{110pt} & `r  df$position[2]`\\
\end{tabular}
\endgroup

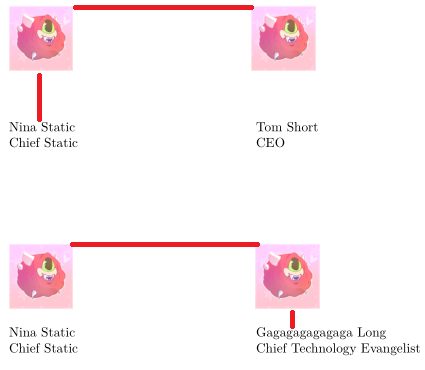

What I would like is that the names and positions are left aligned each underneath the other and the signature centered above like this

CodePudding user response：

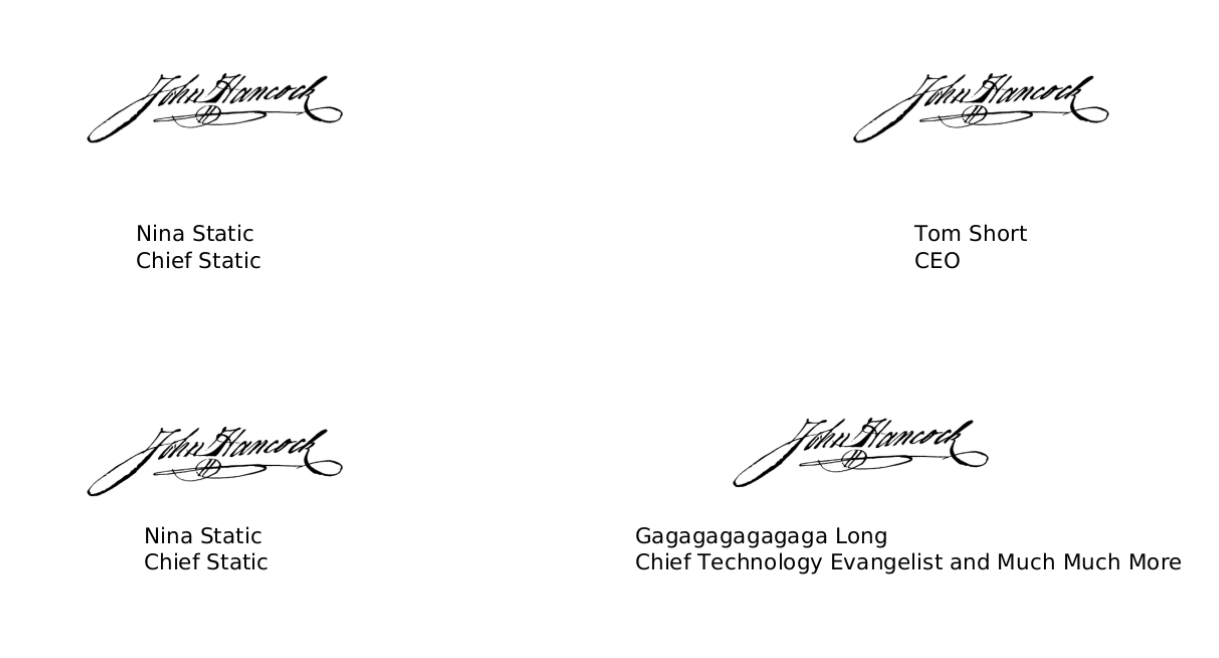

You can try this.

Find out a better \hspace for your pics...

---
title: "Untitled"
header-includes:
- \usepackage{graphicx}
output: pdf_document
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = TRUE)

df<-data.frame(name=c("Tom Short", "Gagagagagagaga Long"), position=c("CEO", "Chief Technology Evangelist and Much Much More"))

```


\
\


\includegraphics[height=2.5cm]{your_pic.png} \hspace{4.5cm} \includegraphics[height=2.5cm]{your_pic.png}

\
\begingroup
\noindent
\begin{tabular}{@{}lll@{}}
Nina Static & \hspace{110pt} & `r df$name[1]` \\
Chief Static & \hspace{110pt} & `r  df$position[1]`\\
\end{tabular}
\endgroup

\
\
\
\
\
\
\includegraphics[height=2.5cm]{your_pic.png} \hspace{4.6cm}  \includegraphics[height=2.5cm]{your_pic.png}


\begingroup
\noindent
\begin{tabular}{@{}lll@{}}
Nina Static & \hspace{110pt} & `r df$name[2]` \\
Chief Static & \hspace{110pt} & `r  df$position[2]`\\
\end{tabular}
\endgroup

CodePudding user response：

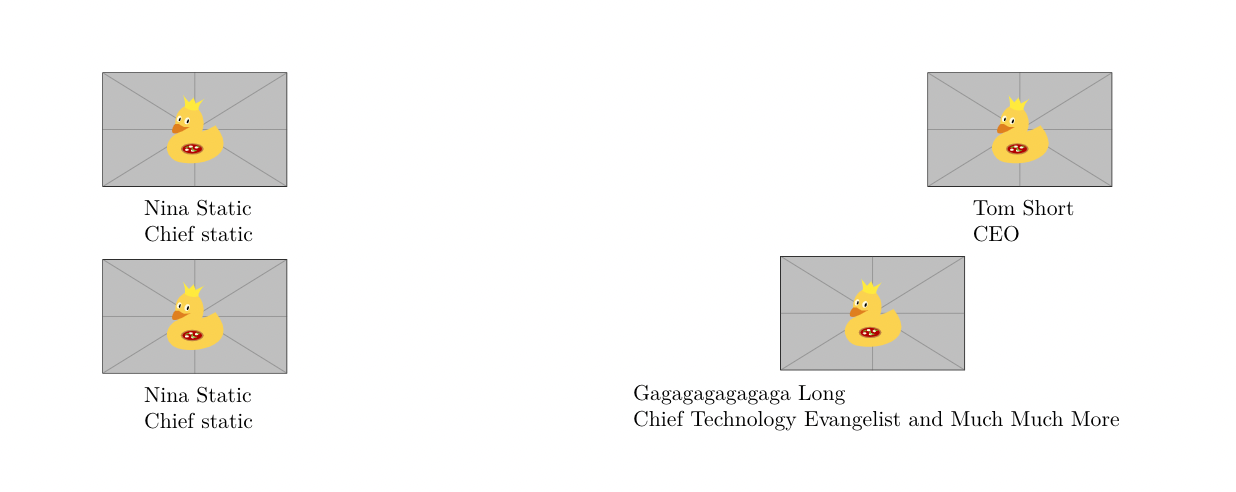

You could use the varwidth package like this:

---
title: ""
output:
  pdf_document:
    keep_tex: true
header-includes:
  - \usepackage{varwidth}
---

```{r setup, include=FALSE}
knitr::opts_chunk$set(echo = TRUE)

df<-data.frame(name=c("Tom Short", "Gagagagagagaga Long"), position=c("CEO", "Chief Technology Evangelist and Much Much More"))

```


\begin{varwidth}{.5\linewidth}
\centering\includegraphics[width=3cm]{example-image-duck}
\medskip

\begin{varwidth}{\linewidth}
Nina Static

Chief static
\end{varwidth}
\end{varwidth}
\hfill
\begin{varwidth}{.5\linewidth}
\centering\includegraphics[width=3cm]{example-image-duck}
\medskip

\begin{varwidth}{\linewidth}
`r df$name[1]`

`r  df$position[1]`
\end{varwidth}
\end{varwidth}

\begin{varwidth}{.5\linewidth}
\centering\includegraphics[width=3cm]{example-image-duck}
\medskip

\begin{varwidth}{\linewidth}
Nina Static

Chief static
\end{varwidth}
\end{varwidth}
\hfill
\begin{varwidth}{.5\linewidth}
\centering\includegraphics[width=3cm]{example-image-duck}
\medskip

\begin{varwidth}{\linewidth}
`r df$name[2]`

`r  df$position[2]`
\end{varwidth}
\end{varwidth}
