I have data like this:

df<-structure(list(PreConfidenceMarginal = c(1, 1, 1, 3, 3, 4, 4,
4, 4, 4, 2, 1, 1, 1, 2, 3, 2, 1), PostConfidenceMarginal = c(2,
2, 2, 4, 4, 4, 4, 4, 5, 4, 3, 3, 1, 3, 4, 3, 3, 3), NoMarginalRepairs = c(TRUE,
TRUE, TRUE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE, FALSE,
FALSE, TRUE, TRUE, FALSE, FALSE, FALSE, TRUE, TRUE)), row.names = c(NA,
-18L), class = c("tbl_df", "tbl", "data.frame"))

and I've made this graph with it:

df%>%pivot_longer(!NoMarginalRepairs, names_to = "Time", values_to = "Value")%>%group_by(Time,NoMarginalRepairs)%>%summarize(Mean=mean(Value),SD=sd(Value, na.rm = TRUE))%>%mutate(Time=as.factor(Time))%>%mutate(Time=fct_recode(Time,"Pre-Workshop"="PreConfidenceMarginal","Post-Workshop"="PostConfidenceMarginal"))%>%mutate(Time = factor(Time, levels = c("Pre-Workshop", "Post-Workshop")))%>%ggplot(aes(x=Time,y=Mean,color=NoMarginalRepairs,group=NoMarginalRepairs)) geom_point() geom_line() labs(color="Has not repaired any marginal eyelid lacerations",title = "Degree of Improvement", subtitle = "Repairing Marginal Lid Laceration" , y= "Confidence Level") scale_y_continuous(breaks = c(1, 2, 3, 4,5),labels = c("1. Poor", "2. Fair", "3. Good", "4. Very Good", "5. Excellent"))

Looks great and is mostly what I want. That being said I'd love the y axis to go from 1 to at least 4, and when I try to do that with ylim I'm having trouble.

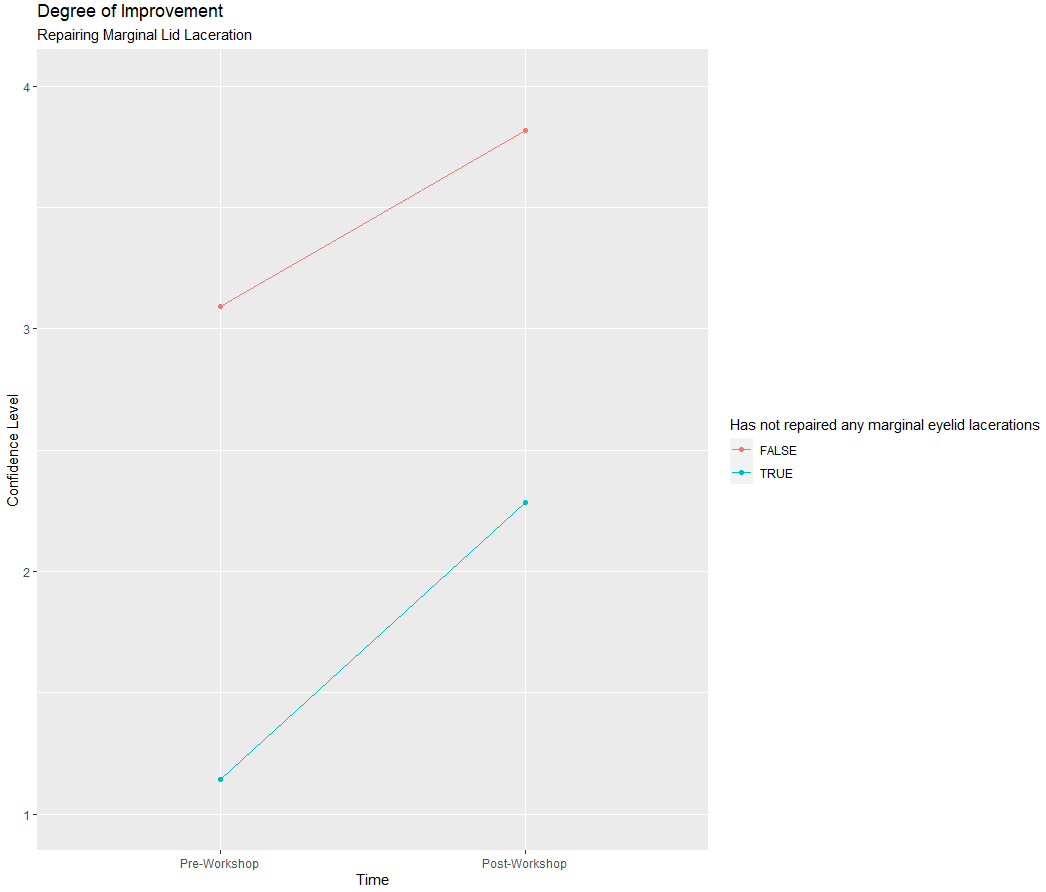

When I use only ylim() and not the custom breaks and labels, works fine:

df%>%pivot_longer(!NoMarginalRepairs, names_to = "Time", values_to = "Value")%>%group_by(Time,NoMarginalRepairs)%>%summarize(Mean=mean(Value),SD=sd(Value, na.rm = TRUE))%>%mutate(Time=as.factor(Time))%>%mutate(Time=fct_recode(Time,"Pre-Workshop"="PreConfidenceMarginal","Post-Workshop"="PostConfidenceMarginal"))%>%mutate(Time = factor(Time, levels = c("Pre-Workshop", "Post-Workshop")))%>%ggplot(aes(x=Time,y=Mean,color=NoMarginalRepairs,group=NoMarginalRepairs)) geom_point() geom_line() labs(color="Has not repaired any marginal eyelid lacerations",title = "Degree of Improvement", subtitle = "Repairing Marginal Lid Laceration" , y= "Confidence Level") ylim(1,4)

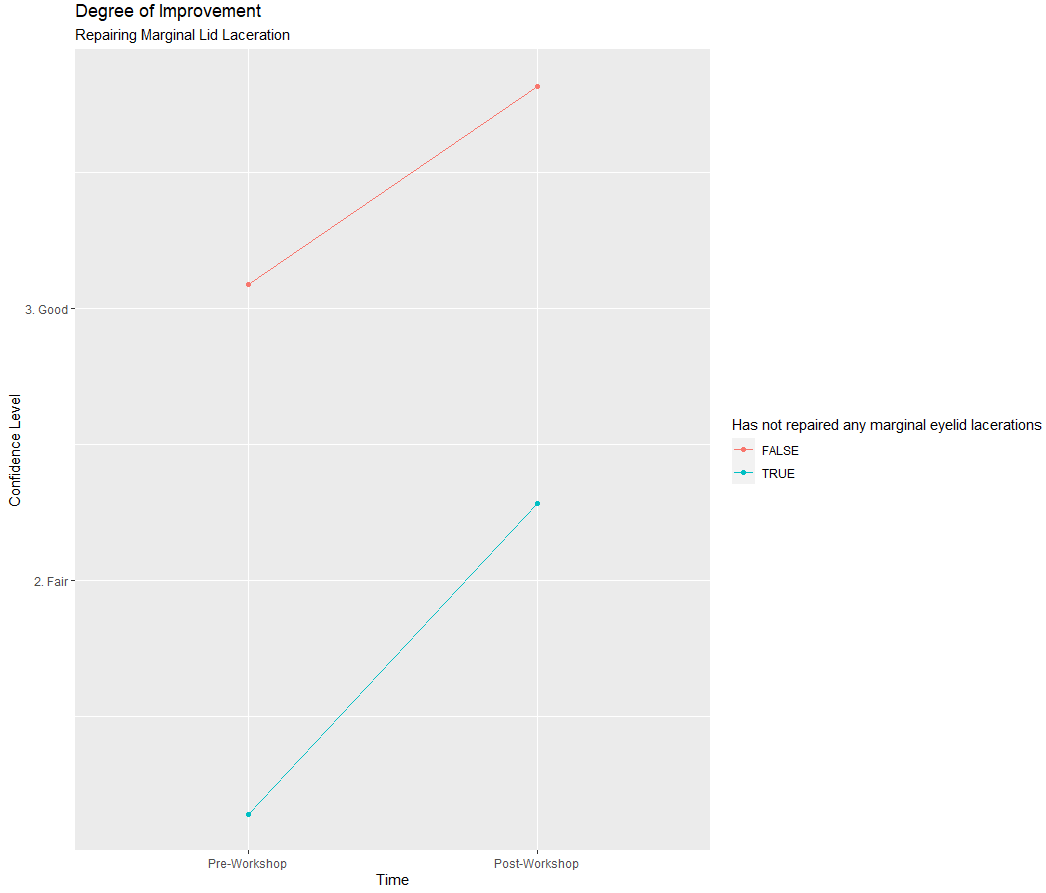

But when I try to have both in my code like so it messes up:

df%>%filter(!is.na(NoMarginalRepairs))%>%select(PreConfidenceMarginal,PostConfidenceMarginal,NoMarginalRepairs)%>%pivot_longer(!NoMarginalRepairs, names_to = "Time", values_to = "Value")%>%group_by(Time,NoMarginalRepairs)%>%summarize(Mean=mean(Value),SD=sd(Value, na.rm = TRUE))%>%mutate(Time=as.factor(Time))%>%mutate(Time=fct_recode(Time,"Pre-Workshop"="PreConfidenceMarginal","Post-Workshop"="PostConfidenceMarginal"))%>%mutate(Time = factor(Time, levels = c("Pre-Workshop", "Post-Workshop")))%>%ggplot(aes(x=Time,y=Mean,color=NoMarginalRepairs,group=NoMarginalRepairs)) geom_point() geom_line() labs(color="Has not repaired any marginal eyelid lacerations",title = "Degree of Improvement", subtitle = "Repairing Marginal Lid Laceration" , y= "Confidence Level") scale_y_continuous(breaks = c(1, 2, 3, 4,5),labels = c("1. Poor", "2. Fair", "3. Good", "4. Very Good", "5. Excellent")) ylim(1,4)

It tells me why (and it makes sense):

"Scale for 'y' is already present. Adding another scale for 'y', which will replace the existing scale."

But how do I do both? Change the labels on the data and at the same time ensure that the scale goes far enough?

CodePudding user response：

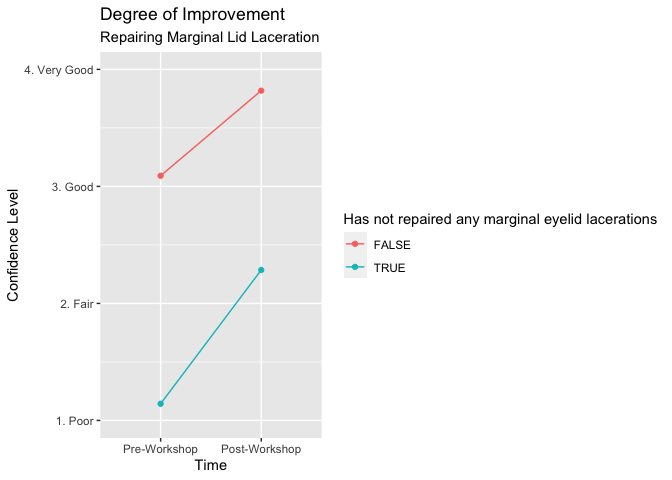

You could set the limits via the limits argument of scale_y_continuous:

library(tidyverse)

df_long <- df %>%
  pivot_longer(!NoMarginalRepairs, names_to = "Time", values_to = "Value") %>%
  group_by(Time, NoMarginalRepairs) %>%
  summarize(Mean = mean(Value), SD = sd(Value, na.rm = TRUE)) %>%
  mutate(Time = as.factor(Time)) %>%
  mutate(Time = fct_recode(Time, "Pre-Workshop" = "PreConfidenceMarginal", "Post-Workshop" = "PostConfidenceMarginal")) %>%
  mutate(Time = factor(Time, levels = c("Pre-Workshop", "Post-Workshop")))

ggplot(df_long, aes(x = Time, y = Mean, color = NoMarginalRepairs, group = NoMarginalRepairs))
  geom_point()
  geom_line()
  labs(color = "Has not repaired any marginal eyelid lacerations",
       title = "Degree of Improvement",
       subtitle = "Repairing Marginal Lid Laceration",
       y = "Confidence Level")
  scale_y_continuous(breaks = c(1, 2, 3, 4, 5),
                     labels = c("1. Poor", "2. Fair", "3. Good", "4. Very Good", "5. Excellent"),
                     limits = c(1, 4))
