Create customized plotting function and run it with dynamic parameters using R-CodePudding

Edited code for example from

Using code below, I create 3 samples, set p1, p2 and p3's parameters for df1, df2, df3 respectively:

set.seed(1)

df1 <- slice_sample(iris, n = 10)
df2 <- slice_sample(iris, n = 10)
df3 <- slice_sample(iris, n = 10)

# to set df1's and arguments (seems not good enough to store parameters, maybe I need to save it as config or ymal file?)
df1_plot1_param <- c(df='df1', x='Petal.Width', y='Sepal.Width', col='Species')
df1_plot2_param <- c(df='df1', x='Petal.Length', y='Sepal.Width', fill='Species')
df1_plot3_param <- c(df='df1', x='Sepal.Width', y='Petal.Width', col='Species')

# to set df2's arguments
df2_plot1_param <- c(df='df2', x='Sepal.Length', y='Sepal.Width', col='Species')
df2_plot2_param <- c(df='df2', x='Petal.Length', y='Sepal.Width', fill='Species')
df2_plot3_param <- c(df='df2', x='Sepal.Length', y='Petal.Width', col='Species')

# to set df3's arguments
df3_plot1_param <- c(df='df3', x='Sepal.Length', y='Sepal.Width', col='Species')
df3_plot2_param <- c(df='df3', x='Petal.Length', y='Sepal.Width', fill='Species')
df3_plot3_param <- c(df='df3', x='Sepal.Length', y='Petal.Width', col='Species')

for i in c(df1's params, df2's params, df3's params):
  purrr:map(plot_func(df{i}_param))

The final result will be 3 plots for dfs with parameters pre-defined.

But I don't know how to make the whole code work out, thanks for your help at advance, thanks a lot.

Reference links:

Creating multiple ggplots with dplyr

CodePudding user response：

Try something like this. You can specify the X/Y and the grouping etc in the function.

EDIT: added dataframe as argument to function per the question

set.seed(1)

df1 <- slice_sample(iris, n = 10)


library(ggplot2)
library(patchwork)

my_plot = function(DF=df, X="", Y="", GROUP=""){

  # Create ggplot2 scatterplot
  p1 <- ggplot(DF,
               aes(x = .data[[X]],
                   y = .data[[Y]],
                   col = Species))
    geom_point()
  p1
  # Create ggplot2 barchart
  p2 <- ggplot(DF,
               aes(x = .data[[GROUP]],
                   y = .data[[Y]],
                   fill = .data[[GROUP]]))
    geom_bar(stat = "identity")
  p2

  # Create ggplot2 boxplot
  p3 <- ggplot(DF,
               aes(x = .data[[GROUP]],
                   y = .data[[Y]],
                   col = .data[[GROUP]]))
    geom_boxplot()
  p3

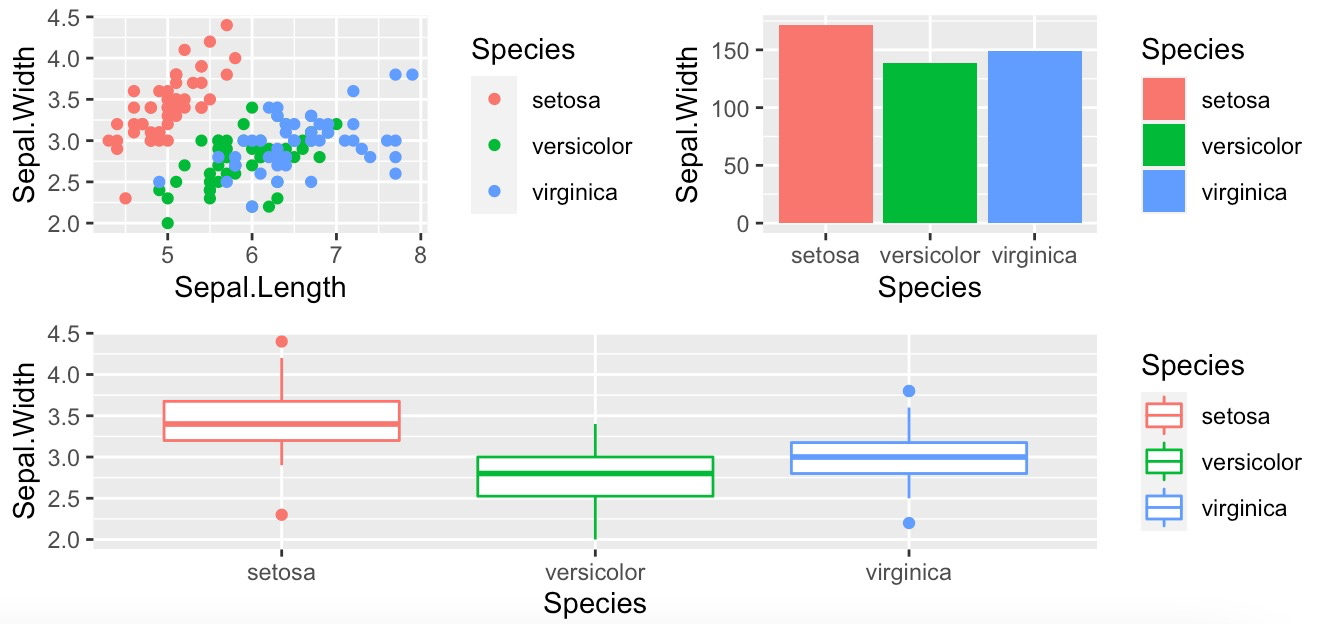

  # Create plot composition
  p <- (p1   p2) / p3
  # Draw plot composition
  return(p)

}

test = my_plot(DF=iris, X= "Sepal.Length",Y = "Sepal.Width", GROUP="Species")
