How to insert or create a visual separation between groups of bars within ggplot2 in R?-CodePudding

I would like to create a separation between the groups (D, E, F, G, H, I e J) of slashes inside ggplot.

Using the diamonds database.

ggplot(diamonds, aes(x = color, y=depth, fill=factor(clarity )))
  geom_col(position = "dodge")
  scale_fill_manual(values = c("red4", "seagreen3", "grey", "yellow", "black", "blue", "green", "sienna","tomato1", "tan2"), name="clarity")
  theme_light()

I've:

but I would like to create some visual separation between the groups in a simple way, similar to this`

OBS1: facet_grid won't work because I'm going to use two other variables to add to facet_grid.

OBS2: For clarification: I'd like to add something visual that helps visually separate the groups, to make it easier to understand where each group starts and ends.

OB3:I edited the second image (Expectative) with rectangles separating each group. The idea would be more or less this.

CodePudding user response：

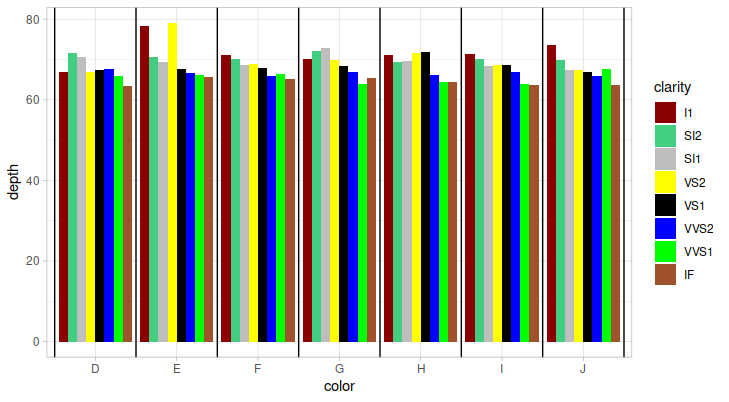

using geom_vline

ggplot(diamonds, aes(x = color, y=depth, fill=factor(clarity )))
  geom_col(position = "dodge")
  scale_fill_manual(values = c("red4", "seagreen3", "grey", "yellow", "black", "blue", "green", "sienna","tomato1", "tan2"), name="clarity")
  theme_light()
  geom_vline(xintercept = (0:7) 0.5)

CodePudding user response：

EDIT: new answer - use geom_rect.

ggplot(diamonds,
       aes(x = color,
           y = depth,
           fill = factor(clarity )))
    geom_col(position = "dodge")
    geom_rect(aes(xmin = as.numeric(color) - 0.5,
                  xmax = as.numeric(color)   0.5),
              ymin = -0.5,
              ymax = Inf,
              color = "red",
              fill = NA,
              size = 2)
    scale_fill_manual(values = c("red4", "seagreen3", "grey", "yellow", "black",
                                 "blue", "green", "sienna","tomato1", "tan2"),
                      name = "clarity")
    theme_light()

Result:

OLD ANSWER - before you modified your question.

I think the easiest way is to use facet_grid. It's not really designed for that purpose, but will result in the required visual effect.

ggplot(diamonds,
       aes(x = color,
           y = depth,
           fill = factor(clarity )))
geom_col(position = "dodge")
scale_fill_manual(values = c("red4", "seagreen3", "grey", "yellow", "black",
                             "blue", "green", "sienna","tomato1", "tan2"),
                             name = "clarity")
facet_grid(. ~ color,
           scales = "free_x",
           switch = "x")
theme_light()
theme(axis.text.x = element_blank(),
      axis.ticks.x = element_blank())

Result:
