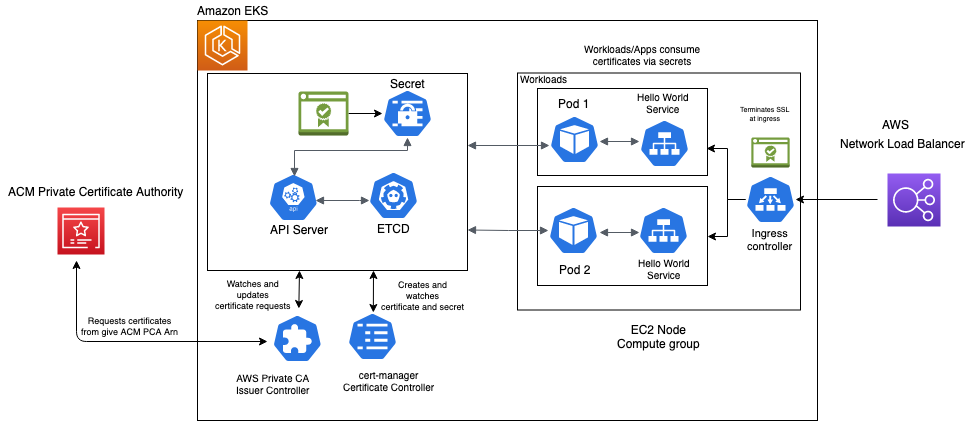

I created a TLS-enabled service with AWS PCA and cert-manager by this post:

After I deployed a demo application with ingress, I tested access on control node

$ curl https://demo.my-org.com --cacert cacert.pem

Got message

curl: (60) SSL certificate problem: unable to get local issuer certificate
More details here: https://curl.haxx.se/docs/sslcerts.html

curl failed to verify the legitimacy of the server and therefore could not
establish a secure connection to it. To learn more about this situation and
how to fix it, please visit the web page mentioned above.

The cacert.pem was downloaded from AWS PCA's Certificate body. Things look good in K8s for AWSPCAClusterIssuer and Certificate. The certificate description got these events:

$ kubectl describe certificate rsa-cert-2048 -n acm-pca-lab-demo
Events:
  Type    Reason     Age   From          Message
  ----    ------     ----  ----          -------
  Normal  Issuing    47m   cert-manager  Existing issued Secret is not up to date for spec: [spec.commonName spec.dnsNames]
  Normal  Reused     47m   cert-manager  Reusing private key stored in existing Secret resource "rsa-example-cert-2048"
  Normal  Requested  47m   cert-manager  Created new CertificateRequest resource "rsa-cert-2048-pp4c4"
  Normal  Issuing    47m   cert-manager  The certificate has been successfully issued

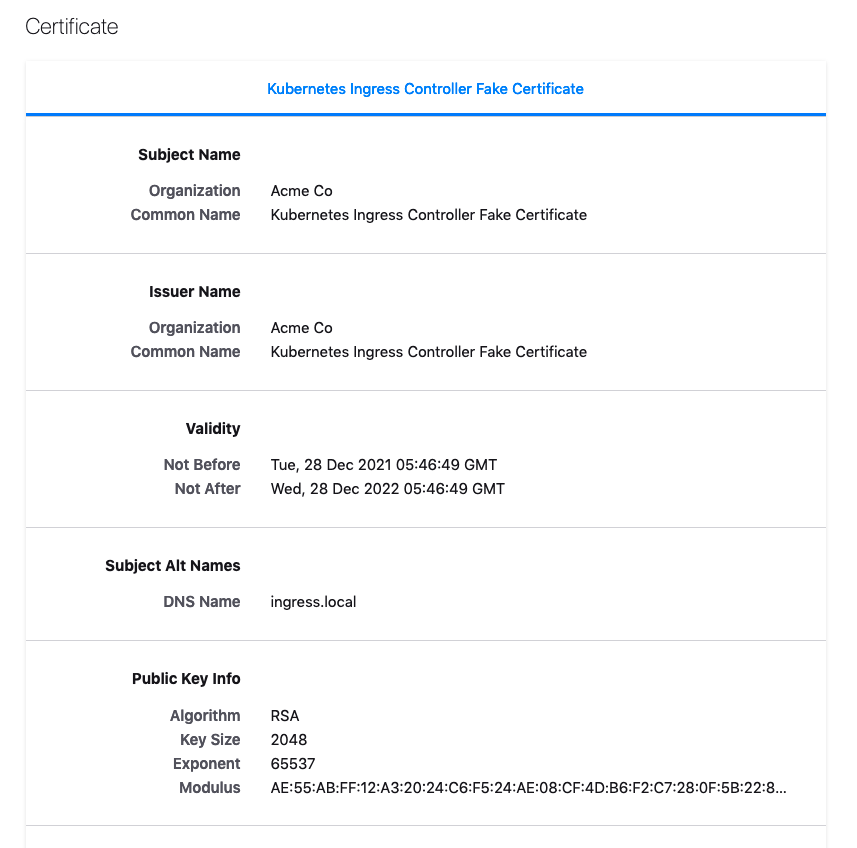

If I access from browser got 502 error. The certificate page shown a fake certificate and an alt DNS name.

I'm sure the private CA in AWS was actived successfully. Its arn and region were been set to the EKS node policy and AWSPCAClusterIssuer. What's wrong about the settings? How to diagnose the issue?

deployed resources

I checked the deployed resources in acm-pca-lab-demo namespace.

$ kubectl get secret -n acm-pca-lab-demo
NAME                    TYPE                                  DATA   AGE
default-token-jmxt7     kubernetes.io/service-account-token   3      10h
rsa-example-cert-2048   kubernetes.io/tls                     3      10h

$ kubectl get all -n acm-pca-lab-demo
NAME                               READY   STATUS    RESTARTS   AGE
pod/hello-world-57df4c69f9-nnjrl   1/1     Running   0          10h
pod/hello-world-57df4c69f9-r8f4p   1/1     Running   0          10h
pod/hello-world-57df4c69f9-xgm6w   1/1     Running   0          10h

NAME                  TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
service/hello-world   ClusterIP   102.30.45.163   <none>        80/TCP    10h

NAME                          READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/hello-world   3/3     3            3           10h

NAME                                     DESIRED   CURRENT   READY   AGE
replicaset.apps/hello-world-57df4c69f9   3         3         3       10h

$ kubectl get ingress -n acm-pca-lab-demo
NAME                   CLASS    HOSTS             ADDRESS                                                                          PORTS     AGE
acm-pca-demo-ingress   <none>   demo.my-org.com   11111111111111111111111111111111-2222222222222222.elb.us-east-1.amazonaws.com    80, 443   10h

On the browser, I also got these messages:

The certificate is not trusted because it is self-signed.


HTTP Strict Transport Security: false

HTTP Public Key Pinning: false

certificate file

I downloaded the PCA .pem file from AWS console here. Is it correct?

It's -----BEGIN CERTIFICATE----- started file.

CodePudding user response：

Check your ingress configuration, share the YAML config-if possible which you have used with application deployment.

there could be chances there is not secret attached to ingress, due to that K8s Nginx ingress controller by default attaching the default FAKE cert instead of your generated cert.

For example :

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: acm-pca-demo-ingress
  namespace: acm-pca-lab-demo
  annotations:
    kubernetes.io/ingress.class: "nginx"
spec:
  tls:
  - hosts:
    - www.rsa-2048.example.com
    secretName: rsa-example-cert-2048
  rules:
  - host: www.rsa-2048.example.com
    http:
      paths:
      - path: /
        pathType: Exact
        backend:
          service:
            name: hello-world
            port:
              number: 80

as shown above rsa-example-cert-2048, make sure your secret exists in the namespace in which ingress there.
