How to change the color of an axis title in matplotlib after setting the title?

Time:02-06

I wanted to plot a function on a black colored background. I already managed to modify the labels etc. but I don't know the command to change the color of the title solely.

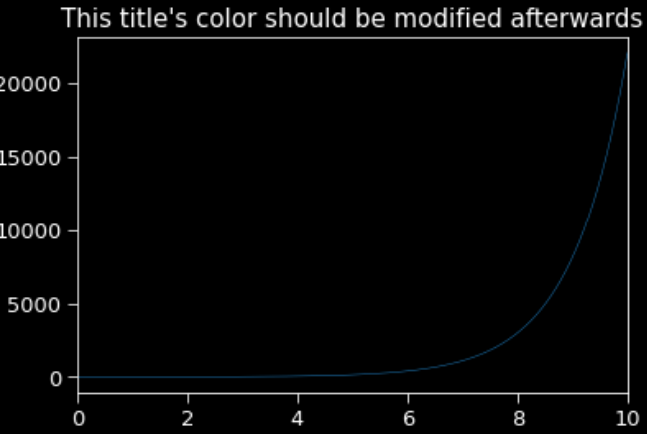

Example

import numpy as np
import matplotlib.pyplot as plt


fig1, ax1 = plt.subplots(1,1)

fig1.patch.set_facecolor('k')
ax1.set_facecolor('k')
ax1.xaxis.label.set_color('w')
ax1.yaxis.label.set_color('w')
ax1.spines['bottom'].set_color('w')
ax1.spines['top'].set_color('w')
ax1.spines['left'].set_color('w')
ax1.spines['right'].set_color('w')
ax1.tick_params(axis='both', colors='w')


x=np.linspace(0,10,1000)
ax1.plot(x, np.exp(x))
ax1.set_title('This title\'s color should be modified afterwards', color='w')

I need this for a GUI I created. I don't want to change the rcParams of the matplotlib module. I want to enter a command similar to above.

Example

CodePudding user response:

You can use the set_color method:

ax1.title.set_color('blue')

CodePudding user response:

Is the following what you want?

import numpy as np
import matplotlib.pyplot as plt

title = 'This title'
fig1, ax1 = plt.subplots(1,1)

fig1.patch.set_facecolor('k')
ax1.set_facecolor('k')
ax1.xaxis.label.set_color('w')
ax1.yaxis.label.set_color('w')
ax1.spines['bottom'].set_color('w')
ax1.spines['top'].set_color('w')
ax1.spines['left'].set_color('w')
ax1.spines['right'].set_color('w')
ax1.tick_params(axis='both', colors='w')
x=np.linspace(0,10,1000)
ax1.plot(x, np.exp(x))
ax1.set_title(title '\'s color should be modified afterwards', color='blue')

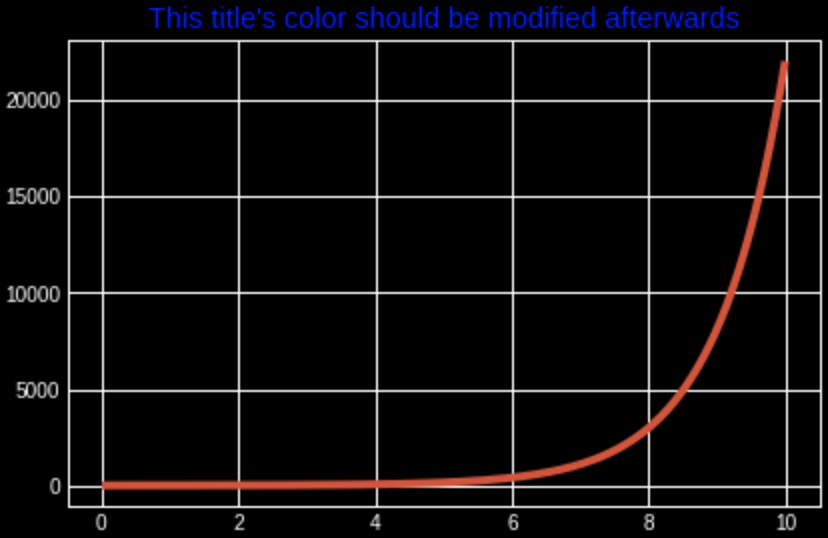

enter image description here
