In a choropleth graphic map with ggplot2, an element corresponding to the NA values ​​of the variable Cuantil Esfuerzo Social por habitante is automatically included in the legend

I have tried a few things:

1. Using na.translate = F in scale_fill_manual() hides both the "NA" item from the legend and the polygons corresponding to those values. So the map is incomplete.
2. Another option that I have used (as it appears in the code) is to define a color and a specific label (Sin datos) for the "NA" values ​​to give more meaning to the graph.

There would be two options to build the graph according to the needs:

1. Hide in the legend the label of the "NA" values. And add an annotation (annotate()) for the "NA" values, with a rectangle and text.
2. To be able to separate (adding a space) the legend with the quartile intervals and a different one only with the corresponding, key and label, to the "NA" values.

Data:

CodePudding user response：

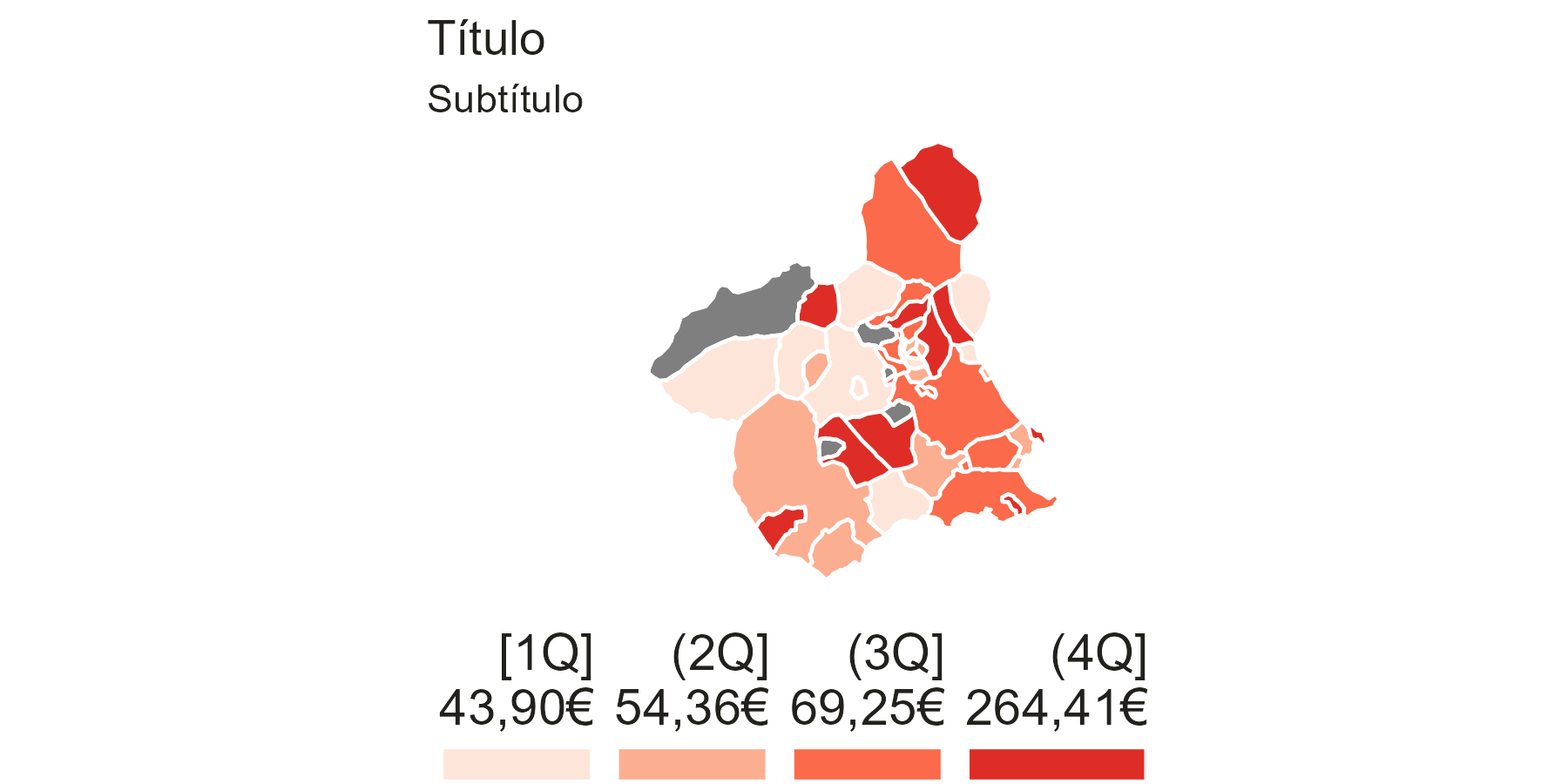

I would suggest another alternative option, that consists on plotting a base layer on the desired NA color and then combine it with a second colorized layer using the na.translate = F approach. By doing this, the plot would have all the polygons as the base layer and the legend would omit the NAs. See below your code with these small modifications.

library(ggplot2)

geosmunicipiosmu <- dget("geosmunicipiosmu.R")

# Create cuartilin. This was not on your code, so I figured it out <--------------
cuartilin <- quantile(geosmunicipiosmu$`Esfuerzo Social por Habitante`, na.rm = TRUE)
colors <- c("#fee5d9", "#fcae91", "#fb6a4a", "#de2d26")

mapaemu <- ggplot(geosmunicipiosmu)
  # Add this line to create the base layer <--------------
  geom_sf(fill = "grey50", color = "#FFFFFF")
  geom_sf(
    aes(
      fill = `Cuantil Esfuerzo Social por habitante`
    ),
    color = "#FFFFFF",
    size = 0.5
  )
  coord_sf(
    xlim = c(-3.1, -0.5)
  )
  theme_void()
  scale_fill_manual(
    # Now remove NA from legend <--------------
    na.translate = FALSE,
    values = colors, # No NA color needed any more <--------------
    labels = c(
      paste("[1Q]\n", format(cuartilin[2], big.mark = ".", decimal.mark = ",", nsmall = 2, digits = 2), "€", sep = ""),
      paste("(2Q]\n", format(cuartilin[3], big.mark = ".", decimal.mark = ",", nsmall = 2, digits = 2), "€", sep = ""),
      paste("(3Q]\n", format(cuartilin[4], big.mark = ".", decimal.mark = ",", nsmall = 2, digits = 2), "€", sep = ""),
      paste("(4Q]\n", format(cuartilin[5], big.mark = ".", decimal.mark = ",", nsmall = 2, digits = 2), "€", sep = "")
    ), # No NA label needed any more <--------------
    guide = guide_legend(
      direction = "horizontal",
      nrow = 1,
      label.position = "top",
      label.hjust = 1,
      keyheight = 0.75
    )
  )
  labs(
    title = "Título",
    subtitle = "Subtítulo",
    fill = "" # Etiqueta para la Leyenda
  )
  theme(
    text = element_text(color = "#22211d"),
    plot.background = element_rect(fill = "#ffffff", color = NA),
    panel.background = element_rect(fill = "#ffffff", color = NA),
    legend.background = element_rect(fill = "#ffffff", color = NA),
    plot.caption.position = "plot",
    legend.position = "bottom",
    legend.text = element_text(size = 14)
  )

mapaemu
