I am making a layout where a column contains up to 5 rows. Each row has three columns and I would like to have the width of the first column of each row be completely equal.

I have something like this setup, but the first column in each row always takes up as much size as the text it contains, the size of the column don't scale to match the size of the biggest column in the list of rows.

Each row item:

fun GetRowItem(firstColumnText: String, secondColumnText: String, thirdColumnText: String) {
    Row(
        modifier = Modifier.padding(start = 4.dp, end = 4.dp),
        verticalAlignment = Alignment.CenterVertically
    ) {
        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            Text(
                text = firstColumnText
            )
        }
        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            Text(
                text = secondColumnText
            )
        }
        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            Text(
                text = thirdColumnText
            )
        }
    }
}

Then I have a parent that arranges the rows something like this:

Column(modifier = Modifier.fillMaxWidth().padding(start = 8.dp, end = 8.dp) {
    GetRowItem(firstColumnText = "short", secondColumnText = "something", thirdColumnText = "something")
    GetRowItem(firstColumnText = "Realy long ee", secondColumnText = "something", thirdColumnText = "something")
    GetRowItem(firstColumnText = "1", secondColumnText = "something", thirdColumnText = "something")
}

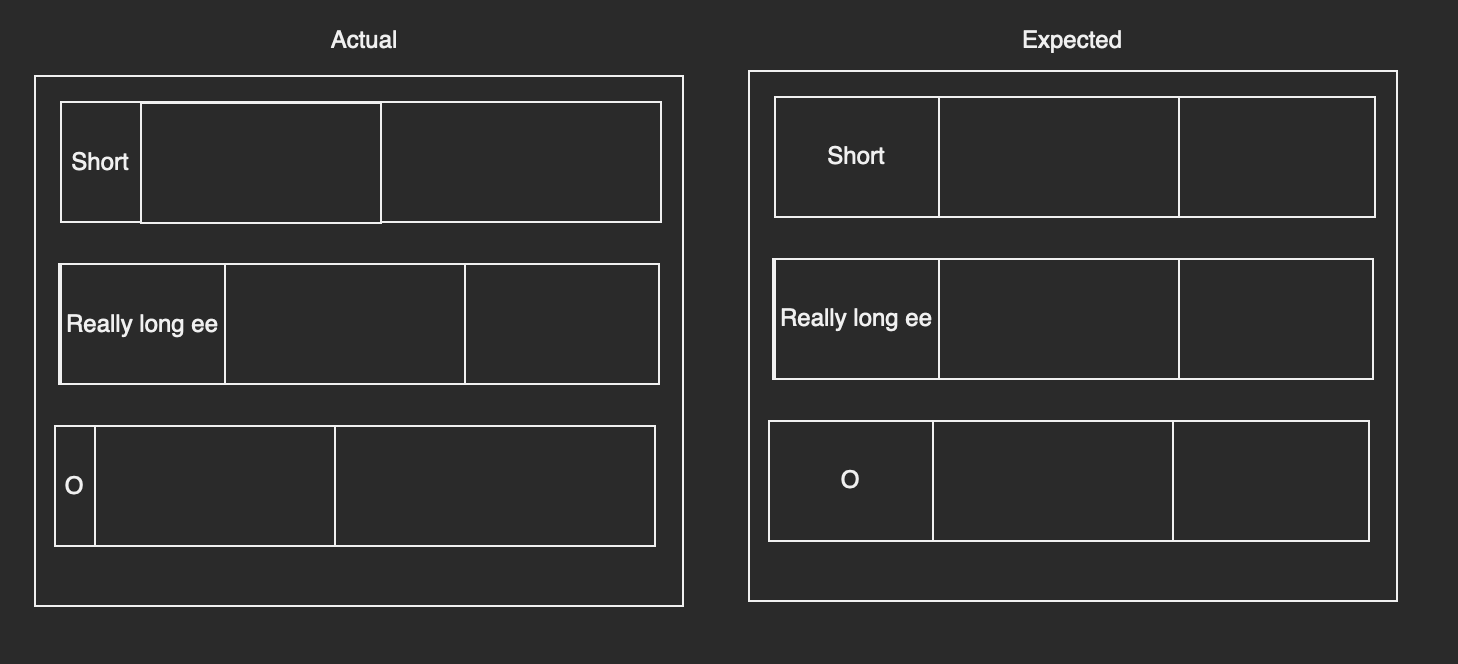

The output of this is not what I am looking for an I am struggling to see how to align the columns in each row item, it looks like "InstrisicSize" might be an option here, but I'm not sure how to get the max size of an arbitrary column in the list of rows and apply it to each column. The image below shows what I am getting vs what I am expecting. I only want to align the first columns, the rest don't matter.

CodePudding user response：

An easy way to achieve this would be to give each of the columns the same weight.

Column(modifier = Modifier.weight(1f)){
 // text
}

CodePudding user response：

I have found a way to solve your issue

Get Row Item

@Composable
fun GetRowItem(firstColumnText: String, secondColumnText: String, thirdColumnText: String, width: State<Int>, widthCallback: (Int) -> Unit) {

    val widthInDp = with(LocalDensity.current) {
        width.value.toDp()
    }

    Row(
        modifier = Modifier.padding(start = 4.dp, end = 4.dp),
        verticalAlignment = Alignment.CenterVertically
    ) {
        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            if (widthInDp == 0.dp) {
                Text(
                    text = firstColumnText,
                    modifier = Modifier.onGloballyPositioned {
                        widthCallback(it.size.width)
                    }
                )
            }else {
                Text(
                    text = firstColumnText,
                    modifier = Modifier.width(width = widthInDp)
                )
            }
        }

        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            Text(
                text = secondColumnText
            )
        }
        Column(
            modifier = Modifier.padding(end = 4.dp),
        ) {
            Text(
                text = thirdColumnText
            )
        }
    }

}

Parent code that holds the row

           Surface(color = MaterialTheme.colors.background) {
                    val width = remember {
                        mutableStateOf(0)
                    }
                    Column(
                        modifier = Modifier
                            .fillMaxSize()
                            .padding(start = 8.dp, end = 8.dp),
                        verticalArrangement = Arrangement.Center,
                        horizontalAlignment = Alignment.CenterHorizontally
                    ) {
                            GetRowItem(firstColumnText = "short", secondColumnText = "something", thirdColumnText = "something", width = width) {
                                if (it > width.value) {
                                    width.value = it
                                }
                            }
                            GetRowItem(firstColumnText = "Realy long ee", secondColumnText = "something", thirdColumnText = "something", width = width) {
                                if (it > width.value) {
                                    width.value = it
                                }
                            }
                            GetRowItem(firstColumnText = "1", secondColumnText = "something", thirdColumnText = "something", width = width) {
                                if (it > width.value) {
                                    width.value = it
                                }
                            }

                        }
                    }
                }
            }
        }

I'have added surface and modified column to fillMaxSize() so you can test this

CodePudding user response：

maybe it could help

        Column(
            modifier = Modifier
                .fillMaxWidth()
                .weight(1f)
        ) {

        }

if you want the center column to be wider than the left and right column you can set the weight of the center column 2 and left and right 1, or you can set the width of columns for example to 100 dp or 200 dp, and set horizontalArrangement of your row to Arrangement.SpaceBetween to have some margin around the columns
