How to specify aesthetics by group in ggplot

Time:01-27

I would like to compare distributions using geom_density, but I want one of the distributions to have no fill. I can describe more easily using the following example:

library(dplyr)
library(ggplot2)
iris %>% ggplot()
   geom_density(aes(x = Sepal.Width, color = Species, fill = Species), alpha = 0.5)

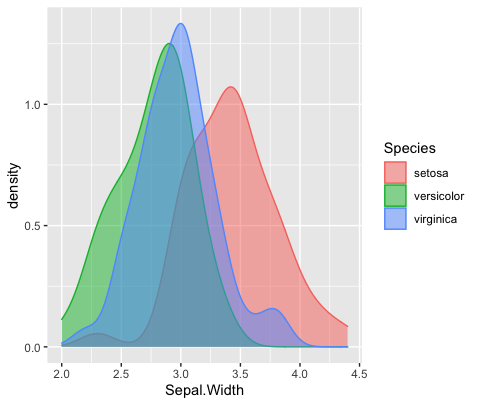

enter image description here

How can I make it so that the virginica species is illustrated with a solid black line and no fill?

CodePudding user response:

iris %>%
  ggplot(aes(Sepal.Width))
  geom_density(aes(fill = Species), alpha = 0.5)
  scale_fill_manual(values = c("setosa" = "red",
                               "versicolor" = "green",
                               "virginica" = "NA"))

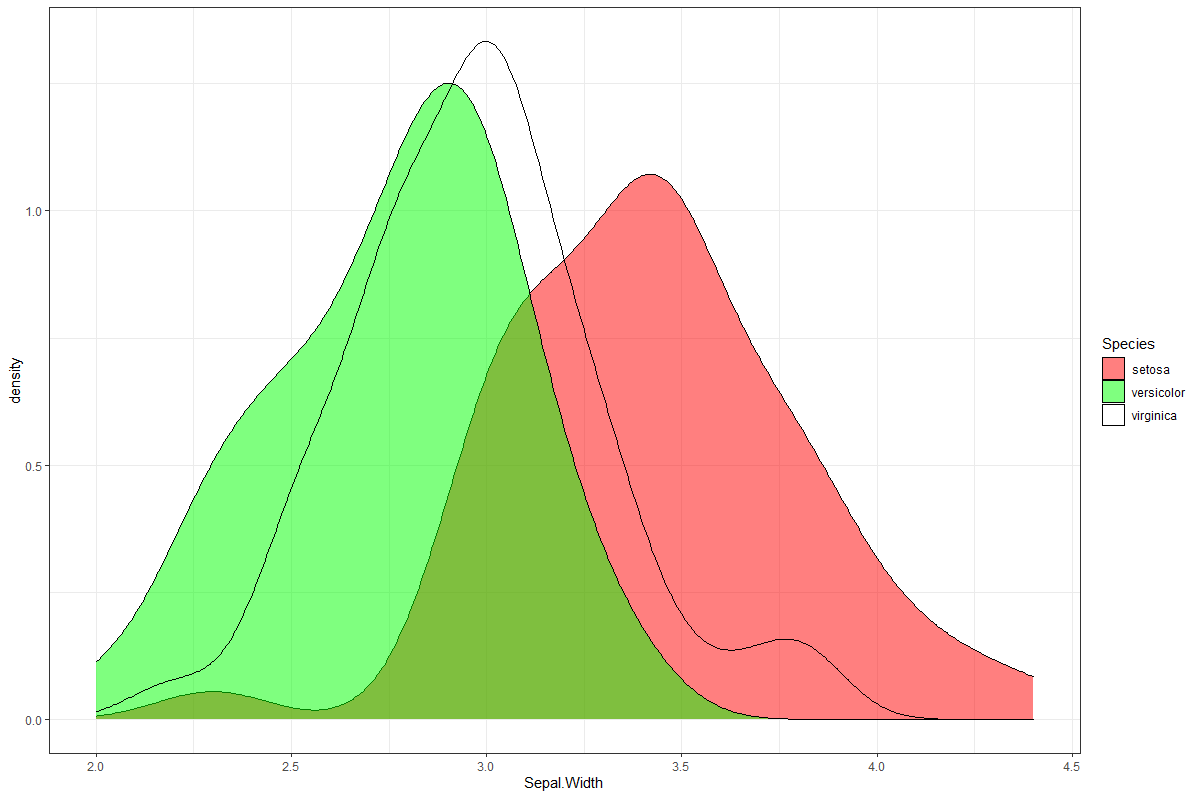

Result:

enter image description here
