Matplotlib: Change distance between two x-axis tick marks on plot-CodePudding

I'm trying to create a scatterplot for a bunch of probability values for two labels, but when I plot it, the labels appear left- and right-justified so there's a bunch of empty space in-between. Is there a way to narrow the gap between the two x-axis tick marks?

Here's the code I used:

x = [1,2]
y = [[0.1, 0.6, 0.9],[0.5,0.7,0.8]]
colors = ['magenta', 'blue']
plt.title("Algorithm comparison - p-values")
for xe, ye,c in zip(x, y,colors):
    plt.scatter([xe] * len(ye), ye, c=c)
plt.xticks([1,2])
plt.axes().set_xticklabels(['Part 1','Part 2'],rotation = 45)

Thanks in advance! Please let me know if I left out any important details.

CodePudding user response：

I have rewritten the code as closely as possible. The main problem is that you generate two axes objects - one with for xe, ye,c in zip(x, y,colors): plt.scatter([xe] * len(ye), ye, c=c) and another one with plt.axes().set_xticklabels(['Part 1','Part 2'],rotation = 45). You can provide the labels instead directly with plt.xticks():

import matplotlib.pyplot as plt

x = [1,2]
y = [[0.1, 0.6, 0.9],[0.5,0.7,0.8]]
colors = ['red', 'blue']
plt.title("Algorithm comparison - p-values")
for xe, ye,c in zip(x, y,colors):
    plt.scatter([xe] * len(ye), ye, c=c)
plt.xticks([1,2], ['Part 1','Part 2'], rotation = 45)

plt.show()

Preferably, you create one axis object in the beginning and plot everything using this axis object:

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
x = [1,2]
y = [[0.1, 0.6, 0.9],[0.5,0.7,0.8]]
colors = ['red', 'blue']
ax.set_title("Algorithm comparison - p-values")
for xe, ye, c in zip(x, y, colors):
    ax.scatter([xe] * len(ye), ye, c=c)
ax.set_xticks(x)
ax.set_xticklabels(['Part 1','Part 2'],rotation = 45)
ax.set_xlim(0.5, 2.5)
plt.show()

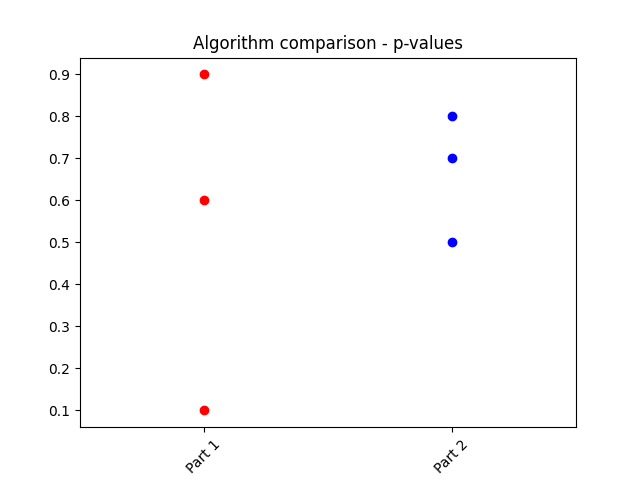

Sample output:

For more explanations regarding differences between the object-oriented approach and the plt interface can be found here and the matplotlib documentation.
