I've got an SVG map and I want to show a specific city using ID in HTML with specified width and height. How can I accomplish this?

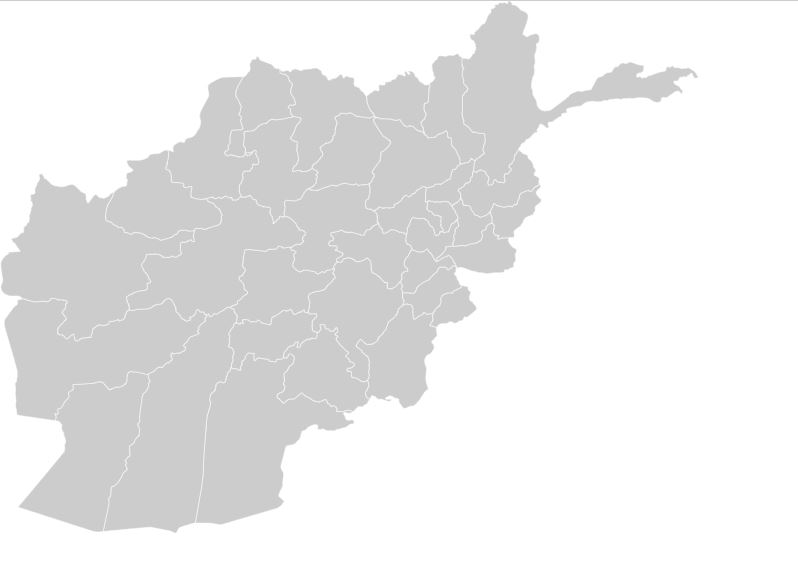

Here is the SVG Image:

<?xml version="1.0" encoding="utf-8"?>
<!-- (c) ammap.com | SVG map of Afghanistan - High -->
<svg xmlns="http://www.w3.org/2000/svg" xmlns:amcharts="http://amcharts.com/ammap" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1"
>
    <defs>
        <style type="text/css">
            .land
            {
                fill: #CCCCCC;
                fill-opacity: 1;
                stroke:white;
                stroke-opacity: 1;
                stroke-width:0.5;
            }
        </style>

        <amcharts:ammap projection="mercator" leftLongitude="60.517000" topLatitude="38.490877" rightLongitude="74.889862" bottomLatitude="29.377200"></amcharts:ammap>
    </defs>
    <g>
        <path id="AF-PIA" title="Paktya"  d="M457.09,266.51L454.16,264.78L453.82,264.65L453.52,264.58L453.25,264.56L452.99,264.64L452.7,264.83L451.01,266.9L448.31,268.59L447.77,268.79L447.19,268.77L447.02,268.56L447.01,268.17L447.07,267.74L447.1,267.38L447.03,267.09L446.86,266.89L446.48,266.67L446.04,266.5L444.39,266.1L442.23,265.94L441.63,266L440.81,265.99L440.34,266.07L439.88,266.22L438.81,266.89L438.5,267.21L438.11,268.39L437.39,269.89L436.89,270.59L436.07,271.52L435.53,272L434.94,272.34L433.05,274L432.78,274.28L430.19,277.03L429.84,277.74L429.57,278.1L428.03,279.16L423.18,281.44L418.47,284.98L417.81,285.49L417.21,286.12L416.45,287.68L415.91,289.28L414.98,290.96L414.34,291.52L414.02,291.74L413.46,292.02L412.81,292.24L412.05,292.36L411.47,292.36L410.47,291.94L409.71,291.8L402.52,291.74L402.35,293.86L402.44,295.92L402.56,297L402.75,297.7L403.33,298.79L403.76,299.84L403.87,300.41L403.81,300.91L402.63,303.52L402.35,304.52L405.89,303.21L407.14,303L408.05,303.51L408.56,303.61L408.92,303.52L409.29,303.36L409.56,303.33L409.81,303.37L410.89,303.86L411.16,304.07L411.35,304.28L411.87,305.3L412.64,306.36L412.8,306.68L412.87,307.07L412.88,307.67L412.68,310.41L412.72,311.59L413.14,315L413.12,315.31L413.07,315.59L413.06,316.08L413.25,316.72L413.5,318.04L413.73,318.42L413.87,318.45L414.03,318.44L414.34,318.39L415.06,318.09L415.74,317.66L417.05,316.41L419.02,315.24L421.41,314.16L423.07,313.11L423.47,312.7L423.49,312.54L423.47,312.38L423.43,312.2L423.39,311.96L423.38,311.6L423.49,311.45L423.64,311.38L423.93,311.4L424.25,311.48L424.44,311.57L424.64,311.72L424.78,311.86L425.17,312.18L426.63,313.34L427.64,313.54L428.52,313.41L430.74,312.62L431.52,312.54L431.86,312.71L432.05,312.83L433.02,313.15L433.26,311.96L433.42,311.68L434.08,310.94L434.93,309.91L435.13,309.19L435.26,308.56L435.51,308.17L438.13,305.82L439.25,305.15L439.56,304.77L440.02,304.04L440.29,303.35L441.43,299.65L440.61,298.76L440.56,298.05L440.83,297.36L441.61,295.85L441.87,295.14L443.36,293.89L444.1,293.43L444.83,293.07L447.82,292.16L451.16,291.83L451.29,291.85L451.36,291.89L452.16,292.51L453.62,290.29L453.88,290.06L454.33,289.76L454.71,289.71L455.86,289.3L456.66,288.79L457.78,288.3L459.18,287.45L460.38,287.06L460.71,286.84L461.52,285.94L461.75,285.48L461.88,285.07L461.89,284.22L460.73,284.06L460,283.6L459.5,282.48L459.16,281.34L458.73,280.46L457.58,278.76L457.15,277.83L456.5,275.62L456.07,274.85L454.65,273.42L454.35,272.56L454.99,271.71L455.85,270.82L455.94,269.95L455.78,269.07L455.88,268.15L456.69,267.33L457.47,267.06L457.09,266.51z"/>
        <path id="AF-WAR" title="Wardak"  d="M384.44,232.47L383.52,232.32L383.24,232.24L383.03,231.97L382.86,231.71L382.55,229.98L382.47,229.09L382.33,228.63L382.09,228.07L379.59,225.53L379.38,225.05L379.18,224.38L379.08,223.22L378.77,222.11L373.18,225.02L371.81,226.05L371.11,227.21L370.1,228.31L369.57,228.75L369.18,228.91L368.64,228.6L368.28,228.5L367.86,228.51L367.3,228.64L366.95,228.86L366.62,229.22L366.3,229.71L365.35,230.8L365.15,231.1L364.9,231.84L363.81,234.16L360.83,233.82L351.91,231.29L350.78,231.09L348.95,231.34L347.56,231.3L346.76,231.18L345.83,230.9L344.34,230.76L343.94,230.64L343.71,230.41L343.47,230.11L343.08,229.79L342.15,229.38L341.6,229.21L341.15,229.14L340.86,229.18L340.57,229.28L339.2,230.12L338.89,230.25L334.64,231.11L331.94,231.48L331.54,231.62L331.06,231.86L330.89,232.09L330.64,232.73L331.12,234.37L331.63,235.1L333.08,236.32L333.36,236.74L333.47,237.19L333.41,238.21L333.32,238.56L333.15,238.81L332.31,239.48L332.07,239.6L331.8,239.67L330.5,239.81L330.19,239.93L329.89,240.12L329.64,240.37L329.4,240.7L329.15,241.14L328.91,241.72L328.6,242.66L328.61,243.38L328.73,243.88L329,244.23L329.31,244.48L329.65,244.66L329.98,244.79L333.36,245.1L335.49,244.99L335.98,245.03L336.43,245.17L336.92,245.55L337.16,245.94L337.29,246.35L337.34,246.72L337.33,247.1L337.27,247.41L337.15,247.64L337,247.82L336.79,247.95L336.61,248.04L336.22,248.15L335.14,248.76L335.03,248.99L335,249.3L335.18,249.45L335.46,249.55L337.02,249.74L337.62,249.91L342.4,252.09L342.97,252.54L343.14,252.88L342.66,253.39L341.96,254.34L341.81,254.66L341.6,255.23L341.47,255.42L341.27,255.58L337.37,257.09L337.03,257.42L336.71,257.92L336.41,259.11L336.41,259.73L336.61,260.23L337.48,261.04L339.77,261.35L340.58,261.34L342.09,260.82L342.33,260.64L342.43,260.45L342.72,259.11L342.91,258.82L343.23,258.5L343.85,258.01L344.28,257.78L344.67,257.65L347.96,256.95L349.18,256.89L350.67,257.23L352.47,257.92L353.97,258.96L355.19,260.12L355.72,260.39L356.38,260.55L358.62,260.72L359.26,260.68L360,260.53L363.09,259.45L364.48,258.71L365.18,258.13L365.44,258.04L365.78,257.85L365.94,257.71L366.63,257.26L367.69,257.51L368.41,258L369.87,259.38L370.26,259.98L370.51,260.53L370.99,263.15L371.02,263.6L370.94,264.45L370.96,264.94L371.02,265.45L371.18,266.09L371.23,266.52L371.21,266.95L371.14,267.33L371.17,267.84L371.29,268.43L371.72,269.89L371.75,270.71L372.1,271.71L372.59,272.03L373.2,272.2L376.23,273.43L376.48,273.63L376.98,274.49L379.31,275.94L380.02,276.71L380.2,277L384.34,281.37L384.66,281.65L384.95,281.8L385.19,281.81L385.67,281.77L386.1,281.67L387.18,281.63L387.63,282.91L387.62,283.24L387.57,283.7L387.17,284.87L386.94,285.83L386.93,286.34L387,286.71L387.09,286.84L387.22,286.99L387.65,287.29L388.27,287.57L390.21,288.05L390.72,288.05L391.52,287.96L391.94,287.79L396.04,285.38L396.37,285.11L398.42,282.56L399.58,281.42L401.21,279.57L401.41,279.23L401.79,278.36L402.11,276.27L402.03,275.83L401.86,275.29L401.36,274.66L401.28,274.5L401.26,274.41L401.38,274.25L402.02,273.01L402.57,272.26L403.76,271.24L404.42,270.88L405.11,270.6L407.44,270.12L407.87,269.97L408.07,269.8L408.13,269.57L408.13,269.46L408.04,269.13L407.34,267.38L407.13,267.14L406.62,266.7L406.01,266.3L404.89,265.29L404.42,264.6L404.18,263.94L404.35,261.84L404.81,259.85L405.84,257.61L406.7,256.46L407.73,255.5L408.4,255.04L409.83,251.64L410.79,250.14L412.06,248.68L411.8,247.79L410.95,244.93L409.29,243.69L408.95,243.52L407.4,243.12L407.13,243L406.92,242.77L406.75,242.39L406.5,241.62L406.28,241.11L406.07,240.74L405.89,240.24L405.8,239.53L405.88,237.92L406.38,235.96L406.3,234.66L406.9,232.62L406.28,232.8L405.52,232.66L404.03,231.99L402.35,231.51L401.64,231.15L401.26,231.1L399.79,231.19L399.15,231.12L398.45,230.85L397.58,230.18L397.34,230.04L397.13,229.95L396.28,229.72L395.6,229.41L392.02,228.53L391.54,228.54L390.85,228.83L387.99,230.71L386.5,231.46L385.7,231.71L385.44,231.87L385.03,232.3L384.78,232.43L384.44,232.47z"/>
    </g>
</svg>

I want to display a city by ID from the above map. The result should look like the following image for ID="AF-PIA":

I've tried the following but failed to get a city:

<object data="/assets/img/illustrations/afghanistan.svg#AF-PIA" type="image/svg xml"
width="100%" height="100%">

NOTE: I have limited the number of cities to two in the above SVG code.

CodePudding user response：

The 17.3 Linking into SVG content: IRI fragments and SVG views section of the SVG specification may contain what you need.

For instance, you can get the bounds of the SVG element(s) you want to focus on and use a link such as:

data="/assets/img/illustrations/afghanistan.svg#viewBox(402.35,264.55,59.54,53.89)

You can get the bounds by highlighting the element in the web inspector. Then type $0.getBBox() into the console.

That's what I did to get the values I've used above. These bounds values are for #AF-PIA.

CodePudding user response：

Define a <svg> element inside your HTML page, giving it the desired size, and reference the path from the external SVG:

<style>
#city-wrapper {
  width: 500px;
  height: 500px;
  fill: #CCCCCC;
}
</style>

<svg id="city-wrapper" viewBox="402.35 264.55 59.54 53.89">
    <use href="/assets/img/illustrations/afghanistan.svg#AF-PIA" />
</svg>

Note that you will need the viewBox in advance of writing that code. Paul LeBeau's answer told you how to to that. The viewBox makes sure the path is blown up to fill the wrapper element, otherwise it would remain so small that the rest of the map would also fit.

If you are willing to write a bit of Javascript, you can also leave out the viewBox attribute initially and add it after the reference has been loaded. The needed bounding box can then be queried by script:

window.addEventListener('load', function() {
    const svg = document.querySelector('#city-wrapper');
    const {x, y, width, height} = svg.querySelector('use').getBBox();
    svg.setAttribute('viewBox', [x, y, width, height].join(' '));
});
