Time components of numdifftools.Jacobian should not be equal to zero-CodePudding

The

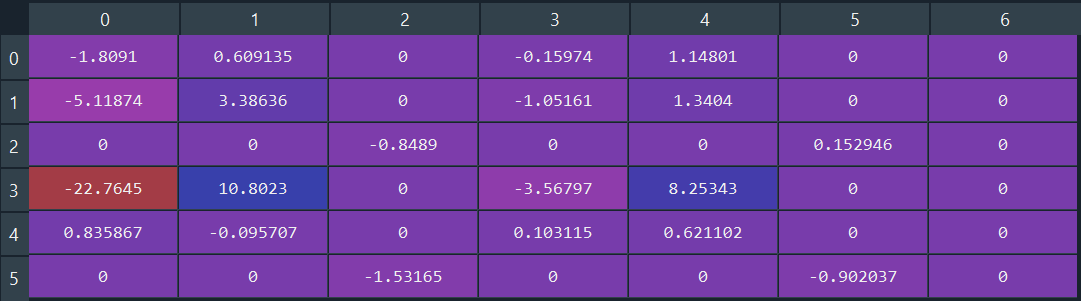

To compute this matrix, I made a function (see propagation function) that takes as a variable a vector composed of X_0 and T called X, and returns X_f. Then, this function is combined with numdifftools.Jacobian to compute the Jacobian matrix. When I run my code (see below), the Jacobian matrix is properly calculated for the partial derivatives of X_f relative to X_0 (first 6 columns), but the very last column with partial derivatives of X_f relative to T are equal to zero. I know this cannot be because those derivatives are actually the final velocities and accelerations at t=T.

How come the initial condition X_0 is taken into account in the evolution of X_f and the time T is not? That does not make any sense. In solve_ivp, it looks as if the timespan (tspan=(0,T)) is completely ignored but the initial condition (y0=X_0) is not. Why is that? Am I not using solve_ivp and numdifftools.Jacobian properly?

If my question needs more details, please let me know, I'll happily provide more explanations by the end of day.

import numpy as np from scipy.integrate import solve_ivp import numdifftools as nd def rhs_CR3BP(t, X0, mu): """Integrates the CR3BP equations of motion""" x, y, z, v_x, v_y, v_z = X0 r = np.sqrt((x-1 mu)**2 y**2 z**2) d = np.sqrt((x mu)**2 y**2 z**2) a_x = 2*v_y x - (1-mu)*(x mu)/d**3 - mu/r**3*(x-1 mu) a_y = -2*v_x y - (1-mu)*y/d**3 - mu*y/r**3 a_z = -(1-mu)*z/d**3 - mu*z/r**3 return np.array([v_x, v_y, v_z, a_x, a_y, a_z]) def propagation(X, mu): X_0 = X[0:6] T = X[6].real sol = solve_ivp(fun=rhs_CR3BP, t_span=(0, T), y0=X_0, method='RK45', rtol=1e-10, atol=1e-10, args=(mu,), dense_output=True) X_f = sol.y[:, -1] return X_f T = 0.732 # period x, y, z, vx, vy, vz = 1.085, 0, 0, 0, -0.464, 0 # position and velocity components X0 = [x, y, z, vx, vy, vz] # initial state vector X = np.array([x, y, z, vx, vy, vz, T]) # X_0 and T mu = 0.012 # arbitrary parameter f = lambda X: propagation(X, mu) f = nd.Jacobian(f, method='complex') DF = np.real(f(X))

CodePudding user response：

Replacing nd.Jacobian(f, method='complex') with nd.Jacobian(f, method='central') yields the following matrix:

array([[ -1.809, 0.609, 0. , -0.16 , 1.148, 0. , 0.027], [ -5.119, 3.386, 0. , -1.052, 1.34 , 0. , 0.468], [ 0. , 0. , -0.849, 0. , 0. , 0.153, 0. ], [-22.765, 10.802, 0. , -3.568, 8.253, 0. , 1.907], [ 0.836, -0.096, 0. , 0.103, 0.621, 0. , -0.156], [ 0. , 0. , -1.532, 0. , 0. , -0.902, 0. ]])

These entries for df/dT in the final column look much more plausible.

All of your variables appear to be real-valued, but you have requested method=complex in your call to Jacobian. This is asking for trouble, for reasons I shall expand on below.

Real-differentiable vs complex-differentiable

As stated in the numdifftools docs:

Complex methods are usually the most accurate provided the function to differentiate is analytic

An analytic function is one that can be represented by a power series, and there is a special relationship between analytic functions and complex-differentiable functions: these two classes of functions are the same (skipping some technical details). In contrast, there are many functions that are differentiable along the real line but which are not analytic.

Importantly, just because a function is differentiable for real numbers, does not mean it is also complex-differentiable (i.e. analytic). Your function is guaranteed to be real-differentiable with respect to T, but there is no guarantee that it will be complex-differentiable for complex T.

Complex-differentiable functions are a much more select group than real-differentiable functions, and they have many properties that are not true of all real-differentiable functions (besides being analytic). For example, if a complex function can be differentiated once, it can be differentiated infinitely many times. An example of a real-differentiable function that is not complex-differentiable is f(x) = |x|**3.
