I want to compare a number of violinplots. But I am running into a problem for cases where a group is empty: I would like an empty slot plotted so its easier to compare multiple plots.

lets say I have a dataframe:

df = data.frame("x"=rep(c(1:4), 3), y=rep(c(1:4), each=3))
df$y[df$x==3] = NA

so all of group 3 is NA and I use vioplot to plot it:

library(vioplot)
vioplot(y ~ x , df)

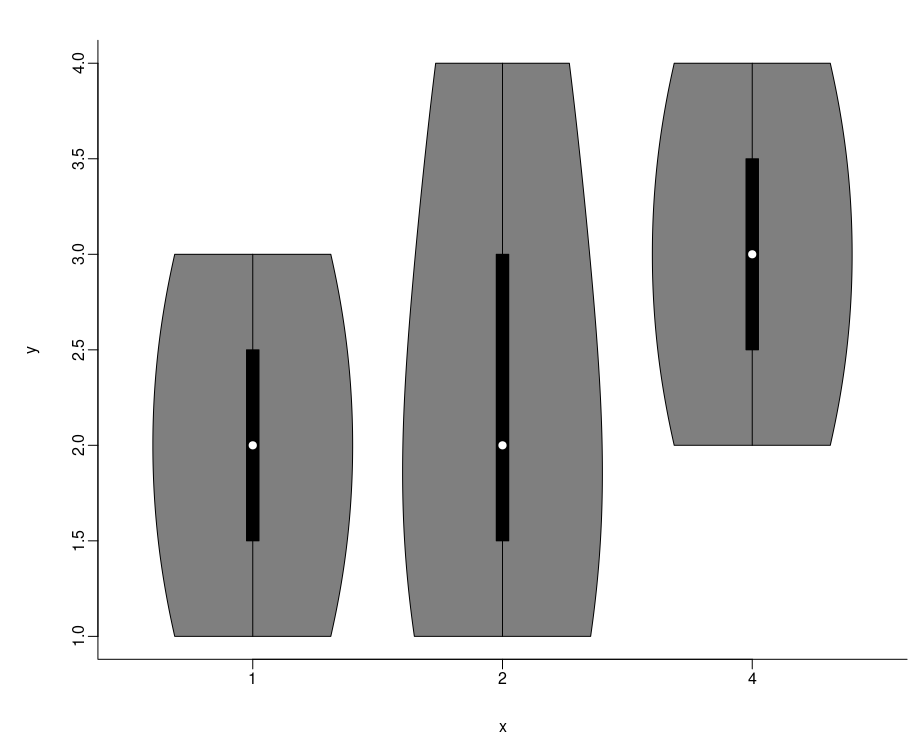

then I get the plot without group 3. Is there a way I can plot all groups 1:4 but 3 is just empty?

Thanks

CodePudding user response：

For the graph, can you change the NAs to 0? e.g.

df <- df %>%
  zoo::na.fill(0)

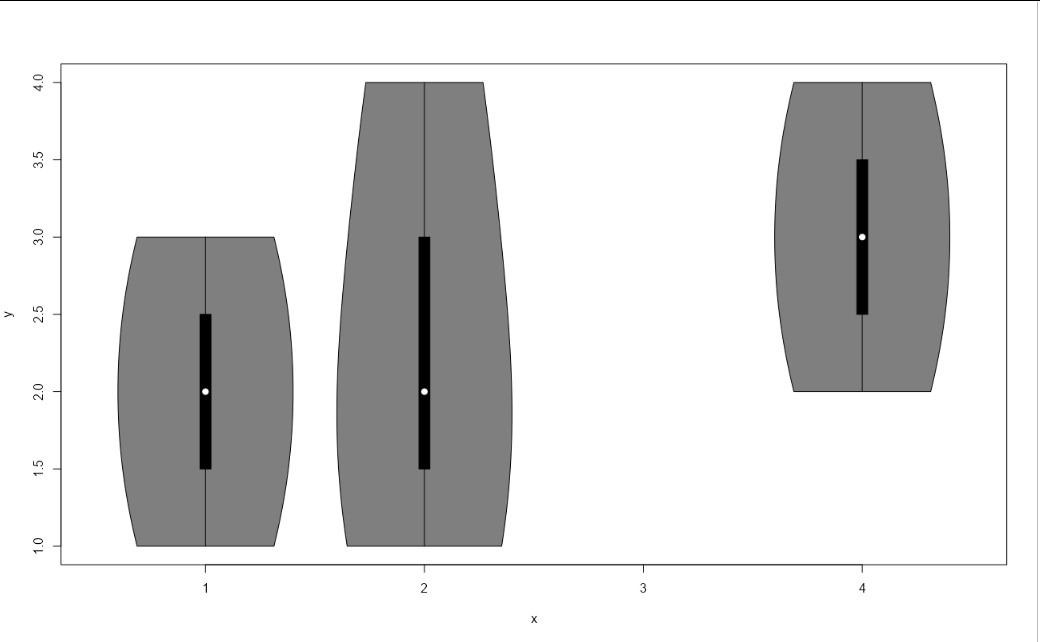

vioplot(y ~ x , df, ylim = c(1, 4))

CodePudding user response：

Or, using ggplot...

df %>% ggplot()   geom_violin(aes(x=as.factor(x), y=y))

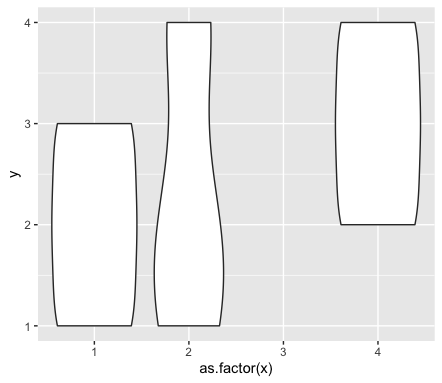

Gives

as does

df %>% ggplot()   geom_violin(aes(x, y=y, group=x))
