I want to create a hexagon that surrounds the plot created from the following code:

  data.frame(x=rep(2000:2001,each=3),
           y=rep(c("Jan","Feb","Mar"),2)) %>%
  ggplot()
  geom_point(aes(factor(x),y),shape=21,size=25)
  coord_fixed()

I want the output something like this:

I first looked into how we could change the panel shape itself but couldn't find any solutions. Then I looked into creating a hexagon using ggforce package but with no luck either. I tried:

ggforce::geom_regon(aes(x0= ? ,y0= ?,sides=6,angle=0,r= ?))

but couldn't find apropriate values for the x0,y0 and r arguments.

CodePudding user response：

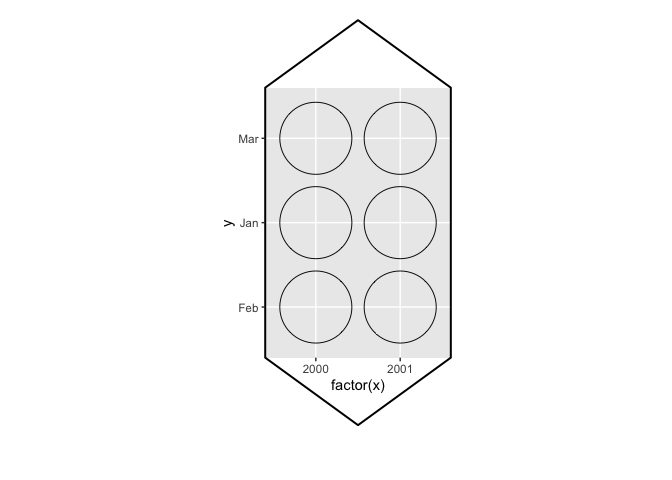

One option would be to add a polygon via annotation_custom which requires to set clip="off" and to increase the plot margins. A drawback is that the last step involves some fiddling to get the right values for the margins:

library(ggplot2)
library(grid)

df <- data.frame(
  x = rep(2000:2001, each = 3),
  y = rep(c("Jan", "Feb", "Mar"), 2)
)

base <- ggplot(df)
  geom_point(aes(factor(x), y), shape = 21, size = 25)
  coord_fixed(clip = "off")

grob <- grid::polygonGrob(
  x = c(0, 0.5, 1, 1, 0.5, 0), y = c(0, -.25, 0, 1, 1.25, 1),
  gp = grid::gpar(fill = NA, lwd = unit(2, "lines"))
)

base
  annotation_custom(grob = grob)
  theme(plot.margin = margin(t = 66, r = 5.5, b = 66, l = 5.5, "pt"))
