Create a tensorflow dataset based on a "multi-input"-CodePudding

Problem

Create a tf.data.Dataset object from a numpy array that contains multiple X array.

Explaination

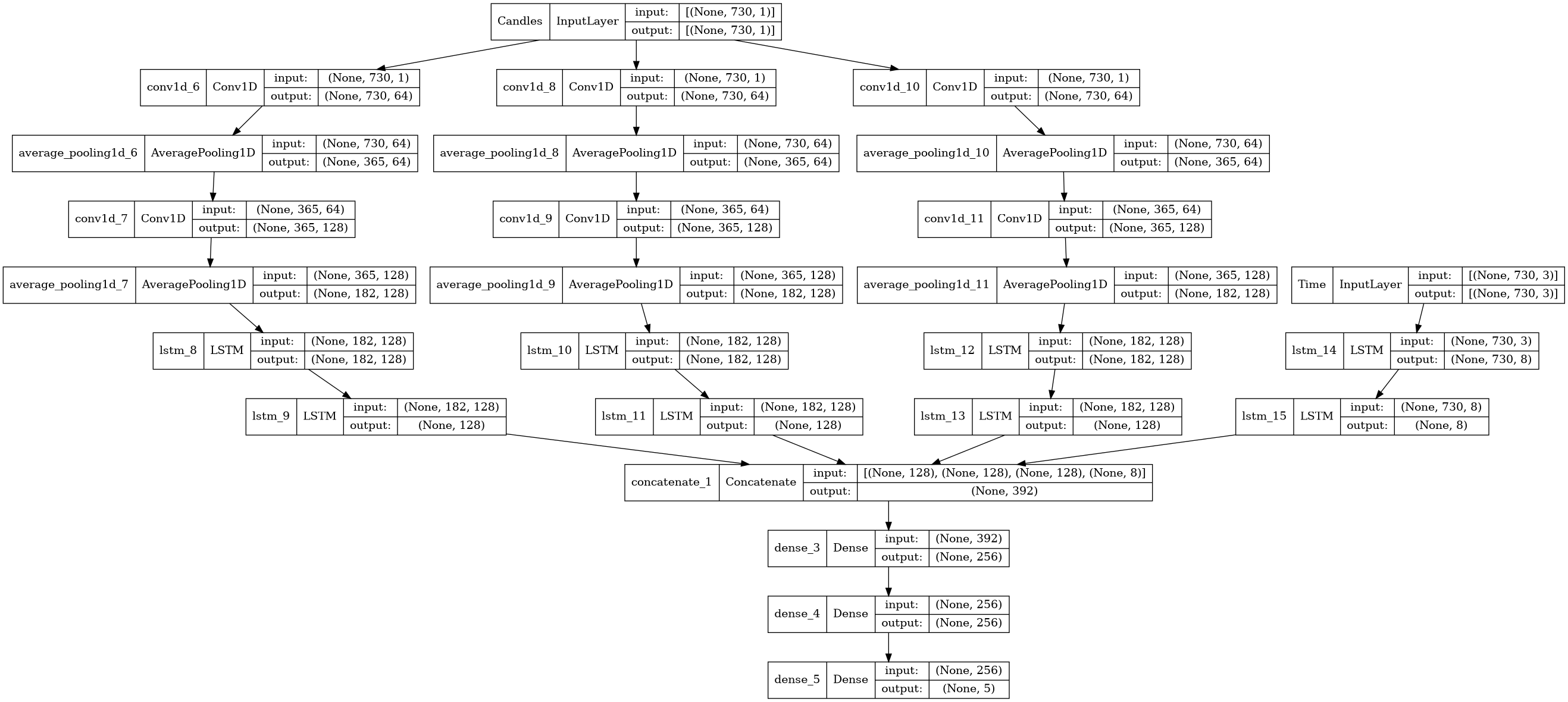

This is the model that I'm using, some layers eliminated for reduce the image:

As you can see, the model contains two different input:

The data itself (shape [Batch, 730, 1]) (from now called x_train)
The timestamp (shape [Batch, 730, 3]) (from now called ts_train)

The problem that I'm aiming to solve is a timeseries forecast.
The x_train contains a single feature.
The ts_train contains three features that rappresent Year,Month,Day of the misuration.

I can fit/evaluate/predict the model without any particular problem.
Example of fit:

model.fit(
    [x_train, ts_train],
    y_train,
    batch_size=1024,
    epochs=2000,
    validation_data=([x_test, ts_test], y_test),
    callbacks=callbacks,
)

Example of predict:

model.predict([x_test[0].reshape(1, window, 1), ts_test[0].reshape(1, window, 3)])

However, i can't understand how to cast the numpy array that rappresent my dataset into a tensorflow dataset.

Using the following code:

tf.data.Dataset.from_tensor_slices([x_train, ts_train], y_train)

I'll receive the following error:

ValueError: Can't convert non-rectangular Python sequence to Tensor.

How can I cast my 2 x -> 1 y into a tf.data.Dataset ?

CodePudding user response：

Maybe try using tuples like this:

import numpy as np
import tensorflow as tf

x_train = np.random.random((50, 730, 1))
ts_train = np.random.random((50, 730, 3))
y_train = np.random.random((50, 5))

ds = tf.data.Dataset.from_tensor_slices(((x_train, ts_train), y_train))

for (x, t), y in ds.take(1):
  print(x.shape, t.shape, y.shape)

(730, 1) (730, 3) (5,)

And here is an example model:

input1 = tf.keras.layers.Input((730, 1))
input2 = tf.keras.layers.Input((730, 3))
x = tf.keras.layers.Flatten()(input1)
y = tf.keras.layers.Flatten()(input2)
outputs = tf.keras.layers.Concatenate()([x, y])
outputs = tf.keras.layers.Dense(5)(outputs)
model = tf.keras.Model([input1, input2], outputs)
model.compile(optimizer='adam', loss='mse')
model.fit(ds.batch(10), epochs=5)
