Plots in function documentation do not display correctly-CodePudding

I am writing an R-package and its documentation using roxygen2 to document my functions and pkgdown to create a github page.

The package is about rasters, so I have included some raster plot in the examples of my function documentation.

When the examples run in the console everything looks fine. When they run via the pkgdown package (using build_reference() or build_site()) the plot display on the github changes.

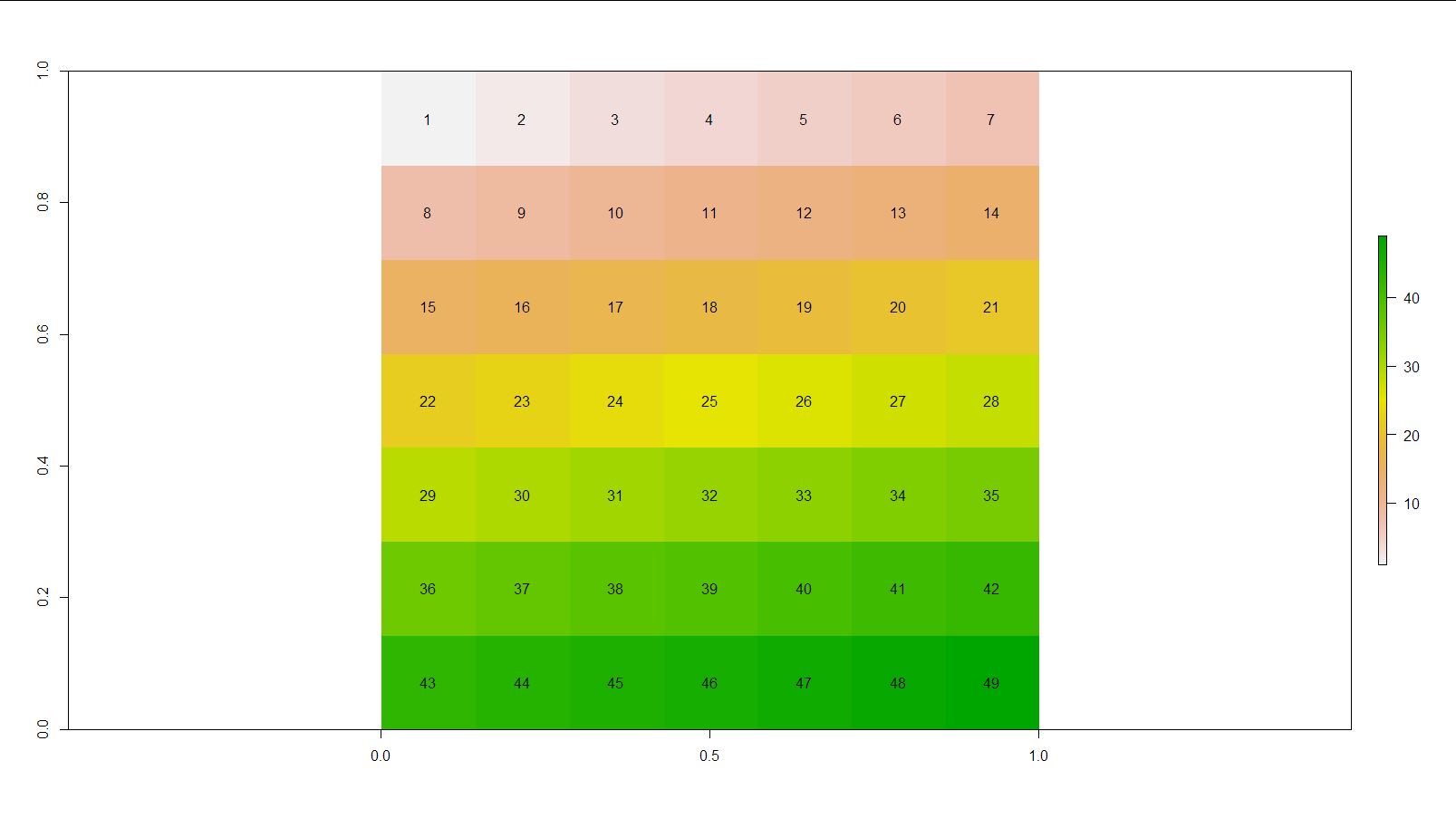

This is the correct plot

library(raster)

r <- raster(matrix(1:49, nrow = 7, byrow = TRUE))
plot(r)
text(r)

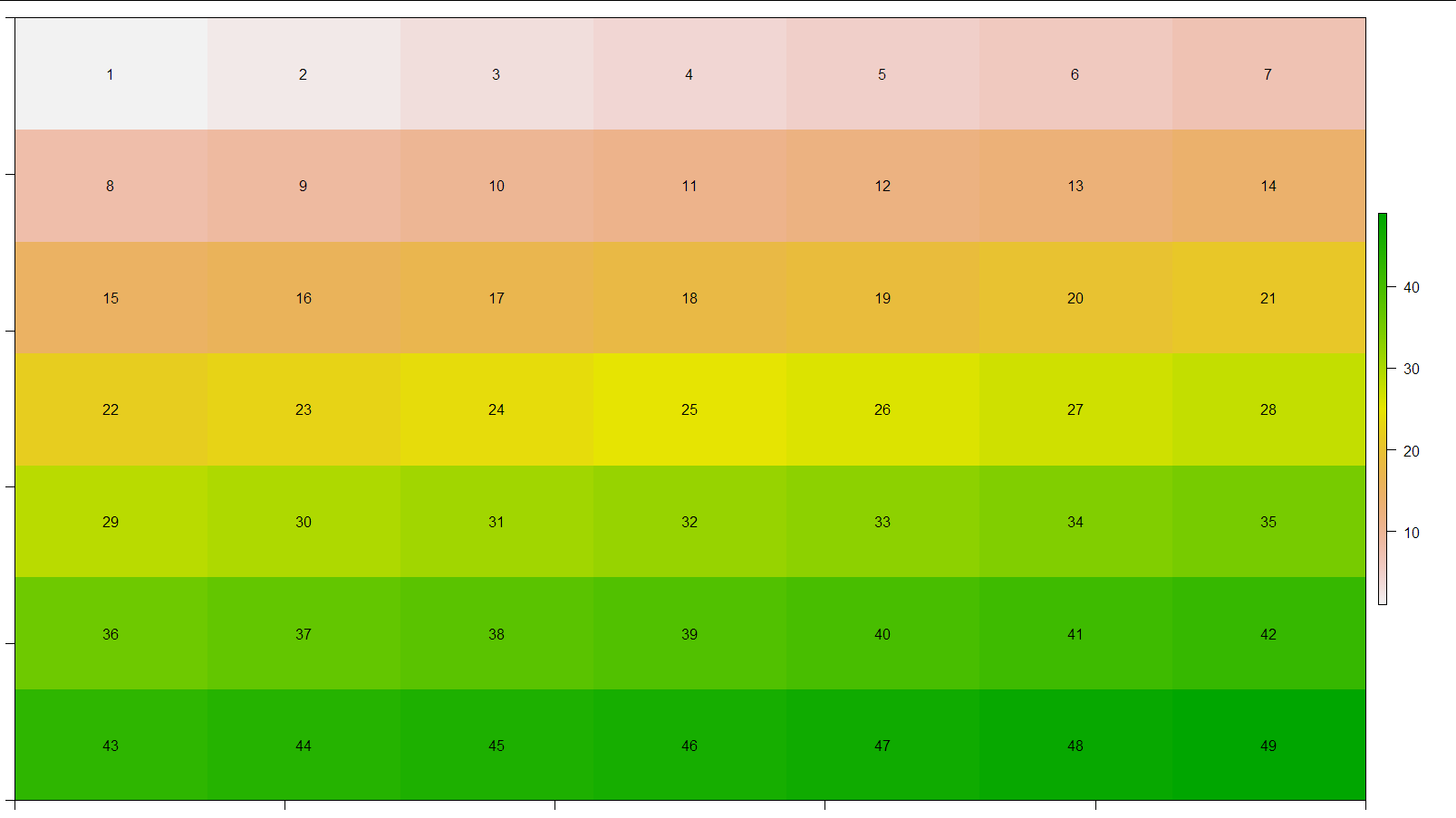

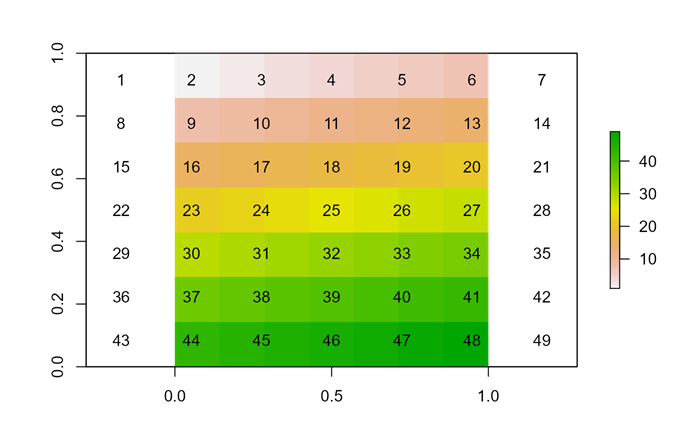

This is how the plot is rendered on the github page in the reference section.

Note that if the same plots are included in a vignette and not in the documentation they are rendered just fine.

I am a bit at a lost here. Do you have any suggestion on why this is happening and how can I correct this behavior?

CodePudding user response：

I believe that this behavior is owed to the fact the raster plot fix the aspect ration to 1 while the text function plots on the entire plotting area.

I still do not understand why things are fine in the vignettes and not in the documentation but a workaround is to set the argument asp = NA.

library(raster)

r <- raster(matrix(1:49, nrow = 7, byrow = TRUE))
plot(r, asp=NA)
text(r)

With this setting the plot is showed fine everywhere on the site.

CodePudding user response：

It looks like pkgdown changes a par after plotting the raster. I think this may not happen if you use terra instead of raster --- and that would be a much better choice if you write a new package.
