What’s the best way to dynamically lock scrolling in a UIScrollView to the vertical axis depending on the zoom scale?
I want to allow scrolling a large canvas in any direction when zoomed out (scrollView.zoomScale < 1.0)
but prevent horizontal scrolling completely when zoomed in (scrollView.zoomScale == 1.0).
The challenge here is that UIScrollView doesn’t seem to have a built-in setting to limit scrolling to one direction if the contentView is larger than the viewport in both directions. I would like to use the same large contentView but disallow horizontal scrolling when zoomed in.
(I know about scrollView.isDirectionalLockEnabled, but that’s not what I need: It only checks whether the user’s pan gesture has a dominant scrolling direction and then dynamically locks scrolling to either direction.)
Thanks!
CodePudding user response：
If I understand your goal correctly...
- You have a "contentView" that is larger than the scroll view
- if the zoom scale is 1.0, only allow vertical scrolling
- if the zoom scale is less than 1.0, allow both vertical and horizontal scrolling

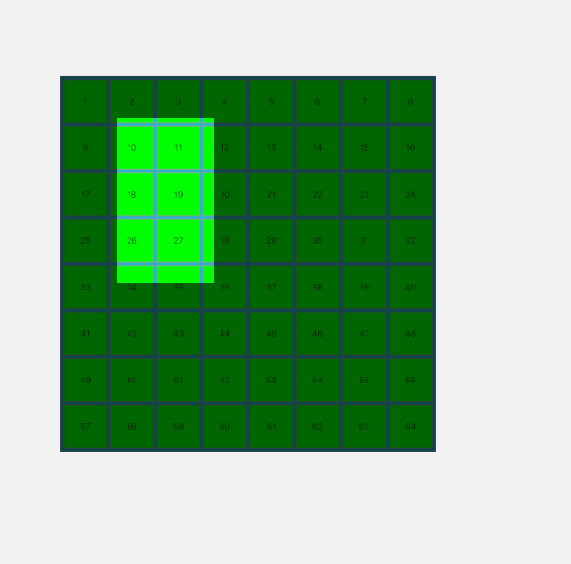

So, if we have a scroll view frame size of 388 x 661 and a "contentView" with a size of 2100 x 2100, we start like this at zoom scale 1.0 (the bright-green is the scroll view frame):
and only vertical scrolling is allowed.

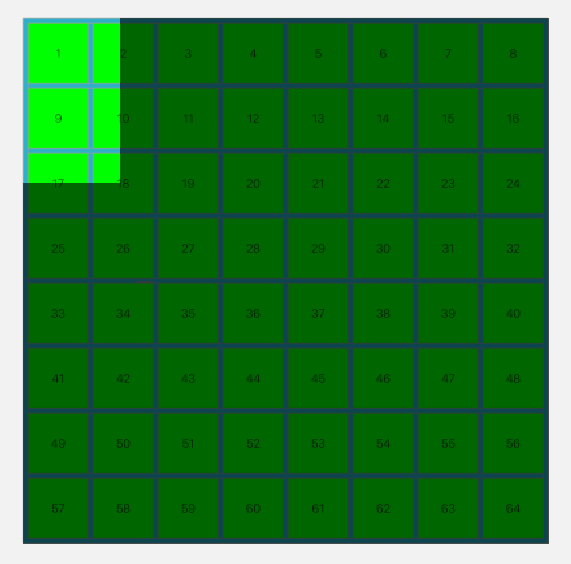

If the user zooms-out to, say, 0.8 scale:
both vertical and horizontal scrolling is allowed.

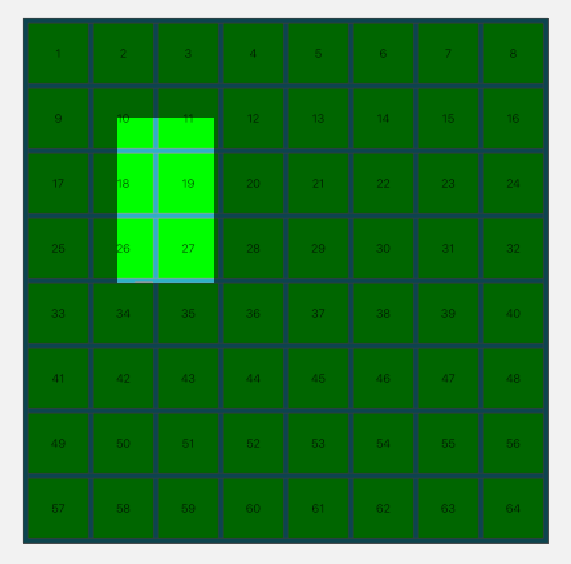

If the user then zooms-in back to 1.0 scale:
we're back to only vertical scrolling.
You can accomplish that by conforming your controller to UIScrollViewDelegate, assign self as the scrollView's delegate, add a "last scrollView content offset X" var, and then implement scrollViewDidScroll():
var lastOffsetX: CGFloat = 0
func scrollViewDidScroll(_ scrollView: UIScrollView) {
// if zoom scale is 1.0
// don't allow horizontal scrolling
if scrollView.zoomScale == 1.0 {
scrollView.contentOffset.x = lastOffsetX
return
}
// zoom scale is less than 1.0, so
// allow the scroll and update lastX
lastOffsetX = scrollView.contentOffset.x
}
Here's a complete example you can try out:
class ExampleViewController: UIViewController, UIScrollViewDelegate {
let scrollView: UIScrollView = {
let v = UIScrollView()
v.backgroundColor = .systemYellow
return v
}()
let contentView: UIView = {
let v = UIView()
v.backgroundColor = .systemTeal
return v
}()
let infoLabel: UILabel = {
let v = UILabel()
return v
}()
// we'll use this to track the current content X offset
var lastOffsetX: CGFloat = 0
override func viewDidLoad() {
super.viewDidLoad()
view.backgroundColor = .systemBackground
scrollView.addSubview(contentView)
view.addSubview(scrollView)
view.addSubview(infoLabel)
[contentView, scrollView, infoLabel].forEach {
$0.translatesAutoresizingMaskIntoConstraints = false
}
// let's add a 8 x 8 "grid" of labels to the content view
let outerVerticalStack = UIStackView()
outerVerticalStack.axis = .vertical
outerVerticalStack.spacing = 20
outerVerticalStack.translatesAutoresizingMaskIntoConstraints = false
contentView.addSubview(outerVerticalStack)
var j: Int = 1
for _ in 1...8 {
let rowStack = UIStackView()
rowStack.axis = .horizontal
rowStack.spacing = 20
rowStack.distribution = .fillEqually
for _ in 1...8 {
let v = UILabel()
v.font = .systemFont(ofSize: 48.0, weight: .regular)
v.text = "\(j)"
v.textAlignment = .center
v.backgroundColor = .green
v.widthAnchor.constraint(equalToConstant: 240.0).isActive = true
v.heightAnchor.constraint(equalTo: v.widthAnchor).isActive = true
rowStack.addArrangedSubview(v)
j = 1
}
outerVerticalStack.addArrangedSubview(rowStack)
}
let safeG = view.safeAreaLayoutGuide
let contentG = scrollView.contentLayoutGuide
NSLayoutConstraint.activate([
scrollView.topAnchor.constraint(equalTo: safeG.topAnchor, constant: 20.0),
scrollView.leadingAnchor.constraint(equalTo: safeG.leadingAnchor, constant: 20.0),
scrollView.trailingAnchor.constraint(equalTo: safeG.trailingAnchor, constant: -20.0),
scrollView.bottomAnchor.constraint(equalTo: safeG.bottomAnchor, constant: -120.0),
contentView.topAnchor.constraint(equalTo: contentG.topAnchor),
contentView.leadingAnchor.constraint(equalTo: contentG.leadingAnchor),
contentView.trailingAnchor.constraint(equalTo: contentG.trailingAnchor),
contentView.bottomAnchor.constraint(equalTo: contentG.bottomAnchor),
outerVerticalStack.topAnchor.constraint(equalTo: contentView.topAnchor, constant: 20.0),
outerVerticalStack.leadingAnchor.constraint(equalTo: contentView.leadingAnchor, constant: 20.0),
outerVerticalStack.trailingAnchor.constraint(equalTo: contentView.trailingAnchor, constant: -20.0),
outerVerticalStack.bottomAnchor.constraint(equalTo: contentView.bottomAnchor, constant: -20.0),
// put the info label below the scroll view
infoLabel.topAnchor.constraint(equalTo: scrollView.bottomAnchor, constant: 20.0),
infoLabel.leadingAnchor.constraint(equalTo: safeG.leadingAnchor, constant: 20.0),
infoLabel.trailingAnchor.constraint(equalTo: safeG.trailingAnchor, constant: -20.0),
])
// we'll update min zoom in viewDidAppear
// (after all views have been laid out)
scrollView.minimumZoomScale = 1.0
scrollView.maximumZoomScale = 1.0
// we need to disable zoom bouncing, or
// we get really bad positioning effect
// when zooming in past 1.0
scrollView.bouncesZoom = false
// assign the delegate
scrollView.delegate = self
// update the info label
updateInfo()
}
override func viewDidAppear(_ animated: Bool) {
super.viewDidAppear(animated)
// update min zoom scale so we can only "zoom out" until
// the content view fits the scroll view frame
if scrollView.minimumZoomScale == 1.0 {
print(contentView.frame.size)
let xScale = scrollView.frame.width / contentView.frame.width
let yScale = scrollView.frame.height / contentView.frame.height
scrollView.minimumZoomScale = min(xScale, yScale)
}
}
func viewForZooming(in scrollView: UIScrollView) -> UIView? {
return contentView
}
func scrollViewDidScroll(_ scrollView: UIScrollView) {
// if zoom scale is 1.0
// don't allow horizontal scrolling
if scrollView.zoomScale == 1.0 && !scrollView.isZooming {
scrollView.contentOffset.x = lastOffsetX
return
}
// zoom scale is less than 1.0, so
// allow the scroll and update lastX
lastOffsetX = scrollView.contentOffset.x
}
func scrollViewDidZoom(_ scrollView: UIScrollView) {
updateInfo()
}
func updateInfo() {
let s = String(format: "%0.4f", scrollView.zoomScale)
infoLabel.text = "Zoom Scale: \(s)"
}
}
