I have a video with people walking around different homes. I created a fixed bounding box around the different homes and implemented a tracker to track the movements of the people. I now want to check if the bounding box of any of the people are inside the bounding boxes of any of the homes.

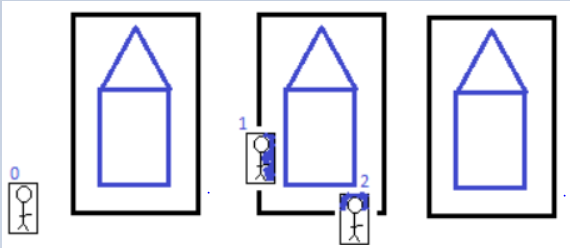

Since this is a video, the check of True or False - i.e. whether a person inside a bounding box or not would constantly change as the people walk around. As an example, I have included a picture of the starting frame of the video. As you can see, Person 0 is not inside the bounding box of any of the houses at all. However, it prints True anyway. Also, I'd also just like to say that I checked multiple other sources and posts on this platform to seek some guidance but I couldn't find anything that could assist me with my problem.
Output that I'm getting:
Person 0 : True
Person 1 : True
Person 2 : True
Person 0 : True
Person 1 : True
...
Expected output would be something as follows (first 3 lines of the expected output correspond with the image below):
Person 0: False
Person 1: True
Person 2: True
Person 0: False
Person 1: True
...
This is what I have done so far:
# boxes_houses = [(#, #, #, #), (#, #, #, #), ...]
while cap.isOpened():
success, frame = cap.read()
if not success:
break
# get updated location of objects in subsequent frames
success, boxes_person = multiTracker.update(frame)
# boxes_persons = [(#, #, #, #), (#, #, #, #), ...]
cnt_person = 0
cnt_house = 0
for box_person, box_house in zip(boxes_persons, boxes_houses):
x_p1 = int(box_person[0])
y_p1 = int(box_person[1])
x_p2 = int(box_person[2])
y_p2 = int(box_person[3])
person_coords = {'x1': x_p1, 'y1': y_p1, 'x2': x_p2, 'y2': y_p2}
cv2.rectangle(frame, (x_p1, y_p1), (x_p1 x_p2, y_p1 y_p2), (0, 0, 0), 2, 1)
cv2.putText(frame, "House: {}".format(cnt_house), (x1, y1 - 10), cv2.FONT_HERSHEY_COMPLEX_SMALL, 1, (0, 0, 0), 1)
x_h1 = int(box_house[0])
y_h1 = int(box_house[1])
x_h2 = int(box_house[2])
y_h2 = int(box_house[3])
cv2.rectangle(frame, (x_h1 , y_h1), (x_h1 x_h2, y_h1 y_h2), (0, 0, 255), 2, 1)
cv2.putText(frame, "Person: {}".format(cnt_person ), (int(box_house[0]), int(box_house[1] - 5)), cv2.FONT_HERSHEY_COMPLEX_SMALL, 1, (0, 0, 255), 1)
## CHECK TO SEE IF BBOX OF PERSONS ARE INSIDE BBOX OF HOMES ##
house1 = {'x1': #, 'y1': #, 'x2': #, 'y2': #}
house2 = {'x1': #, 'y1': #, 'x2': #, 'y2': #}
house3 = {'x1': #, 'y1': #, 'x2': #, 'y2': #}
if (person_coords['x1'] < house1['x1'] and person_coords['y1'] < house1['y1'] or person_coords['x2'] < house1['x2'] and person_coords['y2'] < house1['y2']) or (person_coords['x1'] < house2['x1'] and person_coords['y1'] < house2['y1'] or person_coords['x2'] < house2['x2'] and person_coords['y2'] < house2['y2']) or (person_coords['x1'] < house3['x1'] and person_coords['y1'] < house3['y1'] or person_coords['x2'] < house3['x2'] and person_coords['y2'] < house3['y2']):
print ("Person", num_person, ": True\n")
else:
print ("Person", num_person, ": False\n")
cnt_house = 1
cnt_person = 1
# show frame
cv2.imshow('MultiTracker', frame)
# quit on ESC button
if cv2.waitKey(1) & 0xFF == 27: # Esc pressed
break
Any help on this would be much appreciated!
CodePudding user response：
I think the issue comes from the position check (which is very hard to read since it's all on one line in an if statement).
Let's first define a function to check whether a person is in a given house:
def isInside(person, house):
"""
person is the dict with x1, y1, x2 and y2 for that person
house is the dict with x1, y1, x2 and y2 for that person
"""
# First we make sure we compare things in the right order
# You can skip that part if you are sure that in all cases x1 < x2 and y1 < y2
p_xmin = min(person["x1"], person["x2"])
p_xmax = max(person["x1"], person["x2"])
p_ymin = min(person["y1"], person["y2"])
p_ymax = max(person["y1"], person["y2"])
h_xmin = min(house["x1"], house["x2"])
h_xmax = max(house["x1"], house["x2"])
h_ymin = min(house["y1"], house["y2"])
h_ymax = max(house["y1"], house["y2"])
# Then you perform your checks. From what I understood,
# you want the result to be true if any corner of the person
# is inside the house's bounding box.
p_corners = [
(p_xmin, p_ymin),
(p_xmin, p_ymax),
(p_xmax, p_ymin),
(p_xmax, p_ymax)]
for corner in p_corners:
in_range_along_x = corner[0] < h_xmax and corner[0] > h_xmin
in_range_alond_y = corner[1] < h_ymax and corner[1] > h_ymin
if in_range_along_x and in_range_along_y:
return True
# If we get there, then the person is not inside that house
return False
You can also modify the function above to use the center of the person's bounding box instead of its corners, or to check that all corners are inside. Here is the center version as a bonus:
def centerIsInside(person, house):
"""
person is the dict with x1, y1, x2 and y2 for that person
house is the dict with x1, y1, x2 and y2 for that person
"""
# First we make sure we compare things in the right order
# You can skip that part if you are sure that in all cases x1 < x2 and y1 < y2
h_xmin = min(house["x1"], house["x2"])
h_xmax = max(house["x1"], house["x2"])
h_ymin = min(house["y1"], house["y2"])
h_ymax = max(house["y1"], house["y2"])
# We compute the center of the person:
p_xcenter = (person["x1"] person["x2"])/2
p_ycenter = (person["y1"] person["y2"])/2
# Then you perform your checks.
in_range_along_x = p_xcenter < h_xmax and corner[0] > p_xcenter
in_range_alond_y = p_ycenter < h_ymax and corner[1] > p_ycenter
if in_range_along_x and in_range_along_y:
return True
else:
return False
You can then use that function to perform the checks instead of that long if statement:
# [...]
houses = [house1, house2, house3]
isinside_checks = []
for house in houses:
isinside_checks.append(isInside(person_coords, house))
if any(inside_checks):
print ("Person", num_person, ": True\n")
else:
print ("Person", num_person, ": False\n")
# [...]
You can also modify the isInside function to make it perform different types of checks depending on an argument (any corner, center, all corners...)
