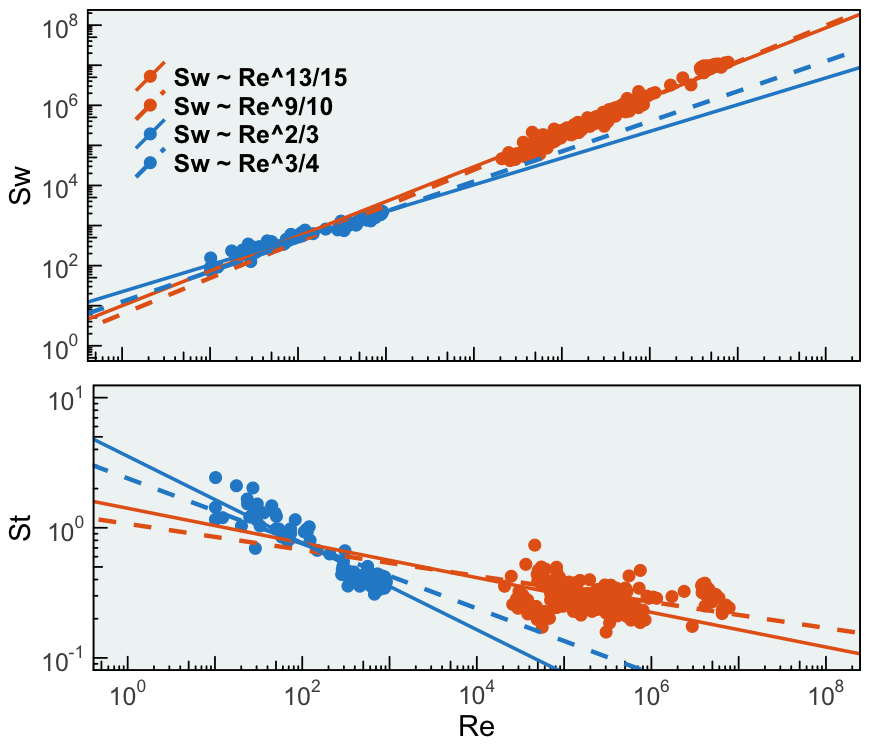

I have two plots named fig and fig2. Each plot contains 4 geom_ablines and one plot contains legend as well.
I want to plot them in one window vertically aligned. I am using ggarrange function in R but when it plots them, it does not show the geom_ablines and also messes the legend.
However, if I plot them individually, they are fine. The code I am using is:
# First Plot
fig <- ggplot(scalingdata, aes(x=Re, y=Sw, color=Size))
geom_point(size=3)
theme_minimal()
theme(panel.background = element_rect(fill = "#f0f4f5",
size = 0.5, linetype = "solid"),
panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
panel.border = element_rect(color = "black",fill = NA,size = 1),
plot.title = element_text(size = 25, face = "italic"),
axis.title.y = element_text(size=17.5),
axis.text.y = element_text(size=15, face="bold"),
axis.title.x = element_blank(),
axis.text.x = element_blank(),
legend.title =element_blank(),
legend.text = element_text(size=15, face="bold"),
legend.position = c(0.2, 0.7))
scale_x_log10(limits = c(1,10^8), breaks = trans_breaks("log10", function(x) 10^x),
labels = trans_format("log10", math_format(10^.x)))
scale_y_log10(limits = c(1,10^8), breaks = trans_breaks("log10", function(x) 10^x),
labels = trans_format("log10", math_format(10^.x))) annotation_logticks()
lines <- data.frame(name = c("Sw ~ Re^13/15", "Sw ~ Re^9/10", "Sw ~ Re^2/3", "Sw ~ Re^3/4"),
intercept = c(1, 0.79, 1.35, 1.1),
slope = c(13/15, 9/10, 2/3, 3/4))
fig geom_abline(data = lines, aes(intercept=intercept, slope=slope, color=name, size=name, linetype=name))
scale_color_manual(name='Size',
values=c("Sw ~ Re^13/15" ='#e66419', "Sw ~ Re^9/10" ='#e66419',
"Sw ~ Re^2/3" ='#278ccf', "Sw ~ Re^3/4" ='#278ccf',
'Fish' = '#e66419', 'Larvae' = '#278ccf'),
breaks=lines$name)
scale_size_manual(name='Size',
values=c("Sw ~ Re^13/15" =1, "Sw ~ Re^9/10" =1.25, "Sw ~ Re^2/3" =1, "Sw ~ Re^3/4" = 1.25))
scale_linetype_manual(name='Size',
values=c("Sw ~ Re^13/15" ='solid', "Sw ~ Re^9/10" ='dashed',
"Sw ~ Re^2/3" ='solid', "Sw ~ Re^3/4" ='dashed'))
# Second Plot
fig2 <- ggplot(scalingdata, aes(x=Re, y=St, color=Size))
geom_point(size=3)
theme_minimal()
theme(panel.background = element_rect(fill = "#f0f4f5",
size = 0.5, linetype = "solid"),
panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
panel.border = element_rect(color = "black",fill = NA,size = 1),
plot.title = element_text(size = 25, face = "italic"),
axis.title=element_text(size=17.5),
axis.text = element_text(size=15, face="bold"),
legend.position ="none") # If no legend to be shown
scale_x_log10(limits = c(1,10^8), breaks = trans_breaks("log10", function(x) 10^x),
labels = trans_format("log10", math_format(10^.x)))
scale_y_log10(limits = c(10^-1,10^1), #breaks = trans_breaks("log10", function(x) 10^x),
labels = trans_format("log10", math_format(10^.x))) annotation_logticks()
lines1 <- data.frame(name = c("St ~ Re^-2/15", "St ~ Re^-1/10", "St ~ Re^-1/3", "St ~ Re^-1/4"),
intercept = c(0.15, 0.03, 0.55, 0.38),
slope = c(-2/15, -1/10, -1/3, -1/4))
fig2 geom_abline(data = lines1, aes(intercept=intercept, slope=slope, color=name, size=name, linetype=name))
scale_color_manual(name='Size',
values=c("St ~ Re^-2/15" ='#e66419', "St ~ Re^-1/10" ='#e66419',
"St ~ Re^-1/3" ='#278ccf', "St ~ Re^-1/4" ='#278ccf',
'Fish' = '#e66419', 'Larvae' = '#278ccf'),
breaks=lines$name)
scale_size_manual(name='Size',
values=c("St ~ Re^-2/15" =1, "St ~ Re^-1/10" =1.25, "St ~ Re^-1/3" =1, "St ~ Re^-1/4" = 1.25))
scale_linetype_manual(name='Size',
values=c("St ~ Re^-2/15" ='solid', "St ~ Re^-1/10" ='dashed',
"St ~ Re^-1/3" ='solid', "St ~ Re^-1/4" ='dashed'))
library(ggpubr)
ggarrange(fig, fig2, widths=c(1.8,1.8),heights=c(1.8,1.5),ncol=1,nrow=2, align='v')
Any idea how to fix this issue?
The MRE is:
