Fit theoretical dartboard in image containing dartboard-CodePudding

The

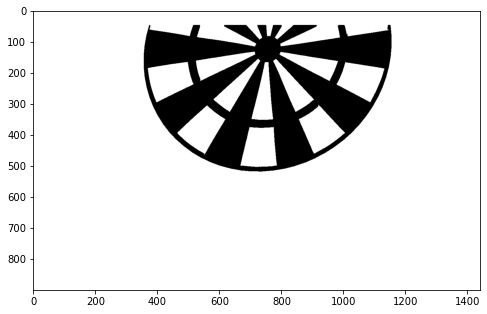

After processing the image looks as follows:

In addition, I have a function that creates a theoretical dartboard:

import cv2 import numpy as np def draw_dartboard(): IMG = np.ones((400, 400), 'uint8') * 255 center = (int(IMG.shape[0] // 2), int(IMG.shape[1] // 2)) size_dartboard = int(340) r_board = int(170) r_db = int(6.35) r_sb = int(15.9) r_doubles = int(162) r_triples = int(99) width_rings = int(8) cv2.circle(IMG, center, r_doubles width_rings, (0,0,0), -1) cv2.circle(IMG, center, r_doubles, (255,255,255), -1) cv2.circle(IMG, center, r_triples width_rings, (0,0,0), -1) cv2.circle(IMG, center, r_triples, (255,255,255), -1) thetas_min = np.radians([(18 * t - 9) for t in range(20)]) thetas_max = np.radians([(18 * t 9) for t in range(20)]) for idx, (theta_min, theta_max) in enumerate(zip(thetas_min, thetas_max)): if (idx % 2) == 0: x_min = int(center[0] r_board * np.cos(theta_min)) y_min = int(center[1] r_board * np.sin(theta_min)) x_max = int(center[0] r_board * np.cos(theta_max)) y_max = int(center[1] r_board * np.sin(theta_max)) cv2.fillPoly(IMG, np.array([(center, (x_min,y_min), (x_max,y_max))]), (0,0,0)) cv2.circle(IMG, center, r_sb, (0,0,0), -1) return IMG

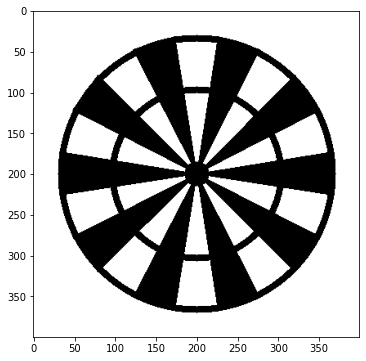

The output of this image looks as follows:

How can I “fit” the theoretical dartboard in the real image? Clearly, there is a mismatch in orientation and scale. What's the best way to do this?

CodePudding user response：

You can register your dartboard image (i.e. source image) to the one you processed (i.e. destination image) by using

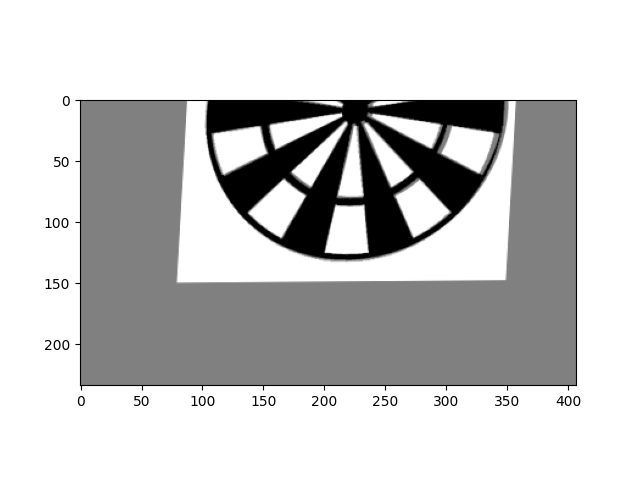

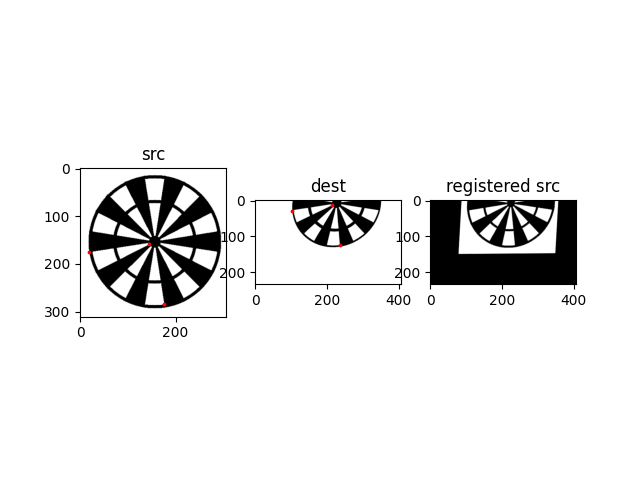

In order to calculate affine transformation matrix, you will need 3 matching points on both images. I highlighted the points I chose on both images. FYI, you can develop a way to automate finding matching points, let us know in your question if you need that.

CodePudding user response：

As you have already done the image processing, I will take it from there. So just to be clear, this is the image I will be working with (I cropped out the matplotlib axises, as I'm sure they aren't present in your actual image):

The concept is really simple:

Find the bounding box of the contour of the target.

With the bounding box, we can find the radius of the target by selecting the greatest among the dimensions (width and height) of the bounding box, and dividing it by 2.

With the radius of the target and the top-left corner coordinates of the target (returned when finding the bounding box of the target), we can find the center of the target with the expressions x r and y h - r.

With the radius of the target, you can scale your theoretical target accordingly, and with the center of the target, you can draw your theoretical target at the right coordinates.

Here is how the code goes, where Image.png is the above image. Note that I only draw one circle onto the image; the rest of them can be drawn on using the same way, with just some added scaling:

import cv2 import numpy as np img = cv2.imread("Image.png") img_processed = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) contours, _ = cv2.findContours(img_processed, cv2.RETR_LIST, cv2.CHAIN_APPROX_NONE) cnt = sorted(contours, key=cv2.contourArea)[-2] x, y, w, h = cv2.boundingRect(cnt) r = max(w, h) // 2 center_x = x r center_y = y h - r cv2.circle(img, (center_x, center_y), r, (0, 255, 0), 5) cv2.imshow("Image", img) cv2.waitKey(0) cv2.destroyAllWindows()

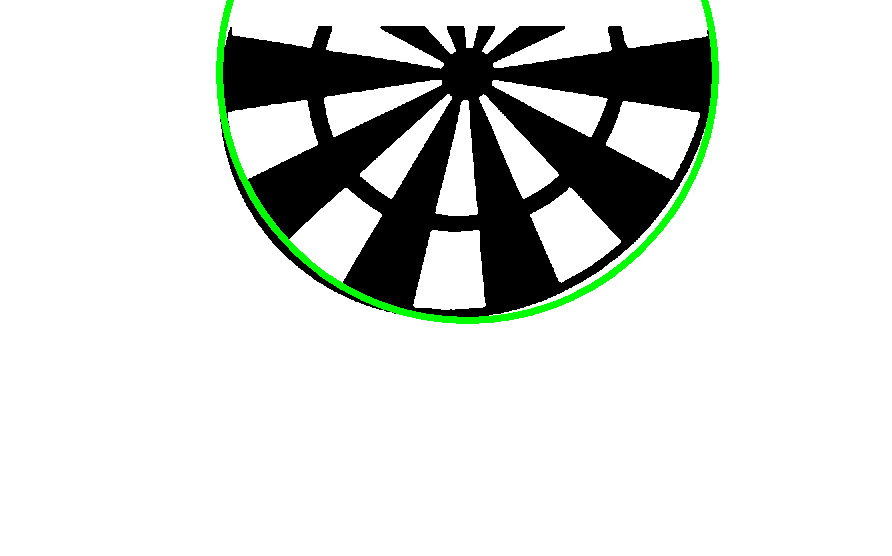

Output:

Note that at this line:

cnt = sorted(contours, key=cv2.contourArea)[-2]

I am getting the contour with the second-greatest area, as the one with the greatest area would be the border of the image.
