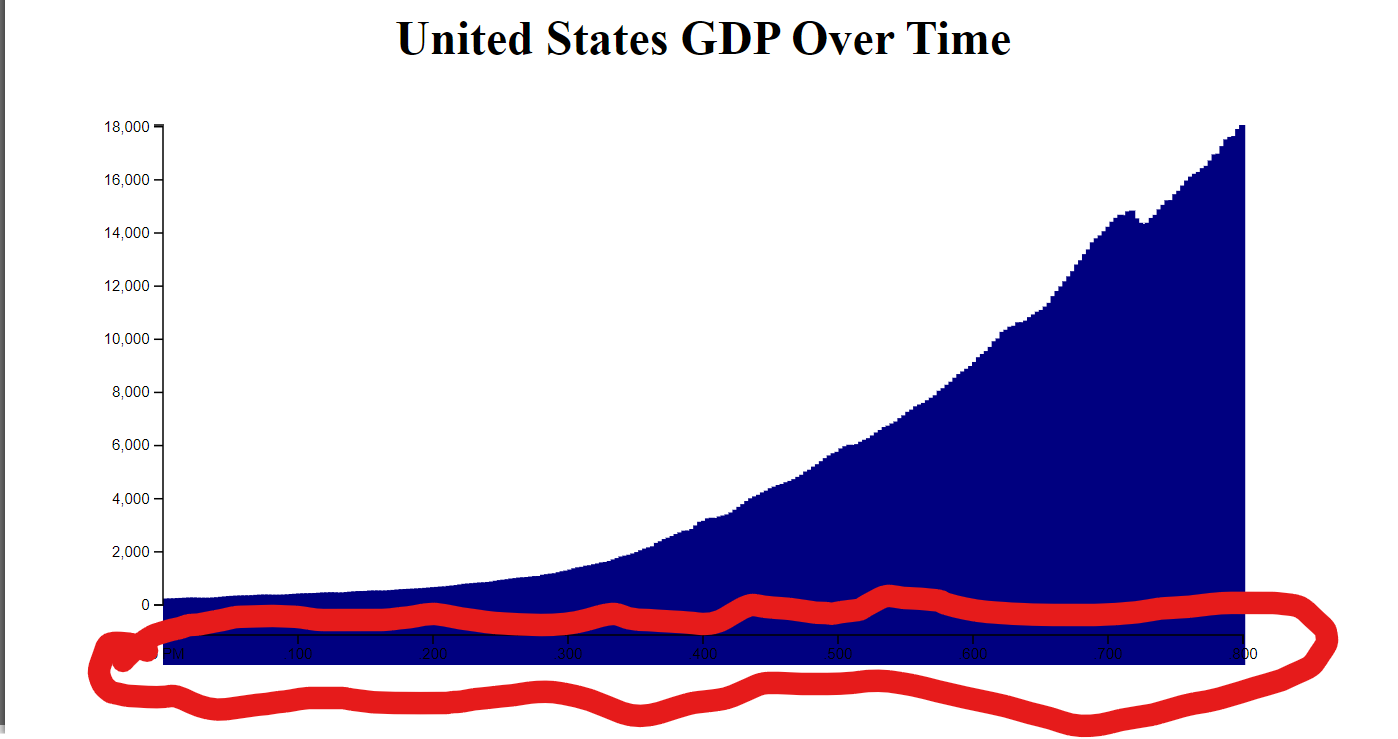

I can't figure out why my elements are bleeding into the bottom padding. It is preventing me from having a elements. I am sure it is something simple, it always is. I just can't figure out what's wrong. I have tried changing the height and the scales, but it just changes things I don't want changed. I keep looking at tutorials on scales and I haven't found anything that seems off. If I get I have the project on codepen, here is the link:

Here is the javascript:

  //Mapping dataset to its x and y axes
  const xData = dataset.map(d => {
    let date = new Date(d[0]);
    return date;
  });

  const xDates = xData.map(d => {
    let dateFormatted = d.toLocaleString("default", {month: "short"})   ' '   d.getDate()   ', '   d.getFullYear()
    return dateFormatted;
  });

  const yData = dataset.map(d => d[1]);
  //Variable for use inside D3
  const h = 400;
  const w = 800;
  const pad = 40;

  //Scales for the SVG element
  const xDateScale = d3.scaleTime()
                .domain([0, w])
                .range([pad, w - pad]);
  const xScale = d3.scaleLinear()
                .domain([0, yData.length])
                .range([pad, w - pad]);
  const yScale = d3.scaleLinear()
                .domain([0, d3.max(yData, (d) => d)])
                .range([h - pad, pad]);

  //Declaring the SVG element
  const svg = d3.select('#svg-container')
                .append('svg')
                .attr('width', w)
                .attr('height', h)

  //Declaring each bar
  svg.selectAll('rect')
      .data(yData)
      .enter()
      .append('rect')
      .attr('x', (d, i) => xScale(i))
      .attr('y', (d, i) => yScale(d))
      .attr("width", w / (yData.length - pad * 2))
      .attr("height", (d, i) => d)
      .attr("class", "bar")
      .append('title')
      .text((d, i) => 'GDP: '   d   ' | Date: '   xDates[i])

  //Axes Declarations
  const xAxis = d3.axisBottom(xDateScale);
  const yAxis = d3.axisLeft(yScale);

  svg.append("g")
      .attr("transform", "translate(0,"   (h - pad / 2)   ")")
      .call(xAxis);
  svg.append("g")
      .attr("transform", "translate("   pad   ",0)")
      .call(yAxis)

CodePudding user response：

The problem is that you're not using the correct value with the height attribute for your rects

Just make the following change and it should work:

.attr("height", (d, i) => yScale(0) - yScale(d))
