I am attempting to implement a PageTabViewStyle inside a NavigationView so that I can swipe between two different lists but the TabView does not ignore the safe area despite having .ignoresSafeArea().

Code

struct TestView: View {
    @State private var selectedPage = 0
    private var pages = [0, 1]

    var body: some View {
        NavigationView {
            TabView(selection: $selectedPage) {
                FirstList()
                    .ignoresSafeArea()
                    .tag(0)

                SecondList()
                    .tag(1)
            }
            .ignoresSafeArea()
            .tabViewStyle(PageTabViewStyle(indexDisplayMode: .never))
            .navigationBarTitleDisplayMode(.inline)
            .toolbar {
                ToolbarItem(placement: .principal) {
                    Picker("", selection: $selectedPage) {
                        ForEach(pages, id: \.self) {
                            Text(String($0))
                        }
                    }
                    .scaledToFit()
                    .pickerStyle(.segmented)
                }
            }
        }
    }
}

struct FirstList: View {
    var body: some View {
        List {
            Text("0")
        }
    }
}

struct SecondList: View {
    var body: some View {
        List {
            Text("1")
        }
    }
}

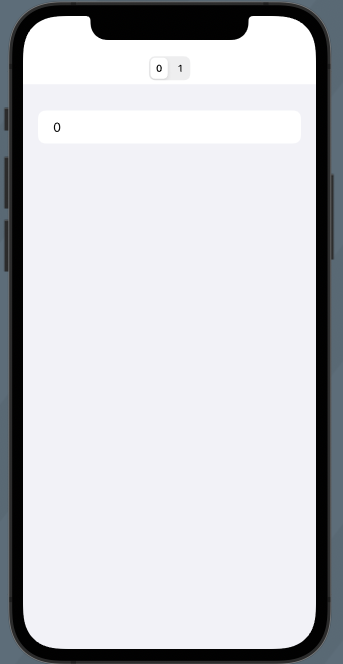

Results:

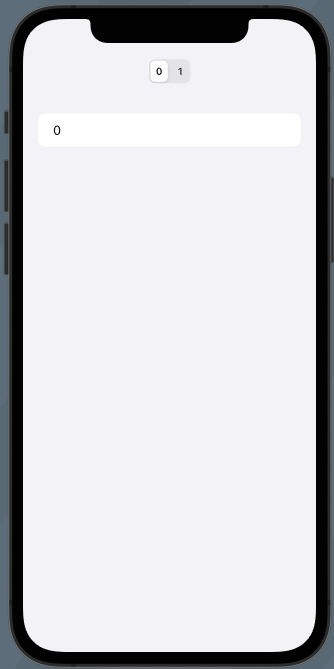

How do I set it such that the list view would fill the navigationBar like the image below:

Note that adding a background color is not preferred as I would like to maintain the navigationBar tint effect when the list view is scrolled.

CodePudding user response：

It is inside NavigationView, so it should be also expanded, so child would have possibility to go outside safe area.

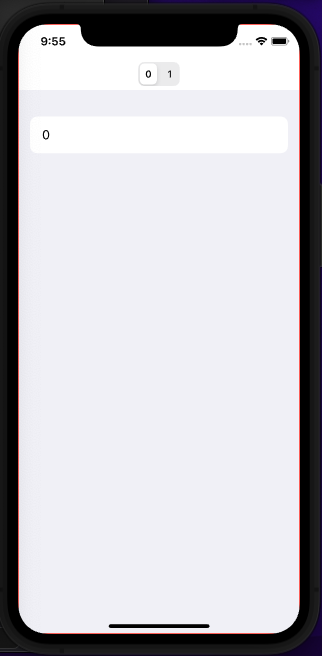

Here is fixed code (tested with Xcode 13.2 / iOS 15.2)

var body: some View {
    NavigationView {
        TabView(selection: $selectedPage) {
            FirstList()
                .ignoresSafeArea()
                .tag(0)

            SecondList()
                .tag(1)
        }
        .tabViewStyle(PageTabViewStyle(indexDisplayMode: .never))
        //.border(Color.red)    // for testing
        .ignoresSafeArea()                        // << here !!
        .navigationBarTitleDisplayMode(.inline)
        .toolbar {
            ToolbarItem(placement: .principal) {
                Picker("", selection: $selectedPage) {
                    ForEach(pages, id: \.self) {
                        Text(String($0))
                    }
                }
                .scaledToFit()
                .pickerStyle(.segmented)
            }
        }
    }
    .ignoresSafeArea()         // << and here !!
}

CodePudding user response：

It is because List has its own background. You can either set listStyle to .plain or manually set the color of List background e.g. onAppear.

struct ContentView: View {
    @State private var selectedPage = 0
    private var pages = [0, 1]

    var body: some View {
        NavigationView {
            TabView(selection: $selectedPage) {
                FirstList()
                    .ignoresSafeArea()
                    .tag(0)

                SecondList()
                    .tag(1)
            }
            .ignoresSafeArea()
            .tabViewStyle(PageTabViewStyle(indexDisplayMode: .never))
            .navigationBarTitleDisplayMode(.inline)
            .onAppear {
                // UITableView.appearance().backgroundColor = UIColor(Color.clear) // solution2

            }
            .toolbar {
                ToolbarItem(placement: .principal) {
                    Picker("", selection: $selectedPage) {
                        ForEach(pages, id: \.self) {
                            Text(String($0))
                        }
                    }
                    .scaledToFit()
                    .pickerStyle(.segmented)
                }
            }
        }
    }
}

struct FirstList: View {
    var body: some View {
        List {
            Text("0")
        }
        .listStyle(.plain) //solution1
    }
}

struct SecondList: View {
    var body: some View {
        List {
            Text("1")
        }
        .listStyle(.plain) //solution1
    }
}
