checkboxinput server issues in R-CodePudding

I want to have a checkbox in my UI that will act as an if statement in my server but I'm not sure how to properly code the part in the server. In this example, I would like the graph to output when the box is checked.

Here is my code

ui <- fluidPage(

    titlePanel("title"),

    sidebarLayout(
        sidebarPanel(
            checkboxInput("EF", "Efficient Frontier")
        ),

        mainPanel(
            fluidRow(
                align = "center",
                plotOutput("Graphw")
            )
        )
    )
)

server <- function(input, output) {

                if(input$EF){
                    X <- function(a,b,c){
                        plot(c(a,b),c(b,c))
                         }
                }

                OPw <- reactiveValues()
                OPw$PC <- X(5,10,15)

                output$Graphw <- renderPlot({
                    OPw$PC
                })
}

shinyApp(ui = ui, server = server)

I need to add some kind of reactive values but Im not sure where. Any help would be appreciated

CodePudding user response：

I think you can do this without using reactiveValues. Make the function X as independent function which can be called under renderPlot.

library(shiny)

X <- function(a,b,c){
  plot(c(a,b),c(b,c))
}

ui <- fluidPage(

  titlePanel("title"),

  sidebarLayout(
    sidebarPanel(
      checkboxInput("EF", "Efficient Frontier")
    ),

    mainPanel(
      fluidRow(
        align = "center",
        plotOutput("Graphw")
      )
    )
  )
)

server <- function(input, output) {

  output$Graphw <- renderPlot({
    if(input$EF){
      X(5,10,15)
    }
  })
}

shinyApp(ui = ui, server = server)

CodePudding user response：

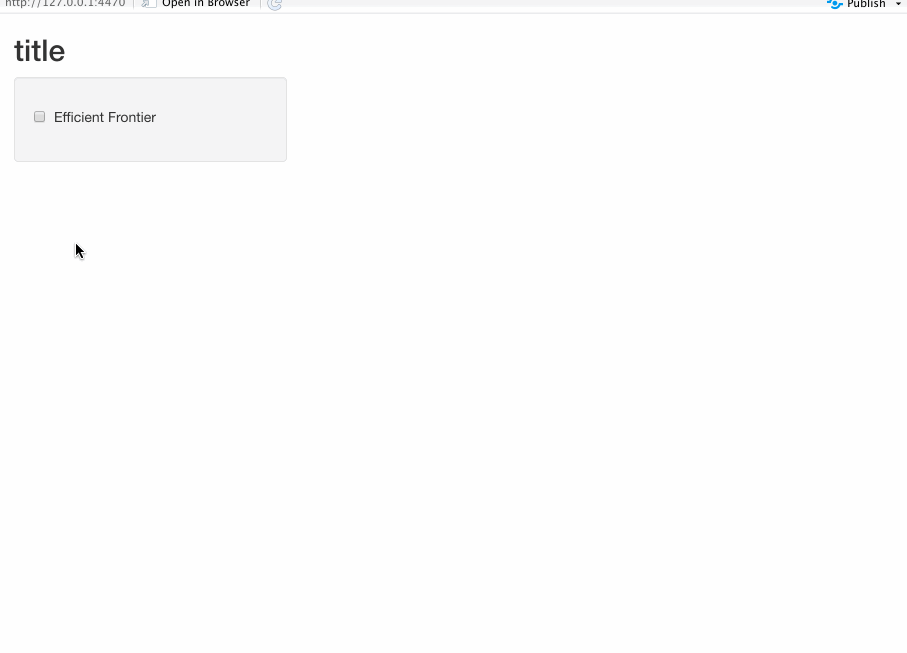

If the efficient frontier takes some time to plot, we can use conditionalPanel to show or hide the plotOutput instead of re-rendering each time the checkboxInput is pressed.

library(shiny)

X <- function(a, b, c) {
  plot(c(a, b), c(b, c))
}

library(shiny)

ui <- fluidPage(
  titlePanel("title"),
  sidebarLayout(
    sidebarPanel(
      checkboxInput("EF", "Efficient Frontier")
    ),
    mainPanel(
      fluidRow(
        align = "center",
        conditionalPanel(
          condition = "input.EF == true",
          plotOutput("Graphw")
        )
      )
    )
  )
)

server <- function(input, output) {
  output$Graphw <- renderPlot({
    X(5, 10, 5)
  })
}

shinyApp(ui = ui, server = server)

Another version that uses reactiveValues with ggplot

library(shiny)

ui <- fluidPage(
  titlePanel("title"),
  sidebarLayout(
    sidebarPanel(
      checkboxInput("EF", "Efficient Frontier")
    ),
    mainPanel(
      fluidRow(
        align = "center",
        conditionalPanel(
          condition = "input.EF == true",
          plotOutput("Graphw")
        )
      )
    )
  )
)

server <- function(input, output) {
  X <- function(a, b, c) {
    ggplot(mapping = aes(x = c(a, b), y = c(b, c)))
      geom_point()
  }

  OPw <- reactiveValues(PC = NULL)

  observe({
    OPw$PC <- X(5, 10, 5)
  })



  output$Graphw <- renderPlot({
    OPw$PC
  })
}

shinyApp(ui = ui, server = server)
