How do I remove legend/grid without using theme

Here I have theme_light() but in the plot I still have the x/y axis & legend grid. I want to remove those and only have my light background plot 'pic'. When I use theme_void -> it removes the legend but then the background is void. Any idea how to solve this so I only have a white background and my plot?

pic <- ggplot(data = art_dat, mapping = aes(x = x, y = y, group = path_id,
                                                color = step_id)
              )
  geom_path(
            size = .9,
            alpha = 1000, #transparency of the lines
            show.legend = FALSE

            )
            coord_equal()
            theme_light()
            scale_color_scico(palette = "berlin")

CodePudding user response：

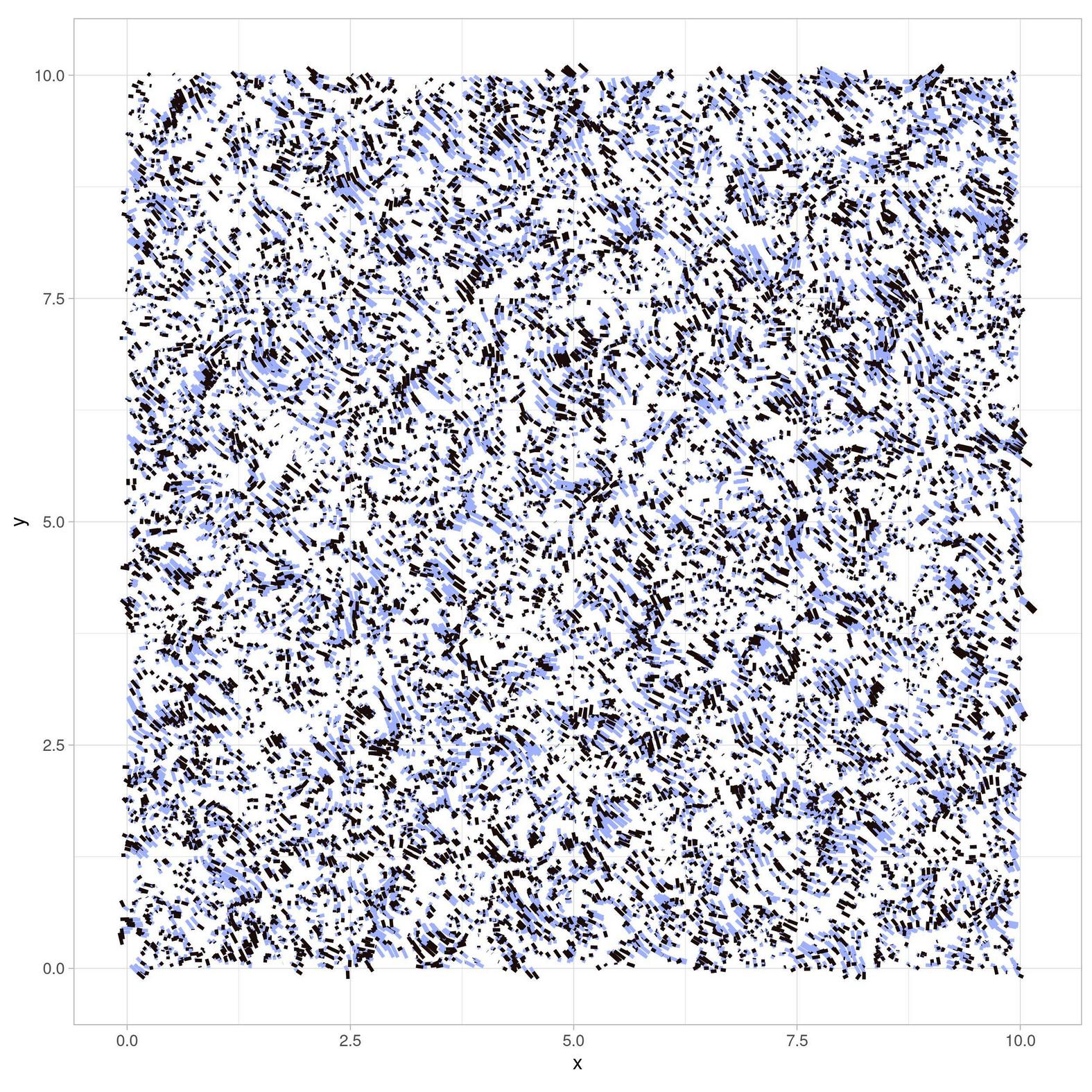

EDIT: Updated as you have posted an image. You do not have a legend, so you do not need to remove it. You want to remove the axis lines, ticks, text, title and maybe(?) the panel grid lines:

pic <- ggplot(data = art_dat, mapping = aes(x = x, y = y, group = path_id,
                                                color = step_id)
              )
  geom_path(
            size = .9,
            alpha = 1000, #transparency of the lines
            show.legend = FALSE

            )
            coord_equal()
            theme_light()
            scale_color_scico(palette = "berlin")
                theme(
        axis.line = element_blank(),
        axis.text = element_blank(),
        axis.ticks = element_blank(),
        axis.title = element_blank(),
        panel.grid.major = element_blank(), # optional - remove gridlines
        panel.grid.minor = element_blank() # optional - remove gridlines
    )

CodePudding user response：

If you add some adjustments to theme void, you can get rid of the legend. In addition, you can make the legend white with the plot.background argument. In the example below I made it red to show that there are no margins left and such. There is a row of white pixels, but I don't know what to do against that.

library(ggplot2)

p <- ggplot(mpg, aes(displ, hwy, colour = cyl))
  geom_point()

p   theme_void()
  theme(
    legend.position = "none",
    plot.background = element_rect(fill = "red", colour = NA)
  )

^{Created on 2022-01-18 by the reprex package (v2.0.1)}
