Convert GPS Coordinates to Match Custom 2d outdoor layout Image-CodePudding

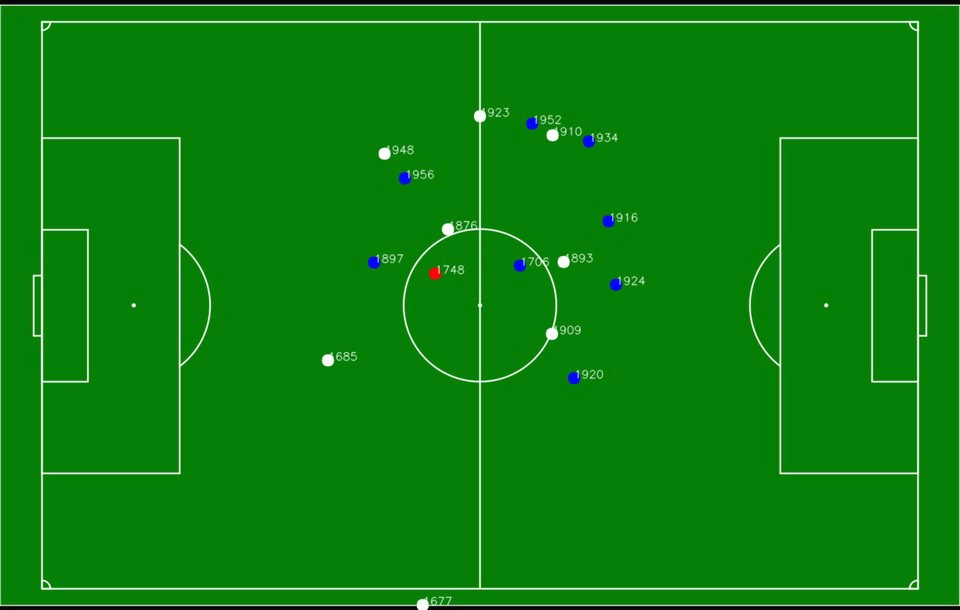

The

Any help on this matter would be appreciated highly, and thanks in advance for all the help.

Edit:

After looking more at the matter I tried the answer of this post

Here is how to rotate x,y knowing the angel:

double x,y; double newX,newY; double angle; //Test values: x=1; y=1; angle = 45; double rad = angle*M_PI/180; newX = x * cos(rad) - y * sin(rad); newY = y * cos(rad) x * sin(rad);

CodePudding user response：

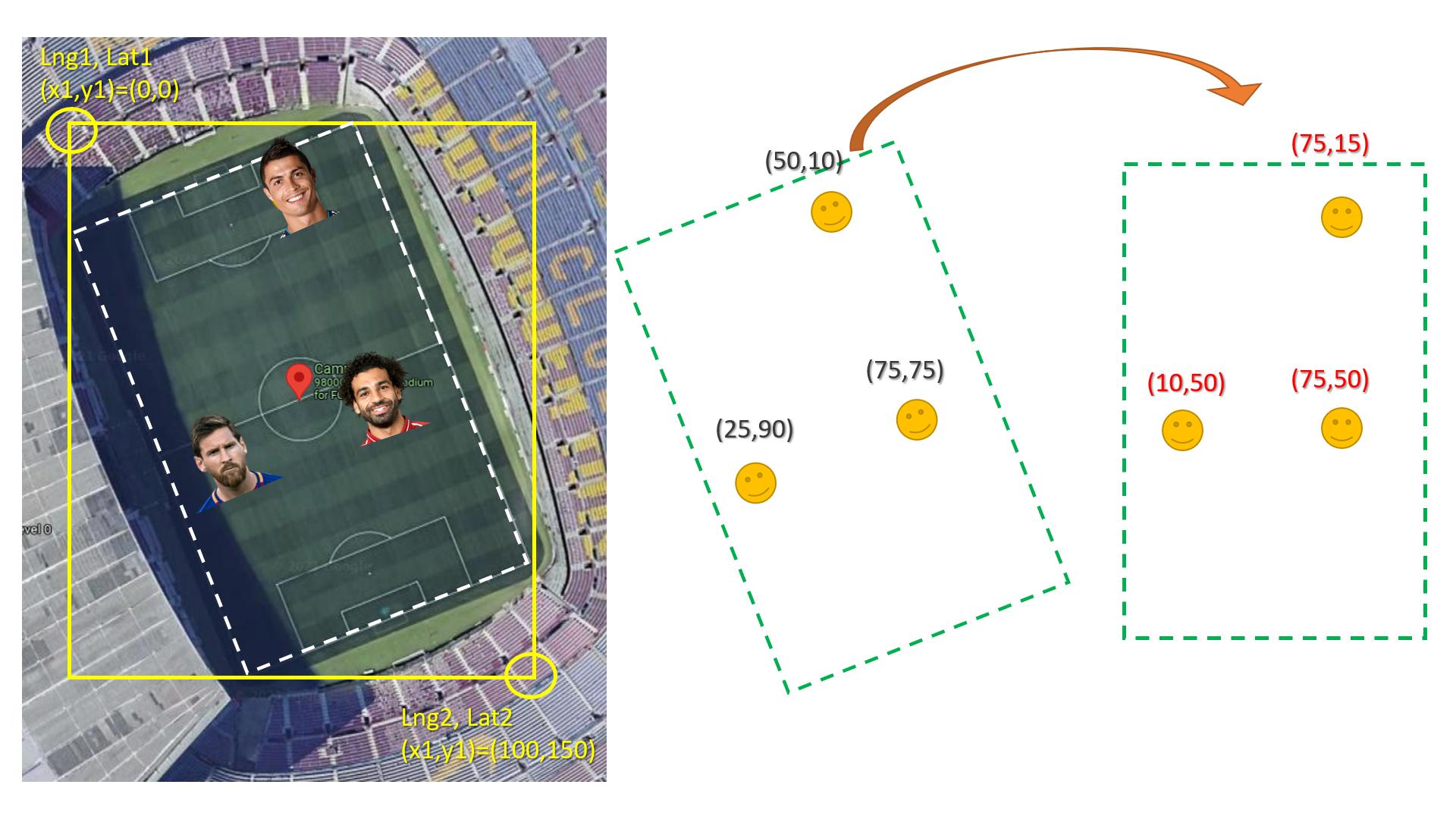

Yes, the answer in the link will work but under the condition that the goalposts in the field are pointing in exactly North and south directions. What they have basically done in the two links is downscaling the GPS coordinates to fit into your screen, so while down scaling only if the goalposts are pointing in east and west direction like the image you attached the scaling will work.

But in real data, the field can be located at any angle, maybe one goal post is NE and the other is SW. So in order to solve that problem also use @Jabbar's answer.
