Set tick distance between numeric values and the beginning tick value of axes in plotly-CodePudding

I have the dataframe below and I try to format the tick between numeric values in x and y axes but I cant set it to 5. Also I cannot set the initial tick to 0.

sumscope2<-structure(list(Year = c(1962, 1976, 1988, 1989, 1991, 1997, 2002,
2008), Country = c("Algeria", "Algeria", "Algeria", "Algeria",
"Algeria", "Algeria", "Algeria", "Algeria"), Scope = c(2, 9,
3, 2, 15, 3, 23, 4)), class = c("grouped_df", "tbl_df", "tbl",
"data.frame"), row.names = c(NA, -8L), groups = structure(list(
    Year = c(1962, 1976, 1988, 1989, 1991, 1997, 2002, 2008),
    .rows = structure(list(1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L), ptype = integer(0), class = c("vctrs_list_of",
    "vctrs_vctr", "list"))), class = c("tbl_df", "tbl", "data.frame"
), row.names = c(NA, -8L), .drop = TRUE))

library(plotly)
fig <- plot_ly(data = sumscope2, x = ~Year, y = ~Scope,mode = 'lines markers',
               marker = list(size = 10,
                             color = 'rgba(255, 182, 193, .9)',
                             line = list(color = 'rgba(152, 0, 0, .8)',
                                         width = 2)),
               text=paste("Year :", sumscope2$Year,
                          "<br> Count of Scopes :", sumscope2$Scope),
               hoverinfo="text"
)%>%
  layout(title="Count of Scope per country and year",
         xaxis=list(tickvals=~Year,ticktext=~Year,dtick = 5),
         yaxis=list(tickvals=~Scope,ticktext=~Scope,dtick = 5,tick0 = 0)
  )
fig

CodePudding user response：

You can't combine tickvals and dtick.

tickvals is the way to "manually" place the ticks and dtick provides the steps in-between ticks on the axis (which might not correspond with irregular tickvals).

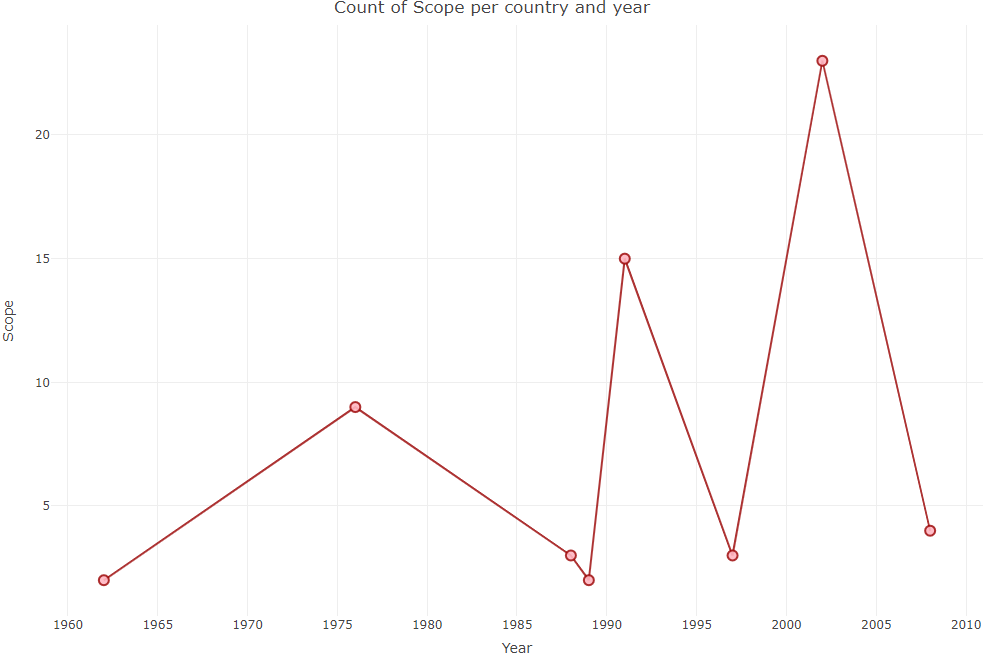

Please check the following:

sumscope2 <- structure(list(Year = c(1962, 1976, 1988, 1989, 1991, 1997, 2002,
2008), Country = c("Algeria", "Algeria", "Algeria", "Algeria",
"Algeria", "Algeria", "Algeria", "Algeria"), Scope = c(2, 9,
3, 2, 15, 3, 23, 4)), class = c("grouped_df", "tbl_df", "tbl",
"data.frame"), row.names = c(NA, -8L), groups = structure(list(
    Year = c(1962, 1976, 1988, 1989, 1991, 1997, 2002, 2008),
    .rows = structure(list(1L, 2L, 3L, 4L, 5L, 6L, 7L, 8L), ptype = integer(0), class = c("vctrs_list_of",
    "vctrs_vctr", "list"))), class = c("tbl_df", "tbl", "data.frame"
), row.names = c(NA, -8L), .drop = TRUE))

library(plotly)

sumscope2DF <- as.data.frame(sumscope2)

fig <- plot_ly(
  data = sumscope2DF,
  x = ~ Year,
  y = ~ Scope,
  type = "scatter",
  mode = "lines markers",
  marker = list(
    size = 10,
    color = 'rgba(255, 182, 193, .9)',
    line = list(color = 'rgba(152, 0, 0, .8)',
                width = 2)
  ),
  line = list(color = 'rgba(152, 0, 0, .8)',
              width = 2),
  text = paste(
    "Year :",
    sumscope2DF$Year,
    "<br> Count of Scopes :",
    sumscope2DF$Scope
  ),
  hoverinfo = "text"
) %>% layout(
  title = "Count of Scope per country and year",
  xaxis = list(
    dtick = 5
  ),
  yaxis = list(
    dtick = 5,
    tick0 = 0
  )
)

fig

PS: Please run schema() and navigate

object ► layout ► layoutAttributes ► xaxis ► dtick

to see the argument description.
