I'm using Windows.Media.OCR engine to scan these two lines

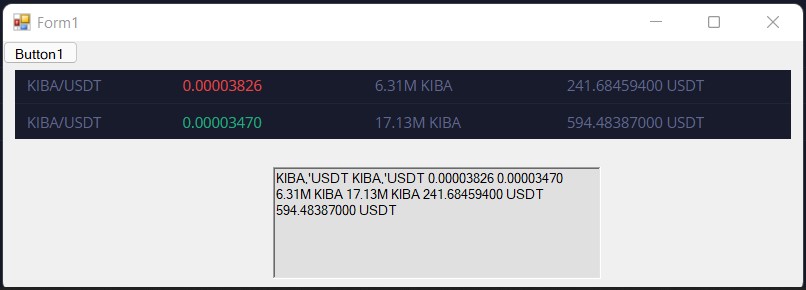

But the software scan them like that:

While I'm expecting it to scan like:

KIBA/USDT 0.00003826 6.31M KIBA 241.68459400 USDT

KIBA/USDT 0.00003470 17.13M KIBA 594.48387000 USDT

The code I'm using is:

'require references: "C:\Program Files (x86)\Windows Kits\10\UnionMetadata\Windows.winmd"
'"C:\ProgramFiles(x86)\ReferenceAssemblies\Microsoft\Framework.NETCore\v4.5\System.Runtime.WindowsRuntime.dll"
' and windows 10 sdk
Imports Windows.Media.Ocr
Imports System.IO
Imports System.Runtime.InteropServices.WindowsRuntime
Public Class Form1
    Private Async Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
        Dim softwareBmp As Windows.Graphics.Imaging.SoftwareBitmap
        Using bmp As Bitmap = New Bitmap(PictureBox1.Width, PictureBox1.Height)
            Using g As Graphics = Graphics.FromImage(bmp)
                Dim pt As Point = Me.PointToScreen(New Point(PictureBox1.Left, PictureBox1.Top))
                g.CopyFromScreen(pt.X, pt.Y, 0, 0, bmp.Size, CopyPixelOperation.SourceCopy)
                Using memStream = New Windows.Storage.Streams.InMemoryRandomAccessStream()
                    bmp.Save(memStream.AsStream(), System.Drawing.Imaging.ImageFormat.Bmp)
                    Dim decoder As Windows.Graphics.Imaging.BitmapDecoder = Await Windows.Graphics.Imaging.BitmapDecoder.CreateAsync(memStream)
                    softwareBmp = Await decoder.GetSoftwareBitmapAsync()
                End Using
            End Using
        End Using

        Dim ocrEng = OcrEngine.TryCreateFromLanguage(New Windows.Globalization.Language("en-US"))

        Dim languages As IReadOnlyList(Of Windows.Globalization.Language) = ocrEng.AvailableRecognizerLanguages
        For Each language In languages
            Console.WriteLine(language.LanguageTag)
        Next
        Dim r = ocrEng.RecognizerLanguage
        Dim n = ocrEng.MaxImageDimension

        Dim ocrResult = Await ocrEng.RecognizeAsync(softwareBmp)
        RichTextBox1.Text = ocrResult.Text

    End Sub
End Class

Which kind of change does this code needs in order to scan by row and not by column?

edit: Binary:

but I didn't post it before cause I anyway I will need to scan only from 0.000038 ecc to 0.0000%

CodePudding user response：

I chose to act on the output string instead of tackling the OCR API. Fixing the issue within the OCR API would probably be a superior solution if possible, but I could not get your code properly referenced in my system.

So you can add this function to transpose the string

Private Function transpose(input As String) As String
    Dim numberOfColumns = 4 ' this must be known and could be a parameter to this function
    Dim fixedInput = input.Replace(" KIBA", "|KIBA").Replace(" USDT", "|USDT")
    Dim splitInput = fixedInput.Split(" "c)
    Dim numberOfWords = splitInput.Count()
    Dim numberOfRows = numberOfWords / numberOfColumns
    Dim words As New List(Of String)()
    For row = 0 To numberOfRows - 1
        For col = 0 To numberOfColumns - 1
            words.Add(splitInput(CInt(row   numberOfRows * col)))
        Next
    Next
    Dim sb As New System.Text.StringBuilder()
    For i = 0 To words.Count() - 1
        sb.Append(words(i).Replace("|", " "))
        If (i <> words.Count() - 1) Then
            sb.Append(If((i   1) Mod numberOfColumns = 0, Environment.NewLine, vbTab))
        End If
    Next
    Return sb.ToString()
End Function

Simply pass your ocr output string through it. Here it is called in your code

Private Async Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
    Dim softwareBmp As Windows.Graphics.Imaging.SoftwareBitmap
    Using bmp As Bitmap = New Bitmap(PictureBox1.Width, PictureBox1.Height)
        Using g As Graphics = Graphics.FromImage(bmp)
            Dim pt As Point = Me.PointToScreen(New Point(PictureBox1.Left, PictureBox1.Top))
            g.CopyFromScreen(pt.X, pt.Y, 0, 0, bmp.Size, CopyPixelOperation.SourceCopy)
            Using memStream = New Windows.Storage.Streams.InMemoryRandomAccessStream()
                bmp.Save(memStream.AsStream(), System.Drawing.Imaging.ImageFormat.Bmp)
                Dim decoder As Windows.Graphics.Imaging.BitmapDecoder = Await Windows.Graphics.Imaging.BitmapDecoder.CreateAsync(memStream)
                softwareBmp = Await decoder.GetSoftwareBitmapAsync()
            End Using
        End Using
    End Using
    Dim ocrEng = OcrEngine.TryCreateFromLanguage(New Windows.Globalization.Language("en-US"))
    Dim languages As IReadOnlyList(Of Windows.Globalization.Language) = ocrEng.AvailableRecognizerLanguages
    For Each language In languages
        Console.WriteLine(language.LanguageTag)
    Next
    Dim r = ocrEng.RecognizerLanguage
    Dim n = ocrEng.MaxImageDimension
    Dim ocrResult = Await ocrEng.RecognizeAsync(softwareBmp)
    RichTextBox1.Text = transpose(ocrResult.Text)
End Sub

I tested with this function

Private Sub Button1_Click(sender As Object, e As EventArgs) Handles Button1.Click
    Dim input = "0.00003599 0.00003599 104.1K KIBA 23.22M KIBA 3.74655900 USDT 835.89654200 USDT 0.0000% 0.0000%"
    Dim output = transpose(input)
End Sub

Input:

0.00003599 0.00003599 104.1K KIBA 23.22M KIBA 3.74655900 USDT 835.89654200 USDT 0.0000% 0.0000%

Output:

0.00003599 104.1K KIBA 3.74655900 USDT 0.0000%
0.00003599 23.22M KIBA 835.89654200 USDT 0.0000%

Note you need to fix your string to temporarily replace any sentence with multiple words by replacing the space with a pipe | so they are not split, and if you encounter more examples of this you can continue adding Replace according to the code. If the pipe turns out to be a valid character replace it with some other character you will never see.

Dim fixedInput = input.Replace(" KIBA", "|KIBA").Replace(" USDT", "|USDT")
...
sb.Append(words(i).Replace("|", " "))
