Seaborn to create two lineplots from different dataframes, reusing these plots in several chunks, an-CodePudding

From this

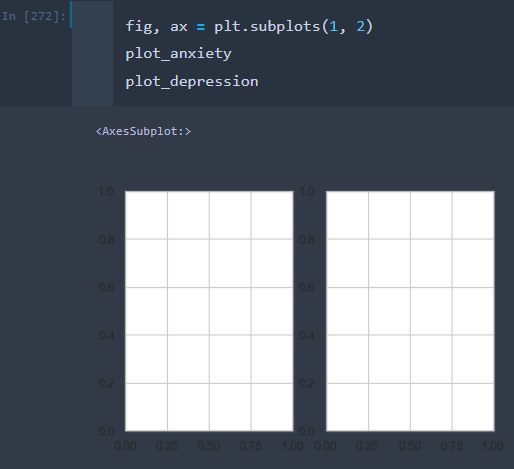

Any help is appreciated. If the full df is needed, I can edit this question.

CodePudding user response：

the idea is to have 1 figure with 2 subplots. so that call to plt.subplots() should only be done once, and your plots need to reference the output of that.

this is the kind of thing you need to do:

fig, ax = plt.subplots(1,2)  # only do this 1x

sns.lineplot(x="time",
             y="value",
             hue = "Group",
             ci=90, err_style='bars',
             data=df_long, ax=ax[0])  # use this as 1st plot in `fig`
ax[0].set(xlabel = "Time", ylabel = "Result")
ax[0].set_title('Trajectory of depression during the pandemic', size=20)

sns.lineplot(x="time",
             y="value",
             hue = "Group",
             ci=90, err_style='bars',
             data=df_long2, ax=ax[1])  # use this as 2nd plot in `fig`
ax[1].set(xlabel = "Time", ylabel = "Result")
ax[1].set_title('Trajectory of anxiety during the pandemic', size=20)

plt.show()
