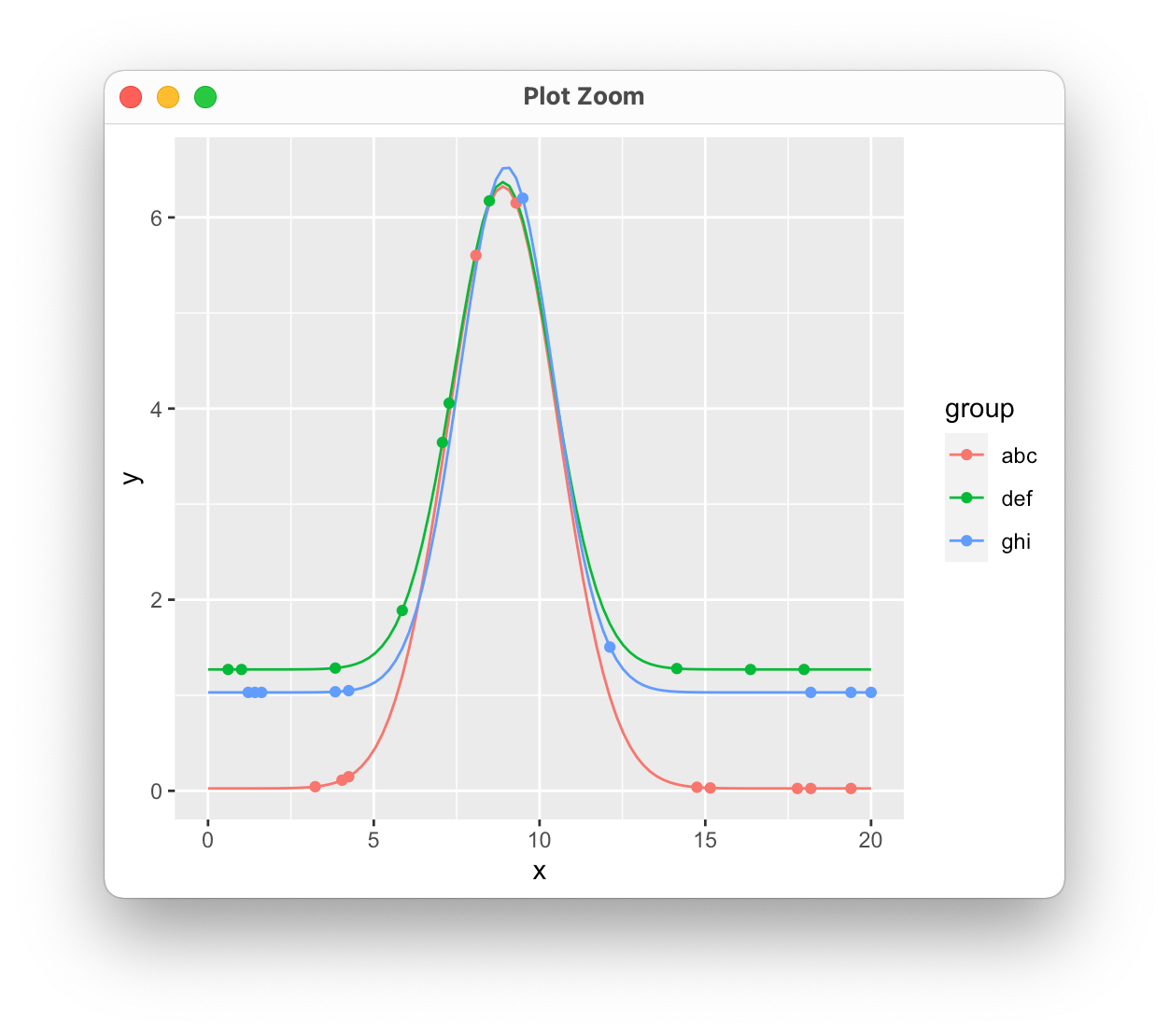

I did some non-linear regression and retrieved the fitting coefficients/parameters b0,b1,b2, and b3 in a data frame df. I would like to plot the same function with parameters from each row as an overlay with the initial data points (from df2) that I have used for fitting. All contained in one single graph. Any help is appreciated. Thank you in advance!
| group | b0 | b1 | b2 | b3 |
|---|---|---|---|---|
| abc | 6.3 | 8.9 | 1.66 | 0.025 |
| def | 5.1 | 8.9 | 1.48 | 1.27 |
| ghi | 5.5 | 9.0 | 1.41 | 1.03 |
group<-c("abc","def","ghi")
b0 <- c(6.3,5.1,5.5)
b1 <- c(8.9,8.9,9.0)
b2 <- c(1.66,1.48,1.41)
b3 <- c(0.025,1.27,1.03)
df <- data.frame(group,b0, b1, b2,b3)
I have tried to apply the solution from other posts but couldn't make it work.
The following just connects the points of all 3 functions without distinguishing between the group, as it does for geom_point()
