Just to give some context, there is an iOS app I'm building (in Xamarin) that requires the ability to fetch files (in an automatic way without having the user to navigate to the files and select them manually) that are stored on External Storage Devices (USB Sticks), and are connected (paired) to an iPhone/iPad.

Users connect a lighting cable to the iOS Devices, and plug their USB Sticks into this lighting cable. Here is an example of the cable that end users use to pair the USB Sticks with their iPhone/iPad, and the app then auto fetches these files from the USB Storage Devices.

The app then performs 2 functions:

1. It listens to notifications, for when a usb stick is paired with the iOS Device.
2. When it receives this notification, it then proceeds with querying the files on the USB Stick, and reads and processes the files. The app reads these files automatically and the user does not need to manually select these files

I've tried using External Accessory Framework, however that's only suitable for devices that you register with the MFi program.

CodePudding user response：

1. I thought you needed to jailbreak but it seems unlikely, a solution is possible for <iOS 12

• CFNotificationCenter's AddObserver seems to be usable for detecting when a device is connected using host attached and detached as shown here
• Or if you don’t submit it to the App Store, you can use this

According to the Apple Docs

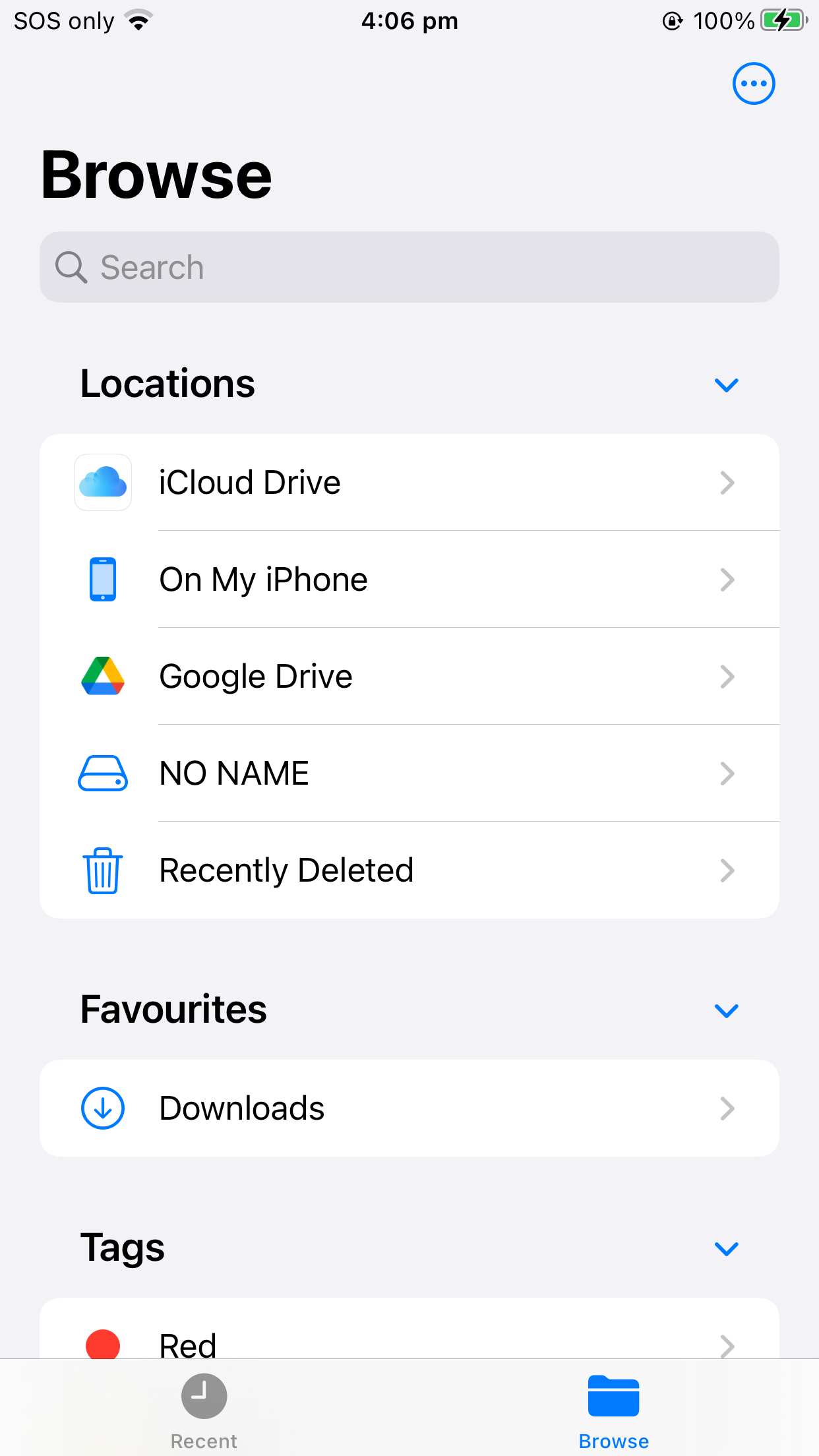

You can use the Files app and other supported apps to access files stored on external devices, such as USB drives and SD cards, connected to your iPhone.

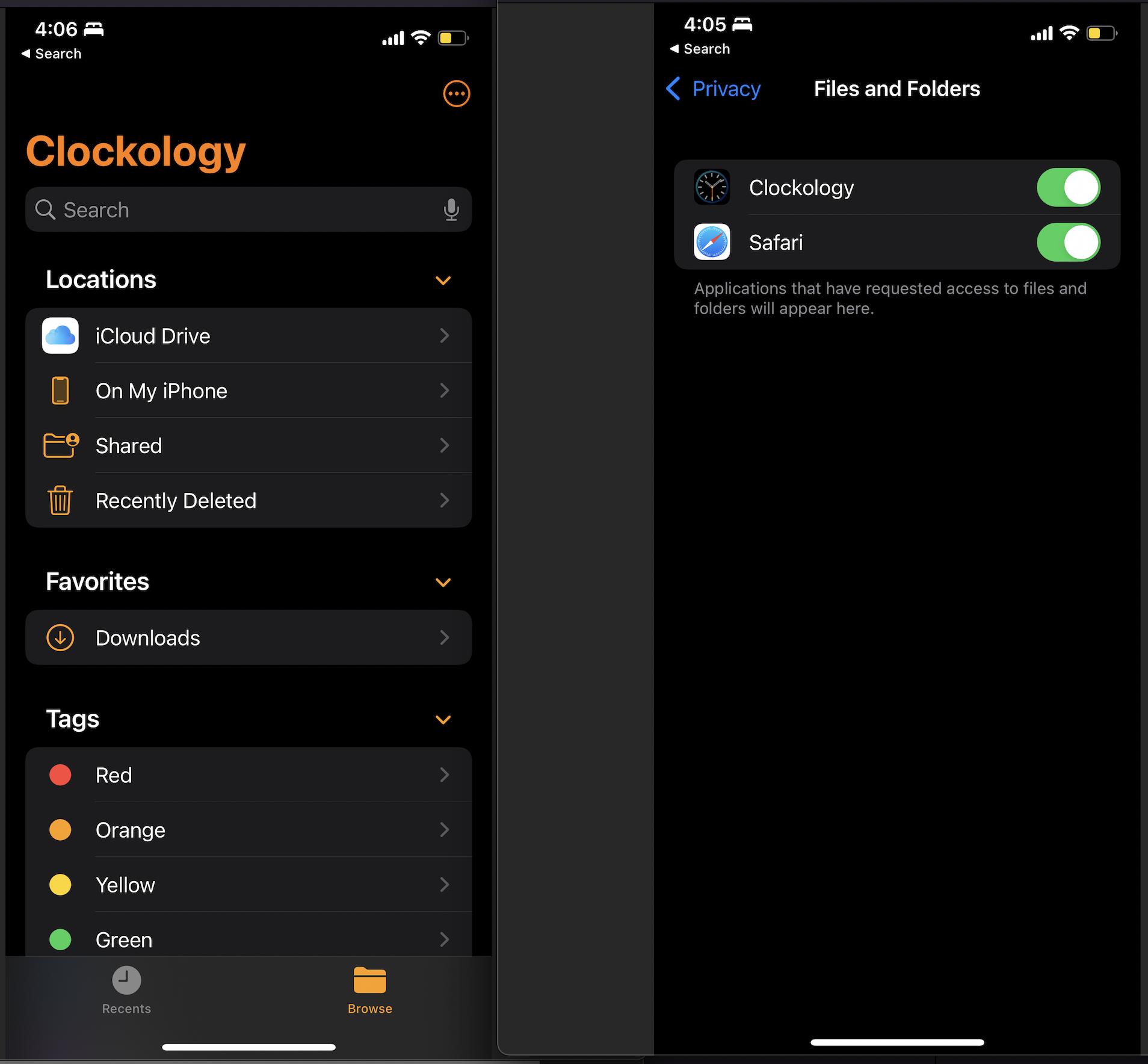

2. Essentially you have to make your a "supported app". I have downloaded a free app called "Clockology" that I recommend downloading and playing with, which allows users to see data within the app as you can see below:

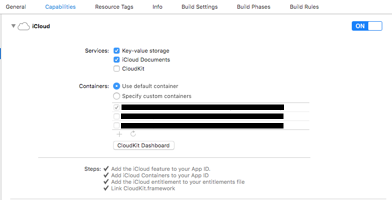

You generally use UIDocumentPickerViewController along with the right uttype to get the files from the Files apps or iCloud Drive, and you require activating the Key-value storage and iCloud Documents from iCloud entitlements capability. There's a lot of tutorials on UIDocumentPickerViewController usage, but you specifically want the capabilities that became available from iOS 13 onwards

This video from WWDC is the best example of getting to where you want. I also didn't find any 3rd party libraries that can help with this

——————-

Edit: If the app does not need to be distributed through TestFlight or the App Store, you can use IOKit and distribute through AppCenter, as long as you have the UDIDs of all the devices you need the app installed on (up to 100?)
