I have some data of longitudes and latitudes. My third variable is the penetration of the electric Vehicle in an municipality. Hence, I have sparse datas and I do not know the mapping from f(long,lat) -> MS_Year. I have the following datas

long              lat              MS_Year
<dbl>             <dbl>              <dbl>
 1 -66.0436169857389 50.3417726256247  0.0122
 2 -66.1704063635085 48.168838536499   0.0115
 3 -67.1376617834163 48.9202603958534  0.0136
 4 -67.474931686395  48.8025438021711  0.0108
 5 -67.5756670981796 48.5194066352801  0.0111
 6 -67.6273066949175 48.429540936994   0.0167

I have been able to do the 3D scatter plot without any problems.

scatterplot3d(Plot_Me_Tot_2019_grouped)

[enter image description here][1]

However, I've spent the whole day trying to understand how to do a surface. To my understanding, it is particularly hard, because I need to use a nonparametric estimator to show how complex the topology is. (The idea is to justify a nonparametric regression, which I've just learned about and never used; it might explain my total struggle).

Hence, I need to create a polynomial function f(long,lat) that has output MS_Year.

I Tried to applied it as follow :

library(predict3d)
library(rgl)

fit5=lm(MS_Year ~polym(long, lat,degree=5, raw=T),data=Plot_Me_Tot_2019_grouped)
predict3d(fit5,radius=0.05)

I did that, caused It combines this [polynomial regression][2], to this [3D plotting][3]. It's a total failure.

Did someone ever faced similar issues ?

I feel my problem is to create the linked function AKA the f(long,lat) and then with this, use expand.grid(long,lang) to create a surface and plot it.

One should understand that I do not posses a good understanding of the translation from the DF to the matrix format required for the 3D surface.

Thanks a lot for your time [1]:

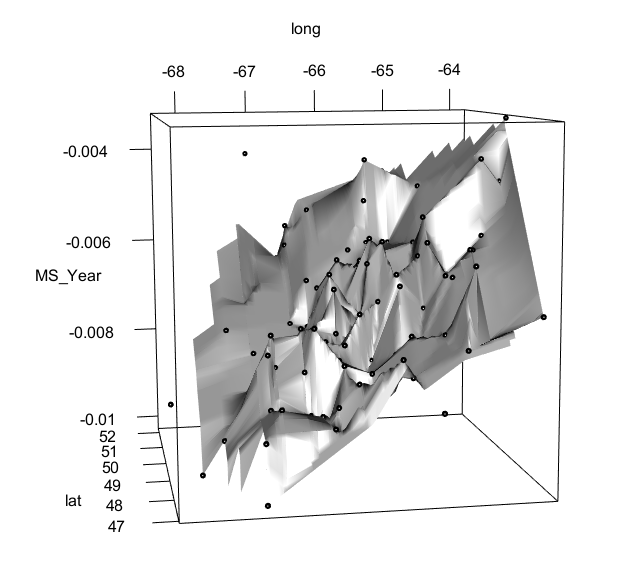

This did bilinear interpolation between the points; it ends up very rough. You'll probably prefer to fit some sort of surface to the points rather than interpolate them. This fits a local smooth:

library(mgcv)
#> Loading required package: nlme
#> This is mgcv 1.8-38. For overview type 'help("mgcv-package")'.
fit <- gam(MS_Year ~ s(long, lat), data = df)
xo <- sort(df$long)
yo <- sort(df$lat)
grid <- expand.grid(long = xo, lat = yo)
pred <- predict(fit, newdata = grid)
plot3d(df, type = "s", size = 0.5)
persp3d(xo, yo, matrix(pred, 100,100), col = "gray", add = TRUE)

^{Created on 2022-01-23 by the}

That's the same dataset, but the smoother managed to see that it's more or less linear in both long and lat. Your data probably won't end up with such a simple shape.
