How to free all memory blocks of a picture using quadree structure with different cases?-CodePudding

Few weeks ago, I was trying to implement a function to display a quadtree. My current problem is concerning the same work, so I pass you this link for all the context:

As you can see, there was no difference between display before and after memory.

And this is the simplest case, after that it should also work with composed images,e.g.

N BBNB B N NNB NBNNBN.

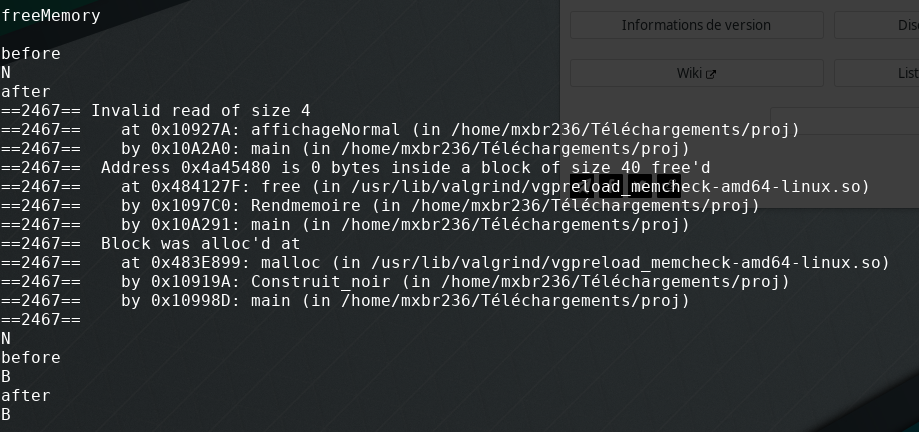

Someone advised me to use valgrind, telling me that for my program to work, there must be as many malloc() as free(). But I don't really know how to interpret the results (and if it is really useful).

the result (My variable names was not in english so, affichageNormal == normalDisplay, Rendmemoire == freeMemory and Construit_noir == Build_black)

P.S. I also have two function isWhite and isBlack to tell if a picture is black (no white elements) or white (no black element):

int isWhite(image myImage)
{
    if(myImage == NULL)
    {
        return 1;
    }
    else if(myImage->allBlack)
    {
        return 0;
    }
    else if(isWhite(myImage->son[0]) && isWhite(myImage->son[1]) && isWhite(myImage->son[2]) && isWhite(myImage->son[3]))
    {
        return 1;
    }
    return 0;
}


int isblack(image myImage)
{
    if(myImage == NULL)
    {
        return 0;
    }
    else if(myImage->allBlack)
    {
        return 1;
    }
    else if(isBlack(myImage->son[0]) && isBlack(myImage->son[1]) && isBlack(myImage->son[2]) && isBlack(myImage->son[3]))
    {
        return 1;
    }
    return 0;
}

It may be useful for the function.

Edit: In case of doubt I also add the code of normalDisplay :

void normalDisplay(image myImage)
{
    if(myImage == NULL)
    {
        printf("B");
    }
    else if(myImage->allBlack)
    {
        printf("N");
    }
    else
    {
        printf(" ");
        normalDisplay(myImage->son[0]);
        normalDispay(myImage->son[1]);
        normalDisplay(myImage->son[2]);
        normalDisplay(myImage->son[3]);
    }
}

CodePudding user response：

A robust way to free the memory from the quadtree is to make sure you feedback that a pointer no longer is pointing to valid memory. Since your current freeMemory only takes an block_image pointer, the function cannot convey this information back to the caller.

Better would be to change its interface to provide this facitily with another level of indirection.

void freeMemory(image *myImage) {
    if (myImage != NULL && *myImage != NULL) {
        int sonSize = sizeof((*myImage)->son) / sizeof((*myImage)->son[0]);
        while (sonSize) freeMemory(&(*myImage)->son[--sonSize]);
        free(*myImage);
        *myImage = NULL;
    }
}

On a side note, your original freeMemory does have a memory leak, but hoping you can figure that out.

This way, *myImage = NULL will convey this change to the caller. On the calling side it would look something like this:

puts("\nfreeMemory\n");
image white = Build_white();
image black = Build_black();
puts("before");
normalDisplay(black);
puts("");
puts("after");
freeMemory(&black);
normalDisplay(black);
puts("");
puts("before");
normalDisplay(white);
puts("\nafter");
freeMemory(&white);
normalDisplay(white);
puts("");

With this your normalDisplay will better provide you with an "image" of the situation.
