Right up-front, I'll apologize: This is a monster question, but I wanted to provide what I hope is all of the pertinent details.

I've got a QML-based GUI that I was tasked with taking over and developing from proof-of-concept to release. I believe the GUI is based on an example provided by QT (Automotive, maybe?). The GUI is being compiled for web-assembly (emscripten) and features a "back-end data-client" which communicates with our hardware controller via a socket and communicates with the GUI via signals. The GUI is accessed via web browser and communicates with the Data_Client via QWebSocket.

The GUI proof was initially created with a very "flat" hierarchy where every element is created and managed within a single ApplicationWindow object in a single "main" QML file. A Data_Client object is instantiated there and all the other visual elements are children (at various levels) of the ApplicationWindow:

ApplicationWindow {
id: appWindow

//various properties and stuff

Item {
    id: clientHolder
    property Data_Client client
}

ColumnLayout {
    id: mainLayout
    anchors.fill: parent
    layoutDirection: Qt.LeftToRight
//And so on...

The Data_Client C currently emits various signals in response to various things that happen in the controller application. In the main .QML the signals are handled as follows:

Connections {
        target: client
    onNew_status_port_data:
        {
            textStatusPort.text = qdata;
        }
        onNew_status_data_act_on:
        {
            imageStatusData.source = "../imagine-assets/ledGoodRim.png";
        }
    //and so on...

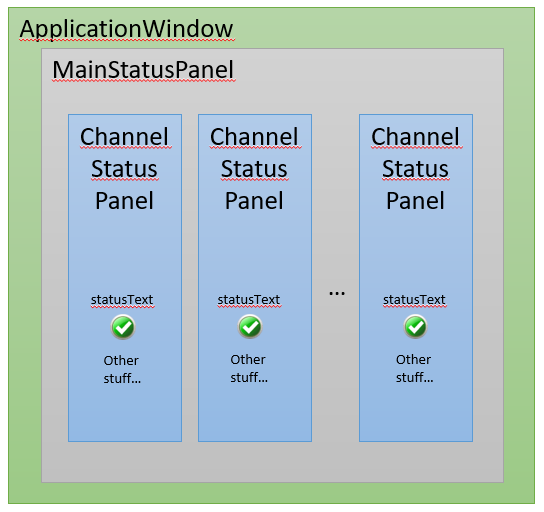

What I'm trying to do is create a ChannelStatusPanel object that holds the various status fields and handles the updates to those fields (text, images, etc.) when it receives information from the Data_Client backend. There are multiple instances of this ChannelStatusPanel contained in a MainStatusPanel which is made visible or not from the main ApplicationWindow:

Having said all of that (Phew!), I come finally to my question(s). What is the correct way to signal a specific instance of the ChannelStatusPanel object from the Data_Client with the various data items needed to drive changes to the visual elements of the ChannelStatusPanel?

I thought I was being clever by defining a ChannelStatusObject to hold the values:

Item {
    id: channelStatusObject

    property int channel
    property int enabled    //Using the EnabledState enum
    property string mode
    property int bitrate
    property int dataActivity   //Using the LedState enum
//and more...
    property int packetCount
}

In the ChannelStatusPanel.qml, I then created a ChannelStatusObject property and a slot to handle the property change:

property ChannelStatusObject statusObject

    onStatusObjectChanged: {
//..do the stuff

From the Data_Client C I will get the information from the controller application and determine which "channel" I need to update. As I see it, I need to be able to do the following things:

1. I need to determine which instance of ChannelStatusPanel I need to update. How do I intelligently get a reference to the instance I want to signal? Is that just accomplished through QObject::findChild()? Is there a better, faster, or smarter way?
2. In the Data_Client C , do I want to create an instance of ChannelStatusObject, set the various fields within it appropriately, and then set the ChannelStatusPanel instance's ChannelStatusObject property equal to the newly created ChannelStatusObject? Alternatively, is there a mechanism to get a reference to the Panel's ChannelStatusObject and set each of its properties (fields) to what I want? In C , something like this:

QQmlComponent component(&engine, "ChannelStatusObject.qml");
QObject *statObj= component.create();

QQmlProperty::write(statObj, "channel", 1)
QQmlProperty::write(statObj, "bitrate", 5000);
QQmlProperty::write(statObj, "enabled", 0);

//Then something like using the pointer from #1, above, to set the Panel property
//QObject *channelPanel;
QQmlProperty::write(channelPanel, "statusObject", statObj)

Is there some other, more accepted or conventional paradigm for doing this? Is this too convoluted?

CodePudding user response：

I would go about this using Qt's model-view-controller (delegate) paradigm. That is, your C code should expose some list-like Q_PROPERTY of channel status objects, which in turn expose their own data as properties. This can be done using a QQmlListProperty, as demonstrated here.

However, if the list itself is controlled from C code -- that is, the QML code does not need to directly edit the model, but only control which ones are shown in the view and possibly modify existing elements -- then it can be something simpler like a QList of QObject-derived pointers. As long as you do emit a signal when changing the list, this should be fine:

class ChannelStatus : public QObject
{
    Q_OBJECT
public:
    Q_PROPERTY(int channel READ channel CONSTANT)
    Q_PROPERTY(int enabled READ enabled WRITE setEnabled NOTIFY enabledChanged)
    // etc.
};

class Data_Client : public QObject
{
    Q_OBJECT
public:
    Q_PROPERTY(QList<ChannelStatus*> statusList READ statusList NOTIFY statusListChanged)
    // ...
};

You then use this property of the client on the QML side as the model property of a suitable QML component, such as a ListView or a Repeater inside a container like RowLayout. For example:

ListView {
    model: client.statusList
    delegate: Column {
        Label { text: modelData.channel }
        Image { source: modelData.enabled ? "foo" : "bar" }
        // ...
    }
}

As you can see, the model data is implicitly attached to the delegate components. Any NOTIFYable properties will have their values automatically updated.

CodePudding user response：

Below is how I've setup my application.

Front-end is in QML. Back-end is in Qt C . H/W Controller application is in C.

In Qt C back-end, I have QObject derived database and databasePoint classes.
database object holds a QMap of databasePoint objects.
Each databasePoint object has a unique point name, which is used as an identifier.

database object is created in main.cpp and exposed to QML as a context property.
database class has a method to return a pointer to databasePoint object.
In QML, this method is used to create databasePoint objects.
When this method is called, a databasePoint object is created and added to QMap if it doesn't already exist.

databasePoint class has read-write value properties.
These properties are used for communication between UI, back-end and controller.
In a timer, latest value is polled from controller periodically, whenever there's a change, the value property is updated.
When the value property is updated from UI, the value is written to controller.

class database : public QObject
{
public slots:
    databasePoint* getDbpointObject(QString pointName);
private:
    QMap<QString, databasePoint*> dbPointMap;
};

class databasePoint : public QObject
{
    Q_PROPERTY(QVariant value READ value WRITE setValue NOTIFY valueChanged)
public:
    QVariant value(void);
    void setValue(QVariant value);
    QVariant my_value;
signals:
    void valueChanged();
};

DatabasePointComponent.qml:
Item {
    required property string pointName
    property var pointObj: database.getDbpointObject(pointName)
}

MyScreen.qml:
    DatabasePointComponent{
        id: dbTEMP
        pointName: "TEMP"
    }
    TextInput {
        text: dbTEMP.pointObj.value
        onAccepted: dbTEMP.pointObj.value = text
    }
