How to colorize individual rings in polar chart background in chart.js/ng2-charts?-CodePudding

I am trying to change the color of individual polar chart rings using chart.js version and ng2-charts in Angular but in the documentation of particular versions, I haven't found anything related to it and neither searching the solution on web.

"chart.js": "^2.8.0",
"ng2-charts": "^2.3.0",

Code:

  public polarAreaChartLabels: Label[] = [];

  public polarAreaChartData: SingleDataSet = [];

  public polarAreaLegend = true;

  myColors = [{ backgroundColor: ["#cb4b4b", "#edc240", "#afd8f8"] }];

  public polarAreaChartType: ChartType = "polarArea";

  public polarAreaChartOptions: ChartOptions = {
    plugins: {
      datalabels: {
         color: '#000000',
         anchor: 'end',
         align: 'end',
         padding: 50,
         display: true,
         font: {
           weight: 'bolder'
         },
         formatter: function(value, ctx) {
          return `${ctx.chart.data.labels[ctx.dataIndex]} - ${value} %`;
       },
      },
    },
    scale: {
      ticks: {
          beginAtZero: true,
          max: 100,
          min: 0,
          stepSize: 10
      }
    }
  };

  public ChartPlugins = [pluginDataLabels];

HTML:

            <canvas id="polar-chart" baseChart height="40vh" width="120vw"
                [data]="polarAreaChartData"
                [labels]="polarAreaChartLabels"
                [legend]="polarAreaLegend"
                [plugins]="ChartPlugins"
                [options]="polarAreaChartOptions"
                [chartType]="polarAreaChartType"
                [colors]="myColors">
            </canvas>

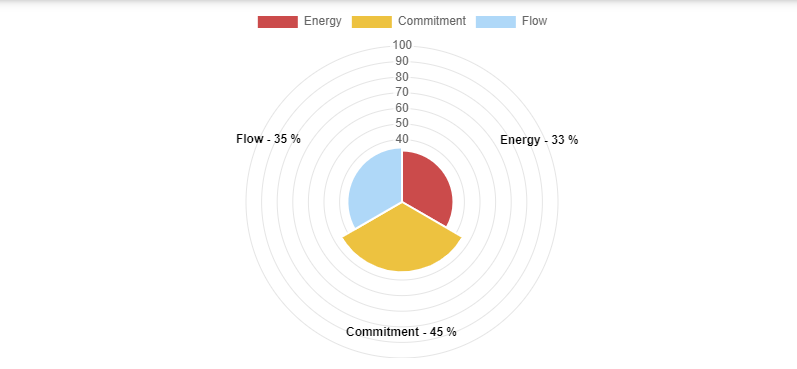

Current Output

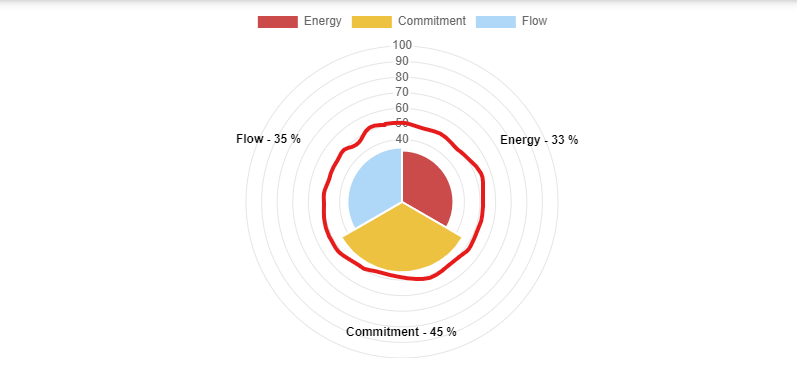

Desired Output

Is there any plugin or solution available for this? Any help would be much appriciated.

CodePudding user response：

This can be done by defining scale.gridLines.color option as an array of colors.

options: {
  scale: {
    gridLines: {
      color: [...]
    }
  }
}

Please take a look at the below runnable code and see how it works.

window.myChart = new Chart('canvas', {
  type: 'polarArea',
  data: {
    datasets: [{
      label: 'My Dataset',
      data: [4, 5, 4, 2, 6],
      backgroundColor: ['rgba(255, 159, 64, 0.2)', 'rgba(255, 205, 86, 0.2)', 'rgba(75, 192, 192, 0.2)', 'rgba(54, 162, 235, 0.2)', 'rgba(153, 102, 255, 0.2)']
    }]
  },
  options: {
    scale: {
      gridLines: {
        color: ['black', 'orange', 'yellow', 'green', 'blue']
      }
    }
  }
});

<script src="https://cdnjs.cloudflare.com/ajax/libs/Chart.js/2.8.0/Chart.min.js"></script>
<canvas id="canvas"></canvas>
