Trying to plot one variable, for all existing coordinates into a single line plot. Let's assume a simple example set of data:

import numpy as np
import pandas as pd
import xarray as xr
import matplotlib.pyplot as plt

np.random.seed(0)

temperature = 15   8 * np.random.randn(2, 2, 20)

precipitation = 10 * np.random.rand(2, 2, 20)

coord1 = [0, 1]

coord2 = [2, 3]

time = pd.date_range("2014-09-06", periods=20)

reference_time = pd.Timestamp("2014-09-05")


ds0 = xr.Dataset(

    data_vars=dict(temperature=(["c1", "c2", "time"], temperature),

                    precipitation=(["c1", "c2", "time"], precipitation)),

    coords=dict(c1=("c1", coord1),

                c2=("c2", coord2),

                time=time,

                reference_time=reference_time),

    attrs=dict(description="Weather related data."))

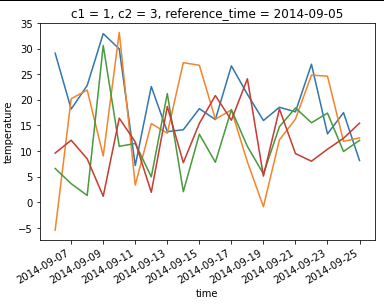

Target plot (sans the title):

I can do this with the following code:

fig, ax = plt.subplots()

ds0.temperature.sel(c1=0,c2=2).plot(ax=ax)
ds0.temperature.sel(c1=0,c2=3).plot(ax=ax)
ds0.temperature.sel(c1=1,c2=2).plot(ax=ax)
ds0.temperature.sel(c1=1,c2=3).plot(ax=ax)

I would expect to be able to do this with a syntax of

ds0.temperature.plot()

But this gives me a histogram plot.

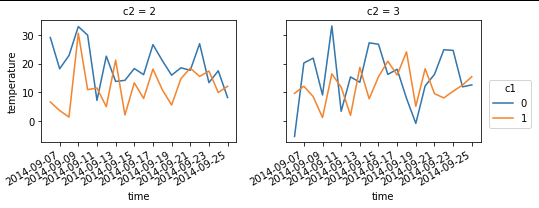

I can assign hue or call subplots in columns

ds0.temperature.plot(hue='c1',col='c2')

But I would like to simply have all data in a single plot. Random colors or color coded according to a coordinate would be a welcome addition.

How can I get the target plot without calling all coordinates explicitly?

CodePudding user response：

see the API docs for

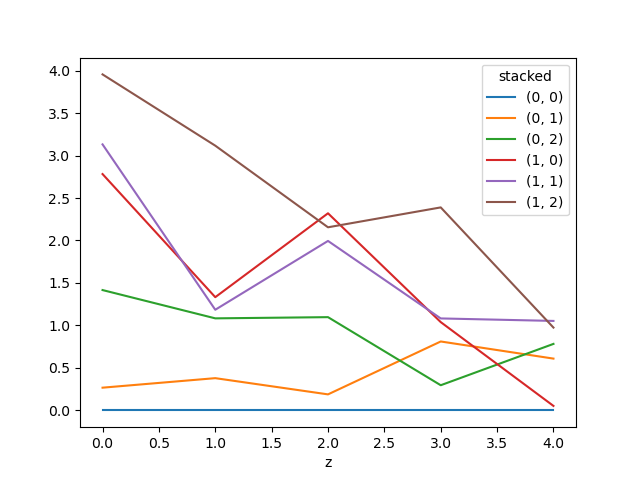

This isn't awesome, but it does create lines along multiple dimensions in one command. Or you can loop through the dimensions and style it yourself.

CodePudding user response：

ds0.temperature.stack(stacked=("c1", "c2")).plot.line(x='time')
