LCI.materials <- read.csv('LCImaterials.csv')
LCA.bridge <- function(length, width, height, thickness, girder.Option, deck.Option, materials) {
prefab.girder.Section <- 0.78
steel.girders.unitWeight <- 317 #the weight for HEM800 steel profile
asphalt.Q <- length * width * thickness
materials.split <- split(materials, materials$scope)
# calculate the volume of the deck based on different materials strategies
if(deck.Option == "RC") {
deck.volume <- length * width * height
interventions.deck <- 2.5
} else if (deck.Option == "PRC") {
deck.volume <- 0.5 * length * width * height
interventions.deck <- 2
} else if (deck.Option == "FRP") {
deck.volume <- 0.2 * length * width * height
interventions.deck <- 1
}
#girder options
if (girder.Option == "PRC") {
#get the numbers of girders
n <-round(width / 3.75, 0)
interventions.girders <- 2
#get the volume of the concrete for the prefab girders
girders.V <- n * prefab.girder.Section * length
} else if (girder.Option == "steel") {
n <- round(width / 3, 0)
girders.V <- n * steel.girders.unitWeight * length
interventions.girders <- 2
} else if (girder.Option == "none") {
n <- 0
girders.V <- 0
interventions.girders <- 0
}
asphalt <- mutate(materials.split$asphalt, bridge.Q = asphalt.Q, interventions = 12)
deck <- mutate(materials.split[[deck.Option]], bridge.Q = deck.volume, interventions = interventions.deck)
if (!is.null(materials.split[[girder.Option]])) {
girders <- mutate(materials.split[[girder.Option]], bridge.Q = girders.V, interventions = interventions.girders)
LCA.matrix <- rbind(deck, girders, asphalt)
} else {
LCA.matrix <- rbind(deck, asphalt)
}
LCA.matrix <- mutate(LCA.matrix, TotalMaterials.Q = **strong text**quantities * bridge.Q / 1000,
materials.LC = TotalMaterials.Q * interventions,
Energy.LC = materials.LC * energy,
CO2.LC = materials.LC * CO2 * 1000,
NOx.LC = materials.LC * NOx * 1000,
SO2.LC = materials.LC * SO2 * 1000)
LCA.results <- list(Energy = sum(LCA.matrix$Energy.LC),
CO2 = sum(LCA.matrix$CO2.LC),
NOx = sum(LCA.matrix$NOx.LC),
SO2 = sum(LCA.matrix$SO2.LC))
return(LCA.results)
}
b.length <- 16 # units: m
b.width <- 15 #units m
bd.depth <- 0.25 #units m
asphalt.tk <- 0.12 #units m
girder.Options <- c("PRC", "steel", "none")
deck.options <- c("RC", "PRC", "FRP")
Option1 <- LCA.bridge(b.length, b.width, bd.depth, asphalt.tk, girder.Options[1], deck.options[1], LCI.materials)
Hello people. This R function is completely working without any problem. It is reading a small table from excel. I am asking this. How can this function understand and read the quantities column well? I made it bold. I am doing a similar thing to this function but I am always getting an error:
Error in LCA.bridge(b.length, b.width, b.height, b.thickness, column.Options
I want to understand how the first code can recognize/understand/find the "quantities" from small table? How can we read a column from a CSV file in R by using dplyr and mutate? Could you please explain to me? Thanks in advance.
CodePudding user response：
The first line of your code reads the .csv file and transfer it to data.frame object named LCI.materials:
LCI.materials <- read.csv('LCImaterials.csv')
For testing ppurposes I have created such file with 2 lines and loaded it. If we would like to see what's inside, head() function helps:
head(LCI.materials)

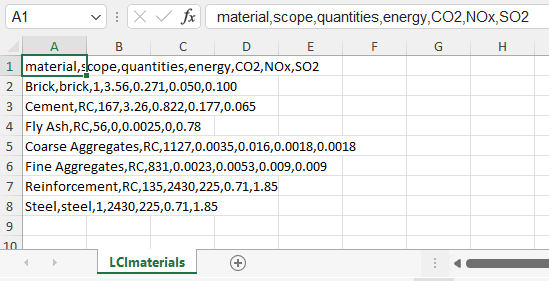

material scope quantities energy CO2 NOx SO2
1 Brick brick 1 3.56 0.271 0.050 0.100
2 Cement RC 167 3.26 0.822 0.177 0.065
As you see, the columns corresponds to these, you have in .csv file, including quantities.
The last parameter of LCA.bridge function is named materials, and when you call this function in the last line of your code:
Option1 <- LCA.bridge(b.length, b.width, bd.depth, asphalt.tk, girder.Options[1], deck.options[1], LCI.materials)
you substitute materials with the LCI.materials data frame. Internally, the functions splits the LCI.materials by the scope:
materials.split <- split(materials, materials$scope)
There is another observation: your LCA.bridge function looks for asphalt in the materials data frame:
asphalt <-
mutate(materials.split$asphalt,
bridge.Q = asphalt.Q,
interventions = 12)
However in your example (in small table) there is no such material. Might that be an issue?
Grzegorz
CodePudding user response：
LCI.materials <- read.csv('LCImaterials.csv')
LCA.bridge <- function(length, width, height, thickness, column.Option, abutment.Option, materials) {
steel.unitWeight <- 317 #the weight for HEM800 steel profile
materials.split <- split(materials, materials$scope)
#column options
if(column.Option == "RC") {
column.volume <- length * width * height
interventions.column <- 2
} else if (column.Option == "steel") {
column.volume <- length * width * height * thickness * steel.unitWeight
interventions.column <- 3
}
#abutment options
if (abutment.Option == "RC") {
abutment.volume <- height * length * 5 # 2 * height * length * 5 / 2
interventions.abutment <- 2
} else if (abutment.Option == "brick") {
abutment.volume <- height * length * 5 # 2 * height * length * 5 / 2
interventions.abutment <- 2
}
column <- dplyr::mutate(materials.split[[column.Option]], bridge.Q = column.volume, interventions = interventions.column)
abutment <- dplyr::mutate(materials.split[[abutment.Option]], bridge.Q = abutment.volume, interventions = interventions.abutment)
LCA.matrix <- rbind(column, abutment)
quantities <- split(materials, materials$quantities)
LCA.matrix <- c(LCA.matrix, TotalMaterials.Q = quantities * bridge.Q / 1000,
materials.LC = TotalMaterials.Q * interventions,
Energy.LC = materials.LC * energy,
CO2.LC = materials.LC * CO2 * 1000,
NOx.LC = materials.LC * NOx * 1000,
SO2.LC = materials.LC * SO2 * 1000)
LCA.results <- list(Energy = sum(LCA.matrix$Energy.LC),
CO2 = sum(LCA.matrix$CO2.LC),
NOx = sum(LCA.matrix$NOx.LC),
SO2 = sum(LCA.matrix$SO2.LC))
return(LCA.results)
}
b.length <- 5
b.height <- 5
b.width <- 2
b.thickness <- 0.05
column.Options <- c("RC","steel")
abutment.Options <- c("brick","RC")
Option1 <- LCA.bridge(b.length, b.width, b.height, b.thickness, column.Options[1], abutment.Options[1], LCI.materials)
Thanks for the answer. it was useful. Actually, this is my code and the previous small table for this code. So there is no problem with asphalt. Thanks to your idea I added this line. and it worked.
quantities <- split(materials, materials$quantities)
but now it can find bridge.Q. Are not these enough to make R find bridge.Q? I wrote bridge.Q = column.volume in these mutates. What should I do @Grzegorz Sapijaszko?
column <- dplyr::mutate(materials.split[[column.Option]], bridge.Q = column.volume, interventions = interventions.column)
abutment <- dplyr::mutate(materials.split[[abutment.Option]], bridge.Q = abutment.volume, interventions = interventions.abutment)
