Matplotlib subplots are all the same size ... how to set them up so subplots scale including the xti-CodePudding

Here's some example code:

from matplotlib import pyplot as plt

plt.subplot(221)
plt.bar(range(3),[34, 37, 16]) # some random data
plt.xticks(range(3),"Jan,Feb,Mar".split(','))

plt.subplot(222)
plt.bar(range(3),[34, 37, 16])
plt.xticks(range(3),"January,February,March".split(','), rotation=90)

plt.subplot(223)
plt.bar(range(3),[34, 37, 16])
plt.xticks(range(3),"Jan,Feb,Mar".split(','))

plt.tight_layout()
plt.show()

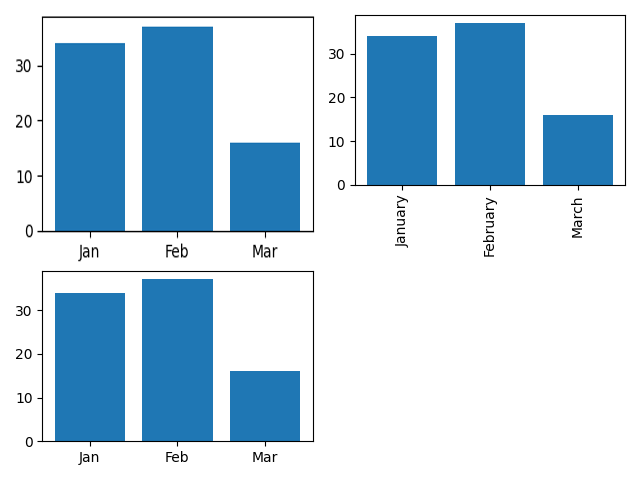

Which results in this, with all the plot heights equal size:

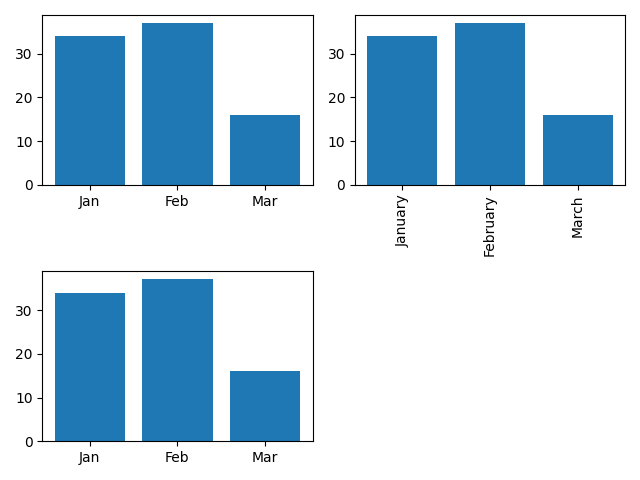

But I'd like it to look like this, with the entire 'subfigure' equal size:

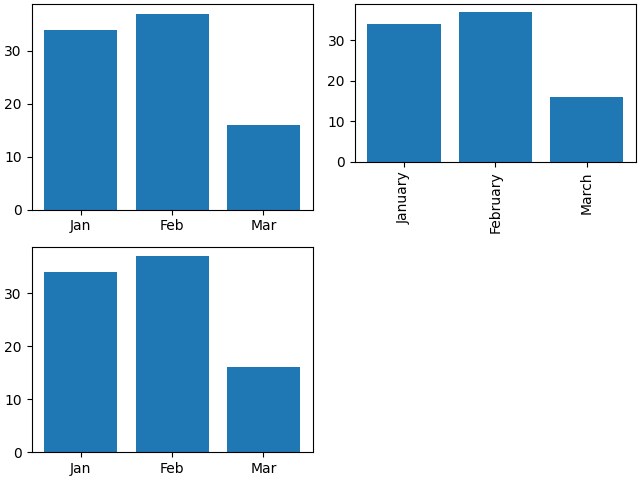

CodePudding user response：

Using subfigures (
