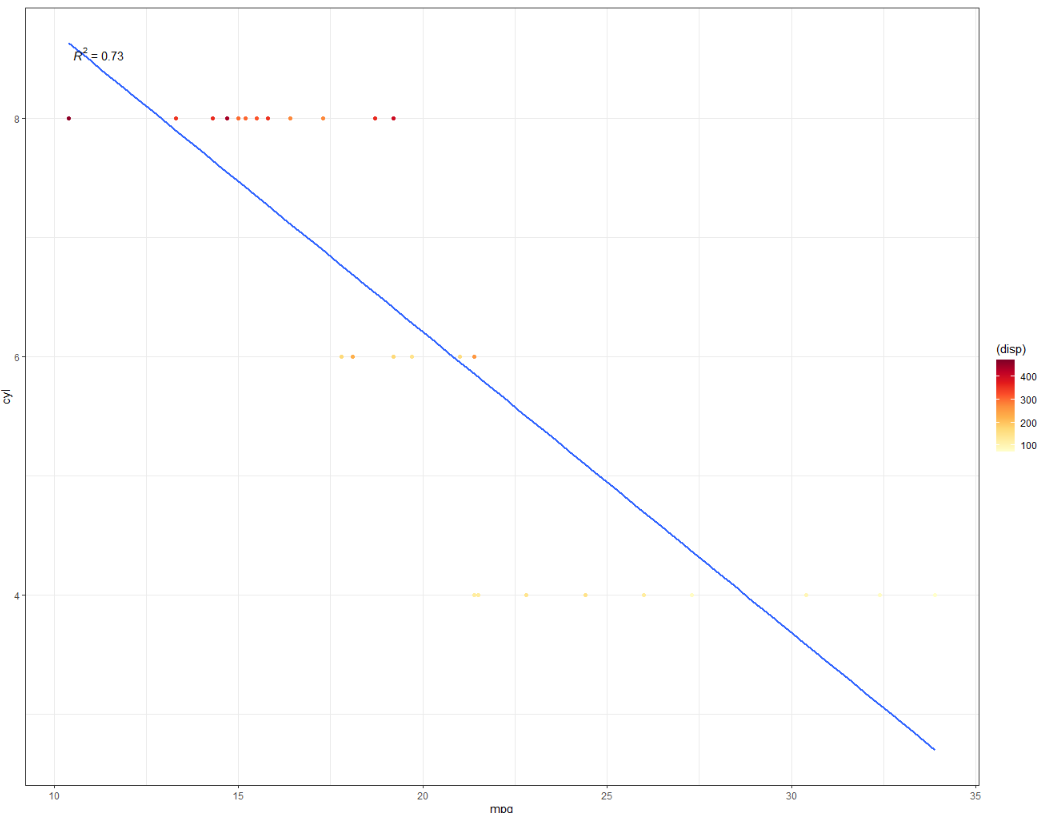

I want to create a colored scatter plot and display a (multiple) linear regression. At the moment my code looks like this (using the cars data-set as an example)

my.formula <- y ~ x
ggplot(mtcars, aes(x=mpg, y=cyl, color=(disp)))
  geom_point()
  geom_smooth(method=lm, se=FALSE)
  ggpmisc::stat_poly_eq(formula = my.formula,
                        aes(label = paste(..rr.label.., sep = "~~~")),
                        parse = TRUE)
  scale_colour_gradientn(colours=RColorBrewer::brewer.pal(9,"YlOrRd"))
  theme_bw()

However, I would like to include also the information from the second (coloured) information of the scatter plot in the regression model. Does anybody have a suggestion on how to achieve this?

The idea would be to use a formula like: my.formula <- y ~ x1 x2 where x1 is mpg and x2 is disp. and to create e.g. a plot with the regression and the corresponding data if possible in 2D (also subplots would be possible to see all information)

CodePudding user response：

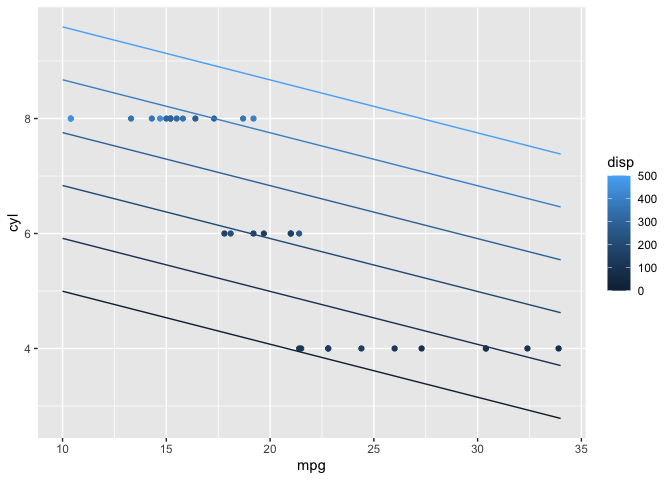

You can manually create the plot using stat_function and the fit from your model, well described in this
