Move the Canary Islands and zoom in on the peninsula on a ggplot map with r and sf-CodePudding

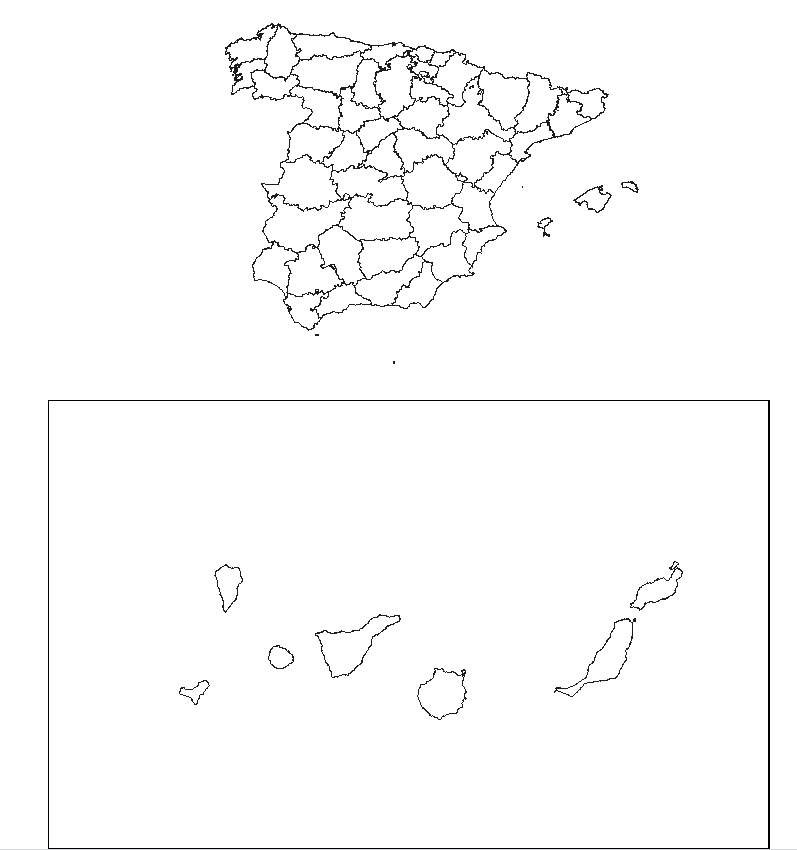

I have tried to move the geometries of the Canary Islands towards the peninsula so that the map of Spain is seen on a larger scale to represent information by provinces.

I have started from the shapefile of this ESRI location

CodePudding user response：

I have managed to solve from a different source,

http://centrodedescargas.cnig.es/CentroDescargas/index.jsp

Following the links: Reference geographic information - Municipal, provincial and autonomous limits - Download: lineas_limite.zip.

The path in the uncompressed folder: SIGLIM_Publico_INSPIRE:

SHP_ETRS89 - recintos_provinciales_inspire_peninbal_etrs89 - recintos_provinciales_inspire_peninbal_etrs89.shp
SHP_WGS84 - recintos_provinciales_inspire_canarias_wgs84 - recintos_provinciales_inspire_canarias_wgs84.shp

The code:


geopropenínsula <- st_read("ruta/recintos_provinciales_inspire_peninbal_etrs89.shp")
geoprocanarias <- st_read("ruta/recintos_provinciales_inspire_canarias_wgs84.shp")

crs <- st_crs(geopropenínsula)

geoprocanariasco <- geoprocanarias %>%
 st_transform(crs) %>%
 st_geometry()
geoprocanariasco <- geoprocanariasco   c(5, 7)

geoprocanarias <- geoprocanarias %>%
 st_set_geometry(geoprocanariasco) %>%
 st_set_crs(crs)

geoprovincias <- rbind(geopropenínsula, geoprocanarias)
geoprovincias$CódigoProvincia <- substring(geoprovincias$NATCODE, 5, 6)

geoprovincias <- geoprovincias[!geoprovincias$CódigoProvincia=="54",]

geosprovincias <- ms_simplify(geoprovincias, keep = 0.00050, weighting = 6)

mapapro <- geosprovincias %>%
 ggplot()
  geom_sf()
  theme_void()
